Replacing the tool magazine
inserts
When tool magazine inserts are worn, they should be
replaced. New inserts are delivered without holes for
the tools. The holes must be drilled into the inserts
with the machine.
Your machine comes with tool magazine inserts
n
as spare parts and with the drill tool.
Additional inserts and drill tools are available via
n
customer service.
The documentation for the manufacturing soft-
ware contains step-by-step instructions for
drilling the holes into the inserts. Below you
find a description of how to replace the tool
magazine insert in the machine.
You can replace tool magazine inserts as follows:
1.
Have the spare tool magazine insert readily avail-
able.
2.
Open the working chamber door.
3.
Pull the tool magazine out of the working cham-
ber.
4.
Remove all tools from the tool magazine.
5.
Unscrew the 4 screws on the bottom side of the
tool magazine ( Fig. 90 – see below ,

, step 1).
see below

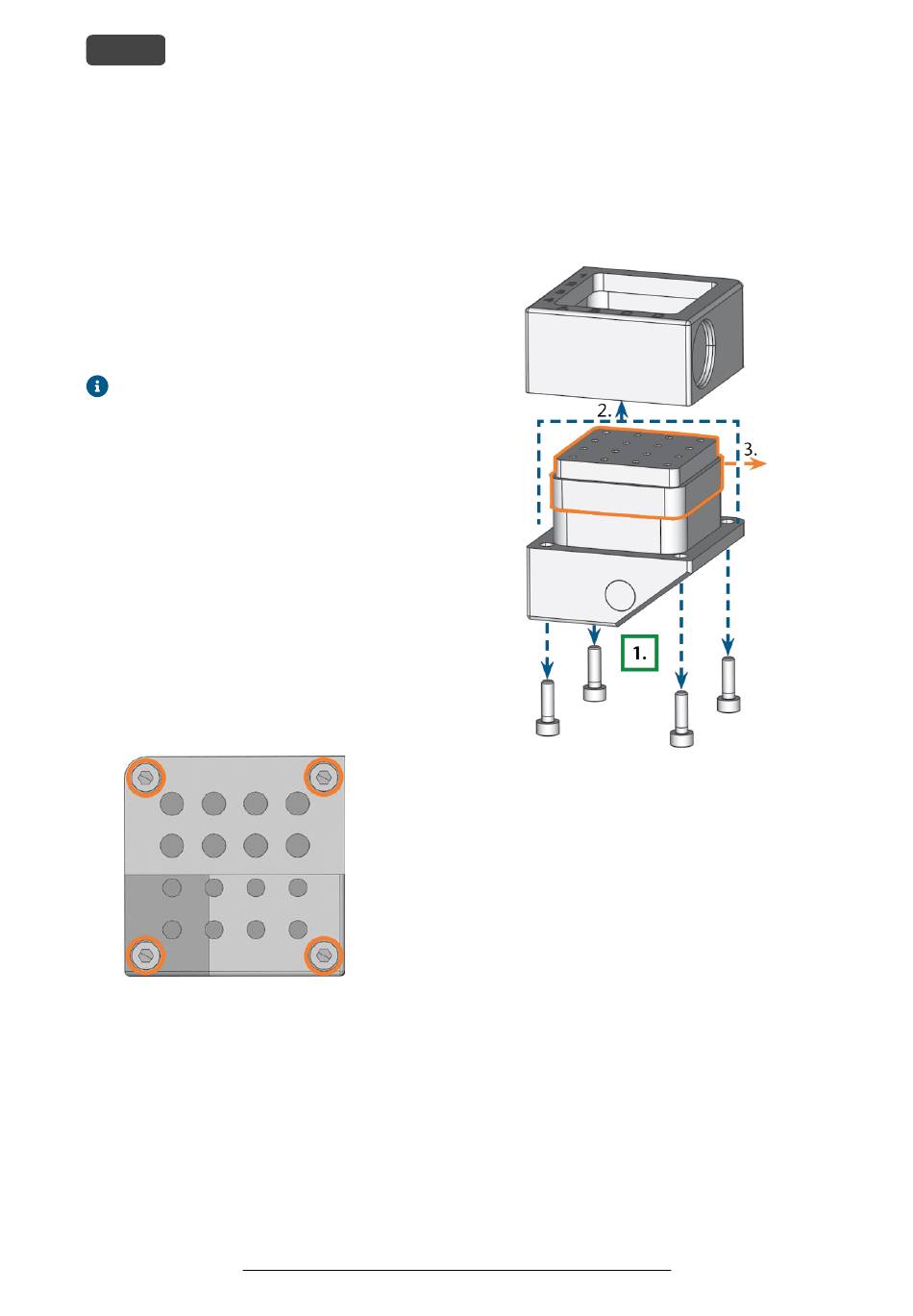

F . 90 – T 4
IG HE SCREWS ON THE BOTTOM SIDE OF THE TOOL
(
MAGAZINE MARKED ORANGE
6.
Lift the cover off the magazine (
, step 2).
below
7.
Remove the existing tool magazine insert (
91 – see below , step 3) and replace it with a new
one.
8.
Put the cover back onto the tool magazine and
screw it down.
Fig. 91 –

)
Fig. 91 – see

Fig.

Original Operating Instructions: R5
Version: 5/10/2019
R5 – Maintenance and do-it-yourself
9.
Remount the tool magazine in the working cham-
ber.
10.
Follow the instructions in the documentation for
DentalCNC and drill the tool positions using the
provided drill bit.
F . 91 – D
IG ISASSEMBLING THE TOOL MAGAZINE AND REMOVING
THE INSERT
