R5 – Operation: Preparing jobs

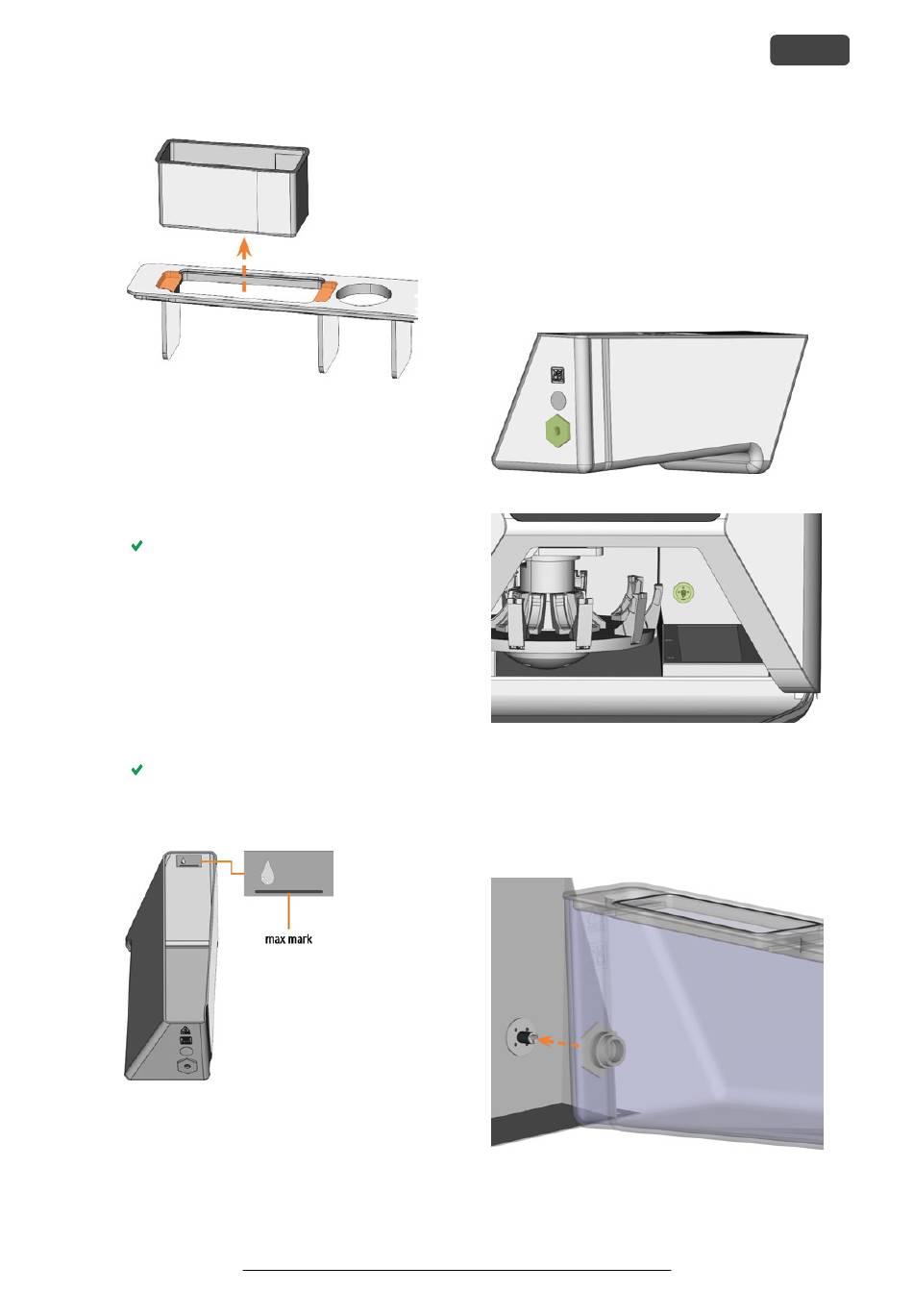

F . 36 – R
IG EMOVING THE STRAINER BASKET
SURFACES COLORED ORANGE
c.
Tap out the strainer basket into the col-
lecting container. You can use water or com-
pressed air to further clean the strainer
basket.
The strainer basket is completely void of
machining residues.
d.
Rinse the filter in the cooling liquid tank
under running water.
e.
Thoroughly clean the tank with the cleaning
brush. Pour the cleaning water into the col-
lecting container.
f.
If you have used a cleaning agent, ensure
that no residues of it remain in the cooling
liquid tank.
The cooling liquid tank is completely void of
liquid, machining and cleaning agent
residues.
F . 37 – T
IG HE MAX MARK ON THE LABEL INSIDE THE TANK
8.
Fill the cooling liquid tank with cooling liquid until
max
it reaches the mark.
(
RECESSED
)
Original Operating Instructions: R5
Version: 5/10/2019
9.
When processing titanium blanks: Add the cool-
ing lubricant Tec Liquid Pro to the cooling liquid.
The mixing ratio is indicated on the bottle label.
10.
Insert the strainer basket into the tank cover and
put the cover onto the tank.
11.
Remove dirt and foreign bodies from the coup-
ling of the cooling liquid tank and the counterpart
in the machine.
F . 38 – T
IG HE COUPLING OF THE TANK AND ITS COUNTERPART
( )
COLORED GREEN
12.
Push the cooling liquid tank into the multi-pur-
pose compartment until the tank is properly
attached to the machine.
F . 39 – I
IG NSERTING THE COOLING LIQUID TANK INTO THE
(
COMPARTMENT SIMPLIFIED SCHEMA
EN 35
)
