Sound emission
The actual sound emission of the machine varies
heavily depending on the manufacturing material and
the machining conditions.
If the machine is exceptionally loud, check the fol-
lowing operating conditions:
Cleanliness of the blank holder
n
Condition of the tools
n
Quality of the blanks
n
If loud noise cannot be avoided, wear ear pro-
tection during machining.
Sound measurement
Measuring conditions:
Processed material: IPS e.max (block, C14)
n
Tool status: new
n
Measured value: sound pressure level (distance:
n
1 m)
Measurement according to ISO 3746, survey
n
method 3
Established sound emission:
Operating condition
Processing
All other operating condi-
tions (tool change, move-
ment of the axes etc.)
Location of the identification plate
& serial number
The identification plate of the machine contains identi-
fying information such as the serial number. You can
find the identification plate and machine serial
number at the following location:
machine – on page 10
A-weighted
A-weighted
sound
sound pres-
power
sure level
level
69.8 dB(A) 80.6 db(A)
<70 dB(A) –
Rear side of the

Original Operating Instructions: R5
Version: 5/10/2019

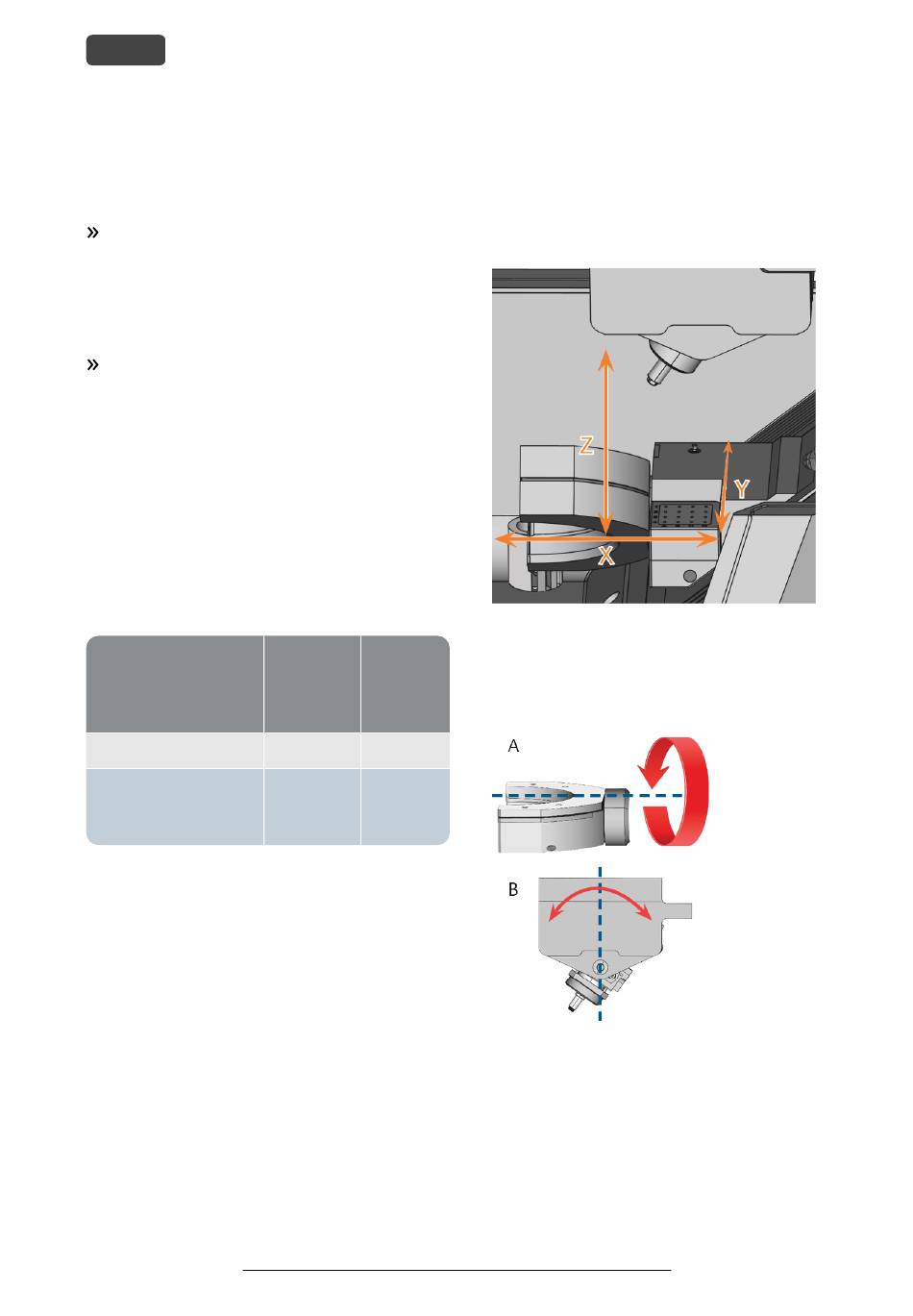

Axes
This machine has 5 axes: 3 linear and 2 rotary axes.
Linear axes
The spindle moves along these axes.
F . 6 – R5: L
IG INEAR AXES
Rotary axes
The blank holder rotates about these axes.
F . 7 – R5: R
IG OTARY AXES
R5 – Machine overview
