EN 36
Mounting & removing blanks
The machine can process the following blanks:
Discs with a diameter of 98.5 mm – 98.8 mm
n
Blocks, max. size: 40 x 20 x 20 mm (L/D/H)
n
Prefabricated abutments
n
* requires extra equipment
You can obtain extra equipment from
customer service.
How to mount the different blank types
Holder
Blank type required?
Discs No
Blocks Yes
Prefabricated Yes
abutments
*
How to mount
Discs >> Blank holder
or
Discs >> Blank magazine
Blocks >> Block holder >>
Blank holder
or
Blocks >> Block holder >>
Blank magazine
Prefabricated abutments >>
Prefabricated abutment holder
>> Blank holder
or
Prefabricated abutments >>
Prefabricated abutment holder
>> Blank magazine
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Operation: Preparing jobs
Mounting blocks to the block holder
You can mount up to 6 blocks to the block holder.
The block type, the number of blocks and the
block positions must correspond to the corres-
ponding job in DentalCAM.

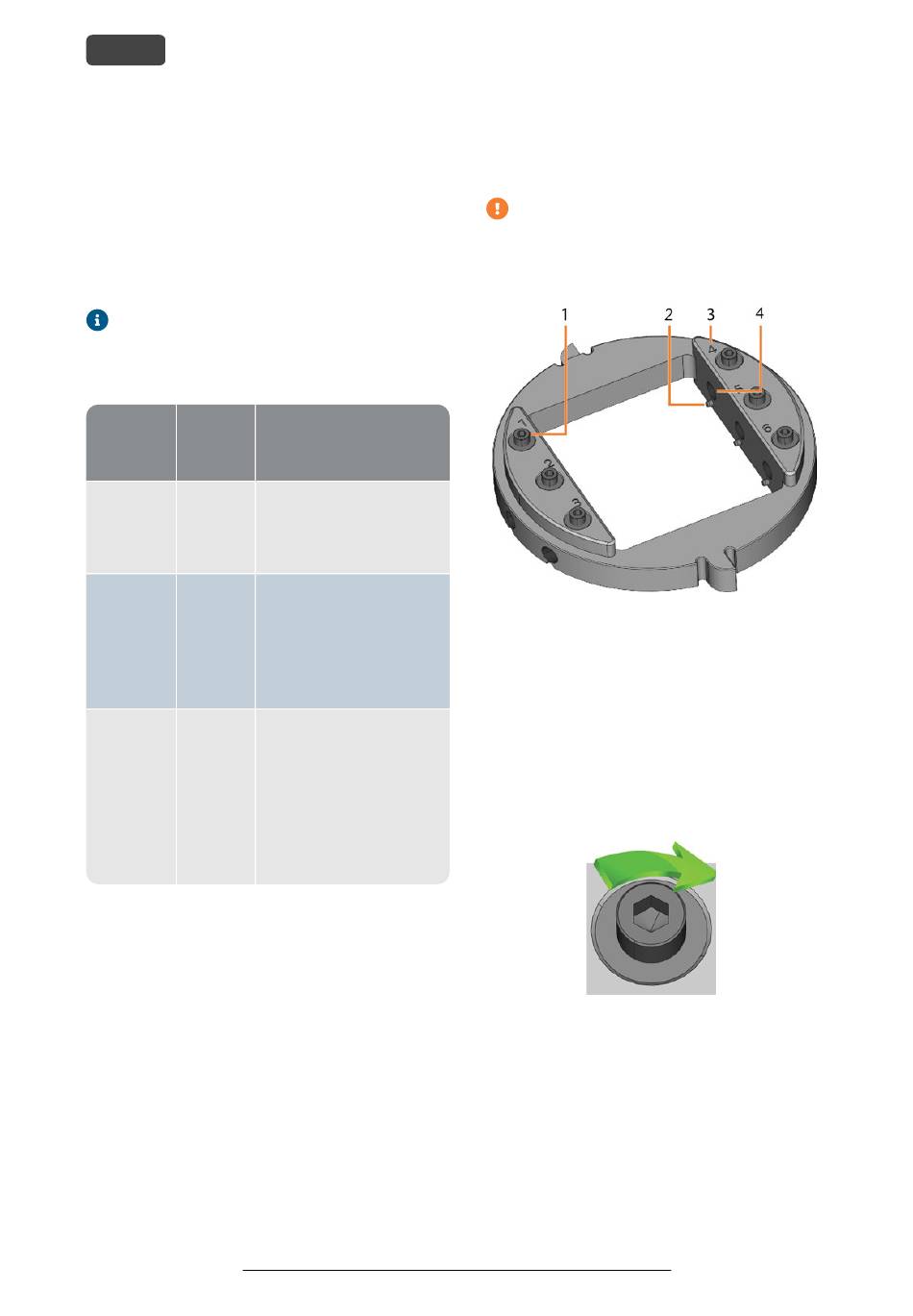

F . 40 – T R5
IG HE BLOCK HOLDER
1.
Fixing screw (x 6)
2.
Positioning pin (x 6)
3.
Position numbers (1–6)
4.
Hole for block shafts (x 6)
1.
Use the provided torque wrench to loosen the fix-
ing screw at the desired position.
F . 41 – U
IG NSCREWING THE SCREW AT THE DESIRED POSITION
2.
If the blank is a multilayer blank, orientate the
blank so that the top color layer is on top.
3.
Position the block so that the positioning pin at
the block holder lies in the groove in the block
shaft.
