VHF R5 Mode D'emploi D'origine page 60

EN 60
Checking the compressed air reg-
ulator
NOTICE
Damaging of the machine when
compressed air is contaminated
Compressed air that does not fulfill the guidelines for
purity according to ISO 8573-1 can damage the
machine.
Check the water separator of the compressed air
regulator daily for contamination.
Never
use the machine if there is water, oil or
solid particles in the water separator.
Checking the water separator for con-
densate
Condensate in the separator usually points to
compressed air not being dry enough.
1.
Check if water, oil or solid particles piled up in
the water separator.
2.
If this is the case, switch the machine off imme-
diately and proceed as follows.
3.
Check the compressed air supply and make sure
that the compressed air fulfills the requirements
for air purity according to ISO 8573-1. Do not use
the machine until the compressed air fulfills this
requirement.
4.
Drain the water separator by turning the dis-
charge screw counter-clockwise.
The condensate is blown out downwards under
pressure.
5.
Close the discharge screw again by turning it
clockwise.

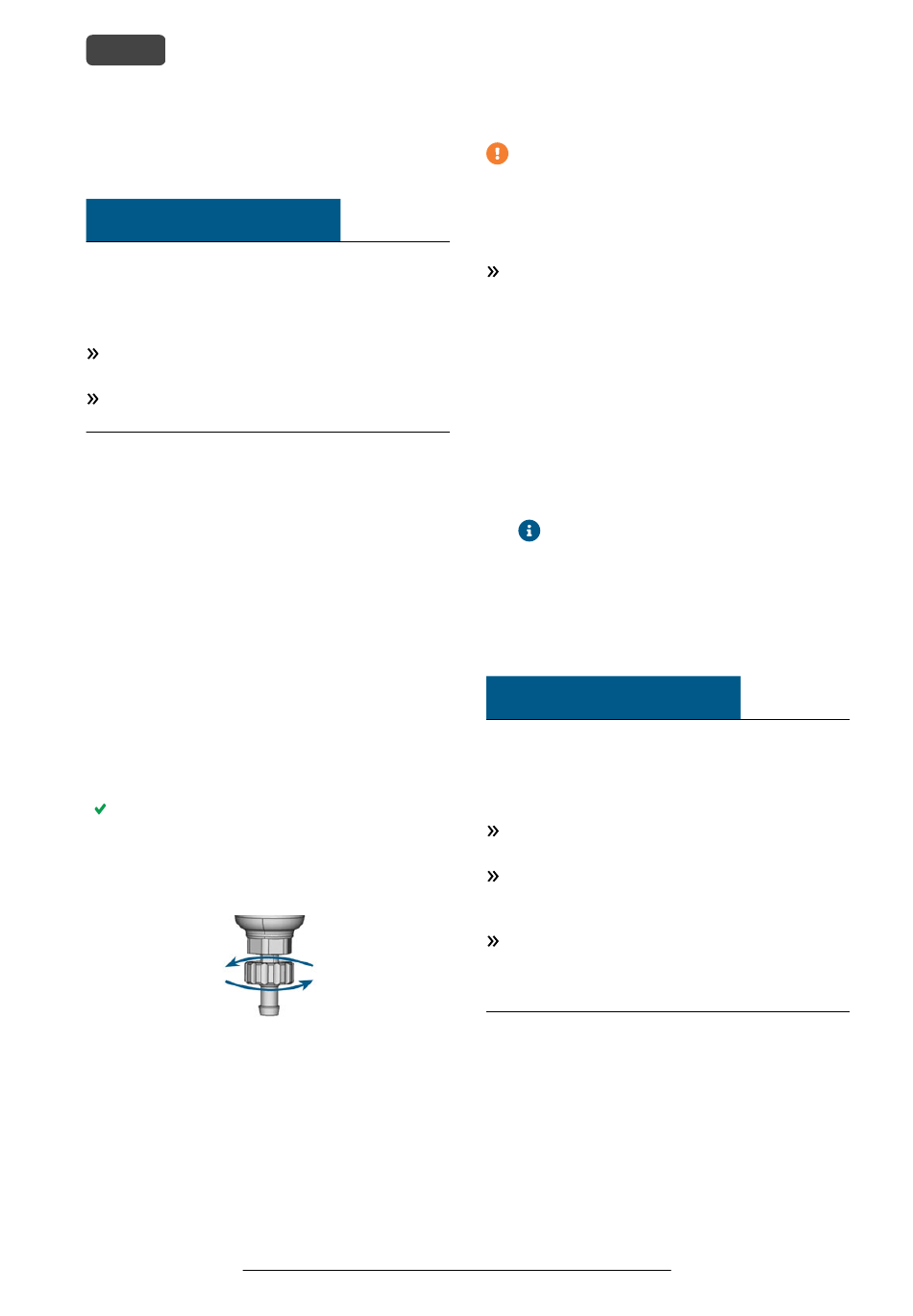

F . 88 – O /
IG PENING CLOSING THE DISCHARGE SCREW OF THE
COMPRESSED AIR REGULATOR
Exchanging / cleaning the contaminated
filter cartridge
You have to clean or exchange the filter cartridge in
the water separator in case of strong contamination.
If the compressed air fulfills the requirements for air
purity according to ISO 8573-1, the filter cartridge
usually does not have to be changed.
You exchange or clean the filter cartridge as follows:
1.
2.
3.
4.
5.
Cleaning the housing
Damaging of the housing when using an
unsuitable cleaning agent
If you use an unsuitable cleaning agent and/or
cleaning tool for cleaning the machine housing, the
surface or the adhesive foil can get damaged.
1.
2.
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Maintenance and do-it-yourself
A strongly contaminated cartridge can lead to a
pressure loss.
If the filter cartridge is contaminated, check the
purity of your compressed air.
Disconnect the machine from the compressed air
supply.
Unscrew the bowl of the water separator.
Unscrew the filter screw below the filter cart-
ridge.
Pull out the filter cartridge and clean it if neces-
sary.
A new filter cartridge is available as spare
part from customer service.
Insert the new or cleaned filter cartridge and reas-
semble the water separator.
NOTICE
To avoid scratches, only use a microfiber cloth to
clean the housing.
Take care of the adhesive symbols so that they do
not peel off. The adhesive foil is especially sens-
itive to rubbing and strong cleaning agents.
If the usage of a special cleaning agent is necessary
to eliminate certain dirt, we recommend checking
the suitability of the cleaning agent at a hidden
place of the part first.
Clean the surface with a dry microfiber cloth.
If some dirt cannot be removed this way, moisten
the cloth. Use a pH neutral cleaning agent if
necessary.
