Machine installation (schema)
You can either use the switching unit including
the control cable or the data cable of
supported suction units. The data cable must
be provided by the manufacturer of the
suction unit.

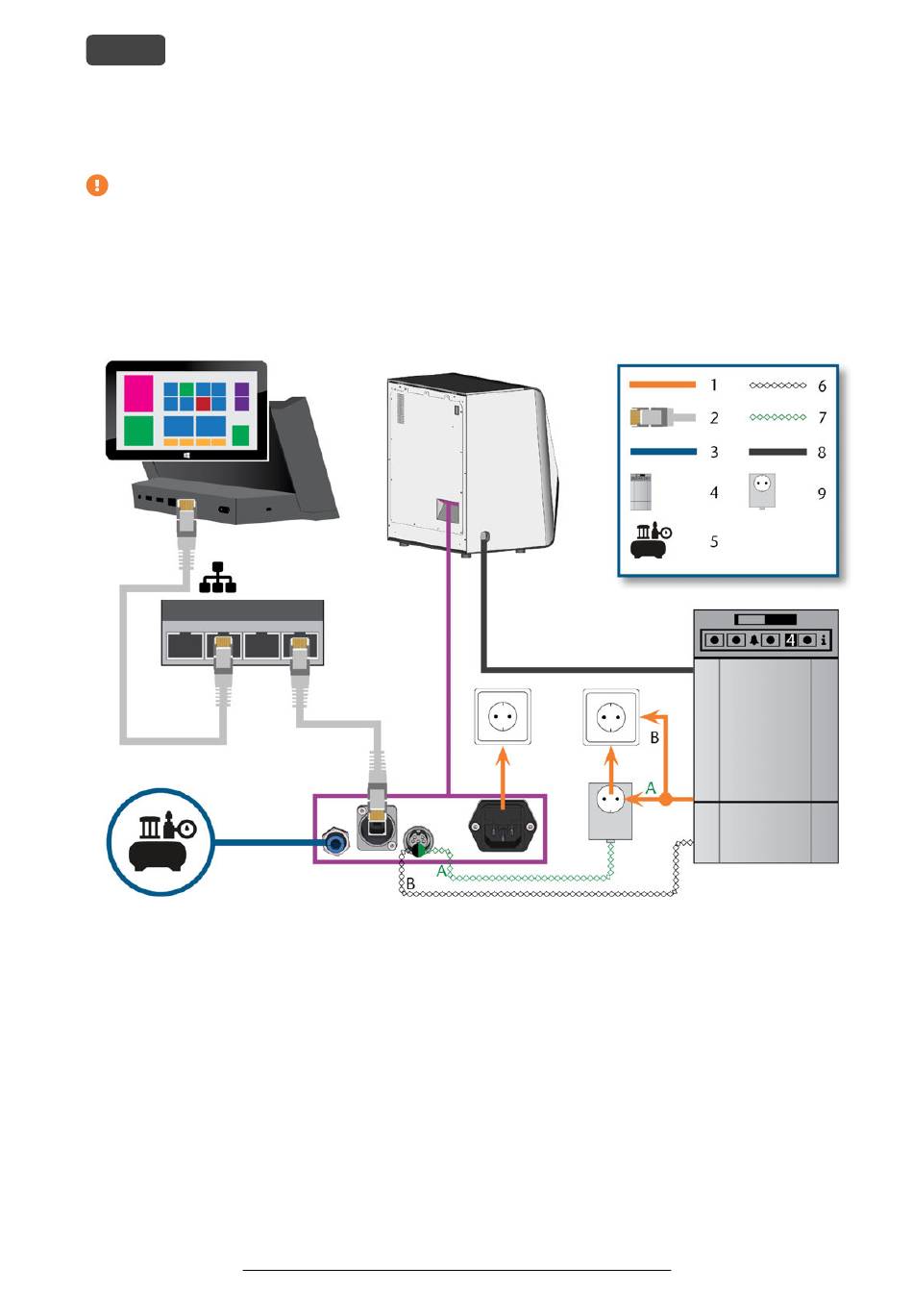

F . 9 – M
IG ACHINE INSTALLATION
1.
Power connection
2.
Ethernet network cable
3.
Pneumatic hose
4.
Suction unit
5.
External compressed air supply
6.
Data cable of supported suction units (optional)
7.
Control cable of the switching unit (optional)
8.
Suction hose
9.
Switching unit (optional)
( )
SCHEMA
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Installing the machine
