1.
Empty and clean the cooling liquid tank.
2.

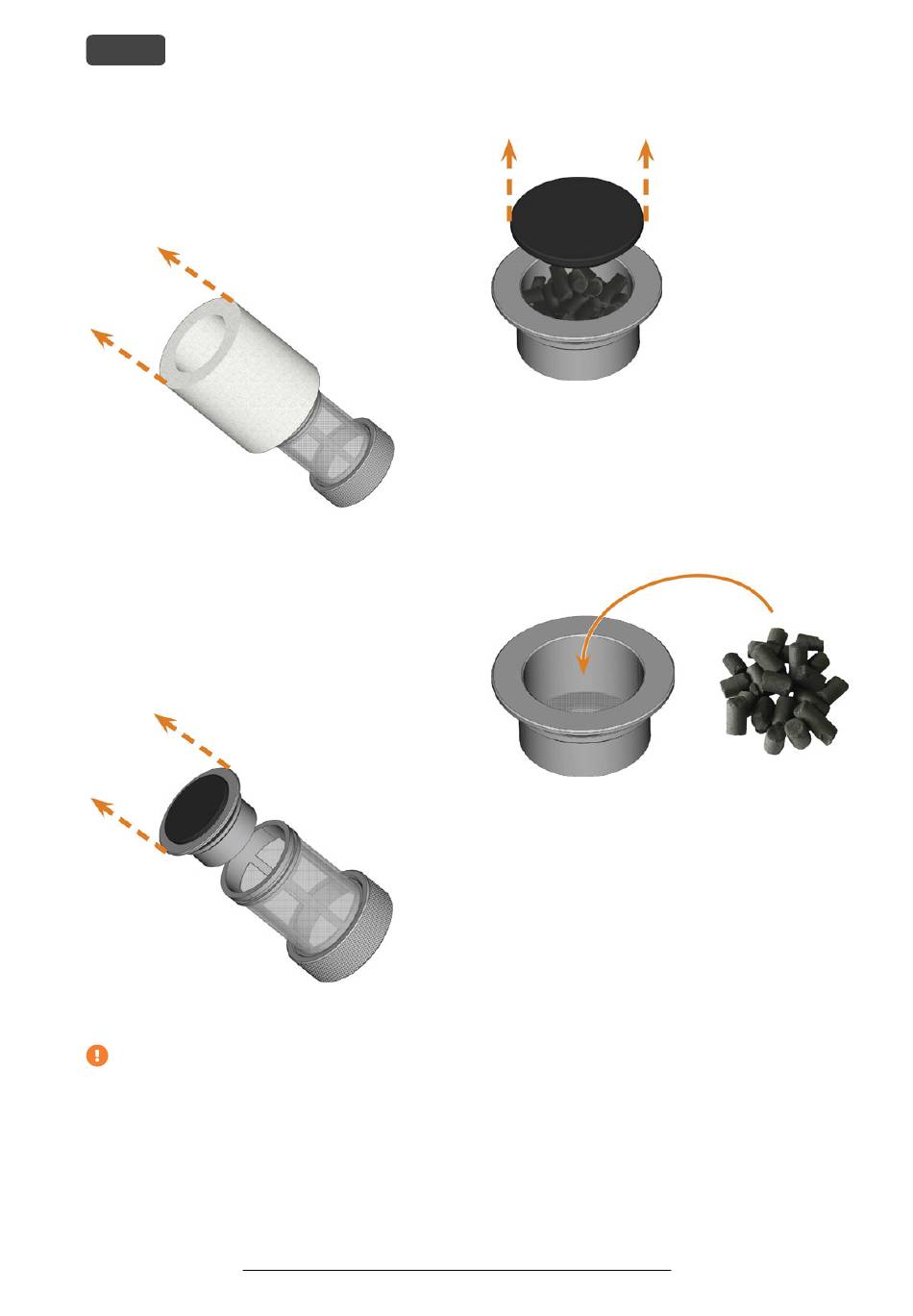

Remove the fine filter by stretching the top end a
bit and straightly pulling it off the filter with both
hands.
F . 81 – R
IG EMOVING THE FINE FILTER
3.
Clean the fine filter under running water. If the
fine filter is too soiled for proper cleaning,
replace it with a new one when reassembling the
filter.
4.
Remove the carbon filter by straightly pulling it
off the filter.
F . 82 – R
IG EMOVING THE CARBON FILTER
If you tilt the filter or move it abruptly in the
next step, you may spill the activated carbon
pellets.
5.
Carefully lift the carbon filter cap with your fin-
gernail or a flat blunt tool and pull it off the car-
bon filter.
F
IG
6.
7.
8.
F
IG
9.
10.
11.
12.
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Maintenance and do-it-yourself
. 83 – O
PENING THE CARBON FILTER
Empty the filter and dispose of the activated car-
bon pellets.
Clean the carbon filter and dry it with a cloth.
Fill new activated carbon pellets into the carbon
filter.
. 84 – R
EPLACING THE ACTIVATED CARBON PELLETS
Firmly close the carbon filter with the cap.
If the filter mesh is soiled, pull it off the cooling
liquid filter and rinse it under running water.
Reassemble the cooling liquid filter. Make sure
that the fine filter covers the complete filter.
Fill new cooling liquid into the tank.
