R5 – Operation: Preparing jobs

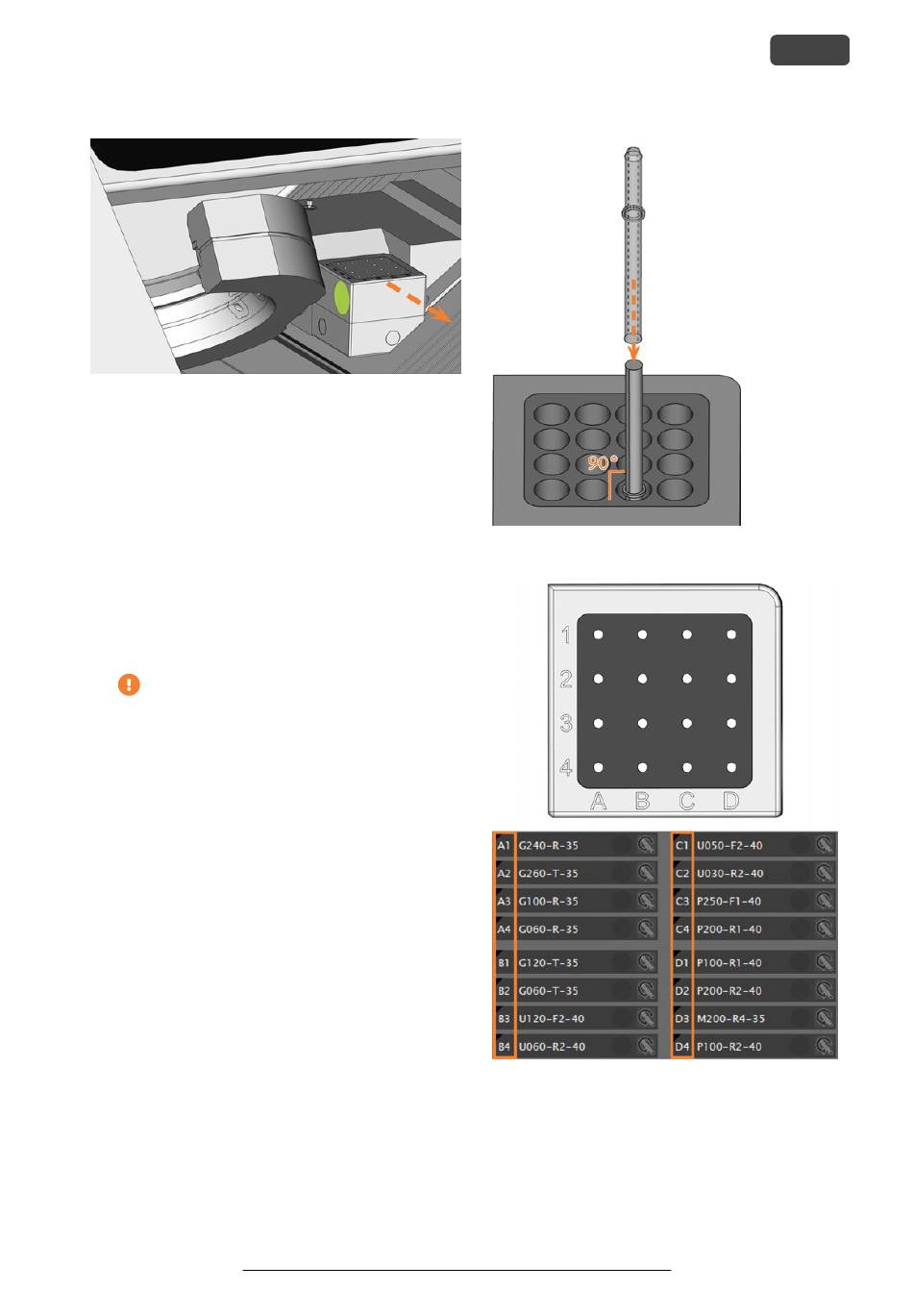

F . 55 – P
IG ULLING OUT THE TOOL MAGAZINE
)
COLORED GREEN
2.
Remove worn or damaged tools from the tool
magazine if any.
3.
Insert the new tools:
a.
Ensure that the positions of the tools in the
tool magazine match the tool positions in
DentalCNC.
b.
Insert the tools straight into the tool pos-
itions with the cutting edge pointing down-
wards. Push them in until the ring touches
the rubber.
If the positions of the tools in the tool
magazine do not match the tool positions
in DentalCNC, the machine will use the
wrong tool(s) during job execution and
the job result will become unusable.
4.
After replacing a tool, reset the tool life value. For
this, use the Tool management view in
DentalCNC.
5.
Plug the tool magazine back onto the tool
magazine holder if required.
(
LEFT RECESSED GRIP
Original Operating Instructions: R5
Version: 5/10/2019
F . 56 – I
IG NSERTING TOOLS INTO THE TOOL POSITIONS
F . 57 – T : T 1 – 16
IG OP OOL POSITIONS
B : T 1 – 16
OTTOM OOL POSITIONS IN
EN 43
IN THE TOOL MAGAZINE
D CNC
ENTAL
