EN 38
Mounting the block holder in the working
chamber
If you only want to machine blocks in 1 block holder,
directly mounting the block holder in the working
chamber is faster than using the blank changer.
1.
Open the working chamber door.
2.
Open the blank holder by selecting the
Machining
depicted icon in the
DentalCNC.
3.
Remove the blank in the blank holder if any.
4.
Correctly orient the block holder:
The numbers labeling the block positions
n
must face upwards.
The positioning aid with reduced height
n
must be positioned in the rear.
The positioning aid with full height must be
n
positioned in the front.
5.
Push the block holder into the blank holder.

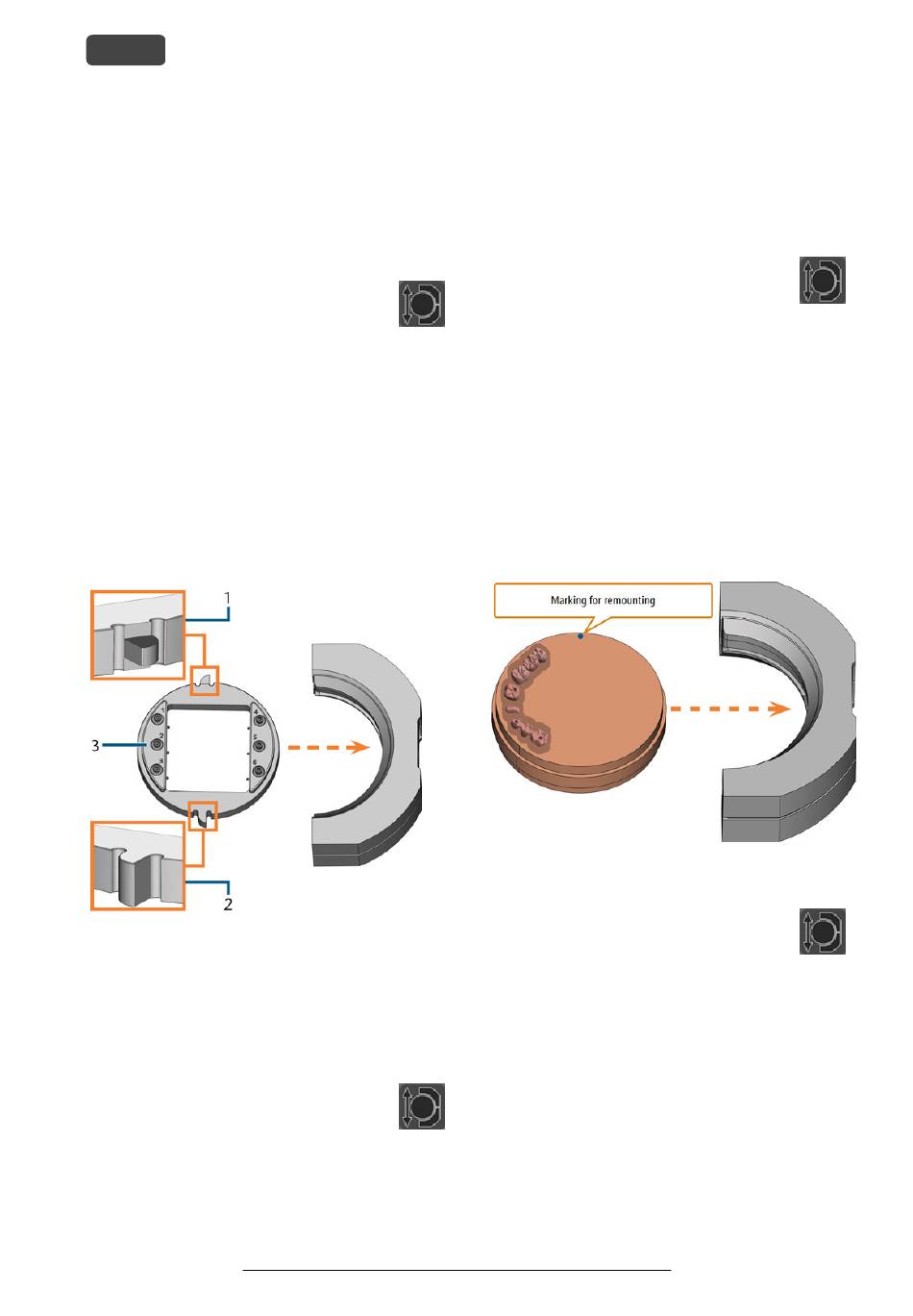

F . 46 – I
IG NSERTING THE CORRECTLY ORIENTATED BLOCK HOLDER
INTO THE BLANK HOLDER
1.
Rear positioning aid (reduced height)
2.
Front positioning aid (full height)
3.
Upper side of the block holder
6.
Close the blank holder by selecting the
Machining
depicted icon in the
DentalCNC.
Mounting discs in the working chamber
If you only want to machine 1 disc, directly mounting
the disc in the working chamber is faster than using
the blank changer.
1.
2.
view in
3.
4.
5.
6.
F
IG
BLANK HOLDER
7.
view in
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Operation: Preparing jobs
Open the working chamber door.
Open the blank holder by selecting the
Machining
depicted icon in the
DentalCNC.
Remove the blank from the blank holder if any.
If the blank is a multilayer blank, orientate the
blank so that the top color layer is on top.
If the disc has been processed before, ensure the
following:
The original top side faces upwards.
n
If the disc has been marked for safer
n
remounting by DentalCNC, ensure that the
marking is in the position shown below.
Push the disc into the blank holder.
. 47 – R
EMOUNTING AN ALREADY PROCESSED DISC TO THE
(
MARKINGS FOR SAFER REMOUNTING IN BLUE
Close the blank holder by selecting the
Machining
depicted icon in the
DentalCNC.
