R5 – Maintenance and do-it-yourself

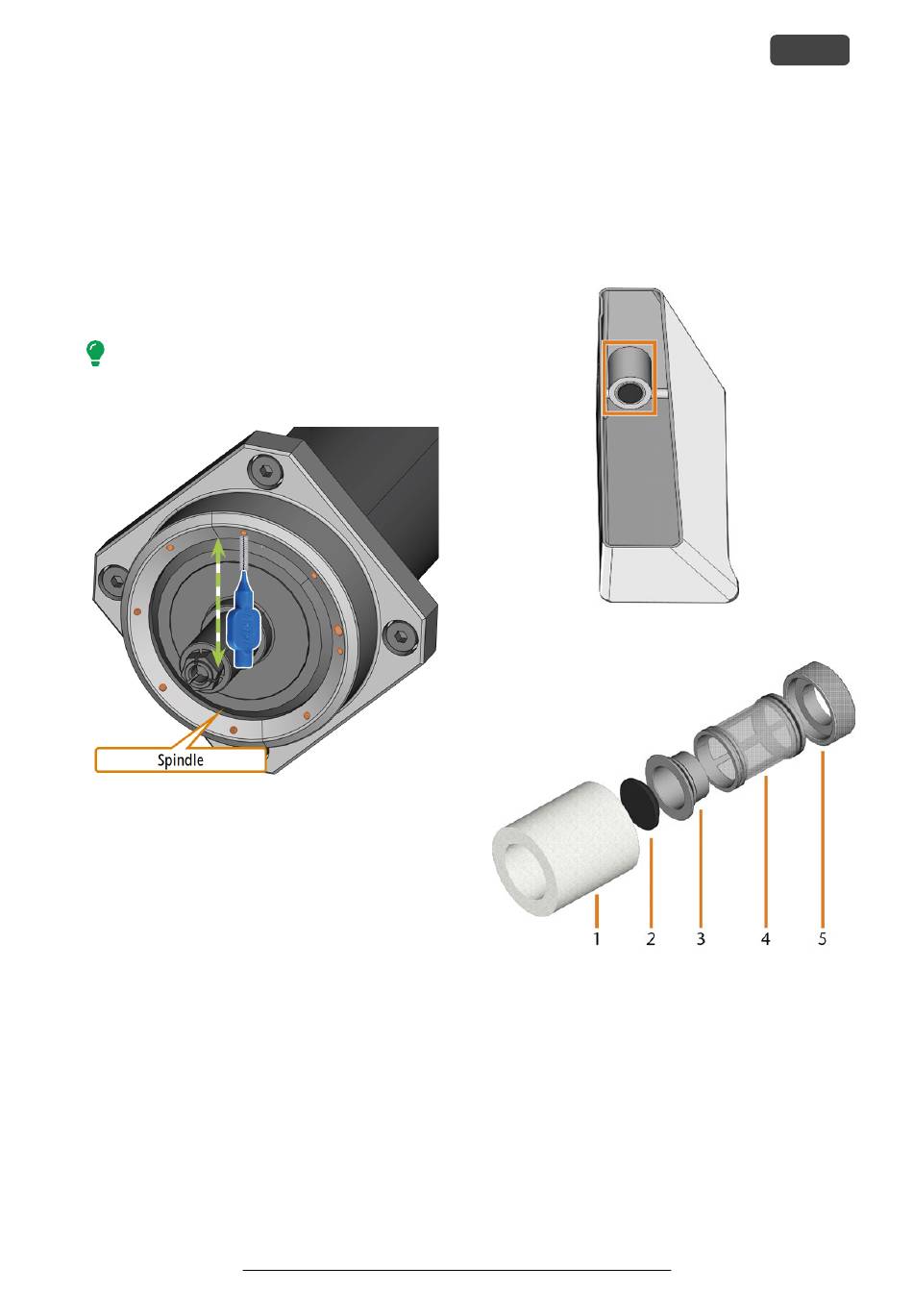

Cleaning the nozzle plate
You should clean the nozzle plate every time you
clean the collet chuck.
1.
Have the interdental brush ready.
2.
Open the working chamber door.
3.
Clean the ring of 9 holes in the inner area of the
nozzle plate. For this, move the interdental brush
up and down.
If necessary, apply some water with a cleaning
agent and let it sit for some minutes.
F . 78 – C
IG LEANING THE NOZZLE PLATE
;
NOZZLES MARKED ORANGE
Original Operating Instructions: R5
Version: 5/10/2019
Exchanging the carbon filter
The cooling liquid tank of your machine is equipped
with a cooling liquid filter that consists of different
filter components, including the carbon filter. The
carbon filter contains activated carbon pellets that you
need to exchange regularly.
F . 79 – C
IG OOLING LIQUID FILTER IN THE TANK
F . 80 – T
IG HE COMPONENTS OF THE COOLING LIQUID FILTER
1.
Fine filter
2.
Carbon filter cap
3.
Carbon filter
4.
Mesh filter
5.
Filter socket
To exchange the activated carbon pellets in the filter,
do the following:
