EN 12
Working chamber
You can mount blanks and insert tools into the
working chamber. This is where the blanks are
processed.

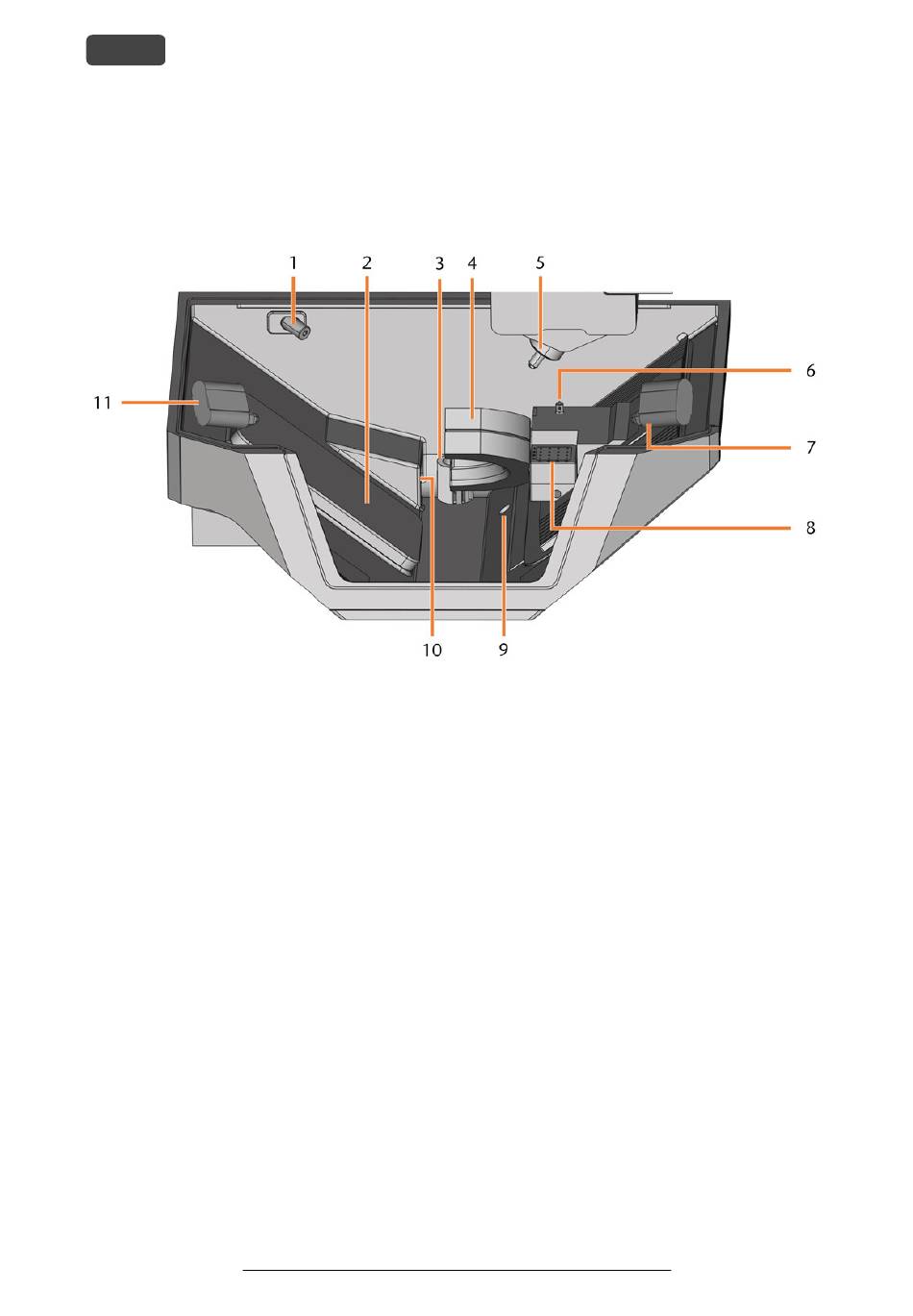

F . 5 – W
IG ORKING CHAMBER
1.
Webcam
2.
Blank changer flap
3.
Outlet for the cooling liquid
4.
Blank holder; Rotational axis A
5.
Spindle
6.
Measuring key
7.
Right ion jet
8.
Tool magazine
9.
Emergency overflow
10.
Air extraction opening
11.
Left ion jet
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Machine overview
