4 Machine overview
With your R5 you can process blanks of different mater-
ials to create high quality objects for the dental sector.
You can find a list of the materials which you can
process with the machine in the manufacturing soft-
ware.
The machine is designed for wet and dry machining.
During wet machining, the tools and blanks are
constantly being cooled by cooling liquid.
During dry machining, our anti-soiling concept
reduces the soiling of sensitive machine parts.
Anti-soiling concept – on page 13


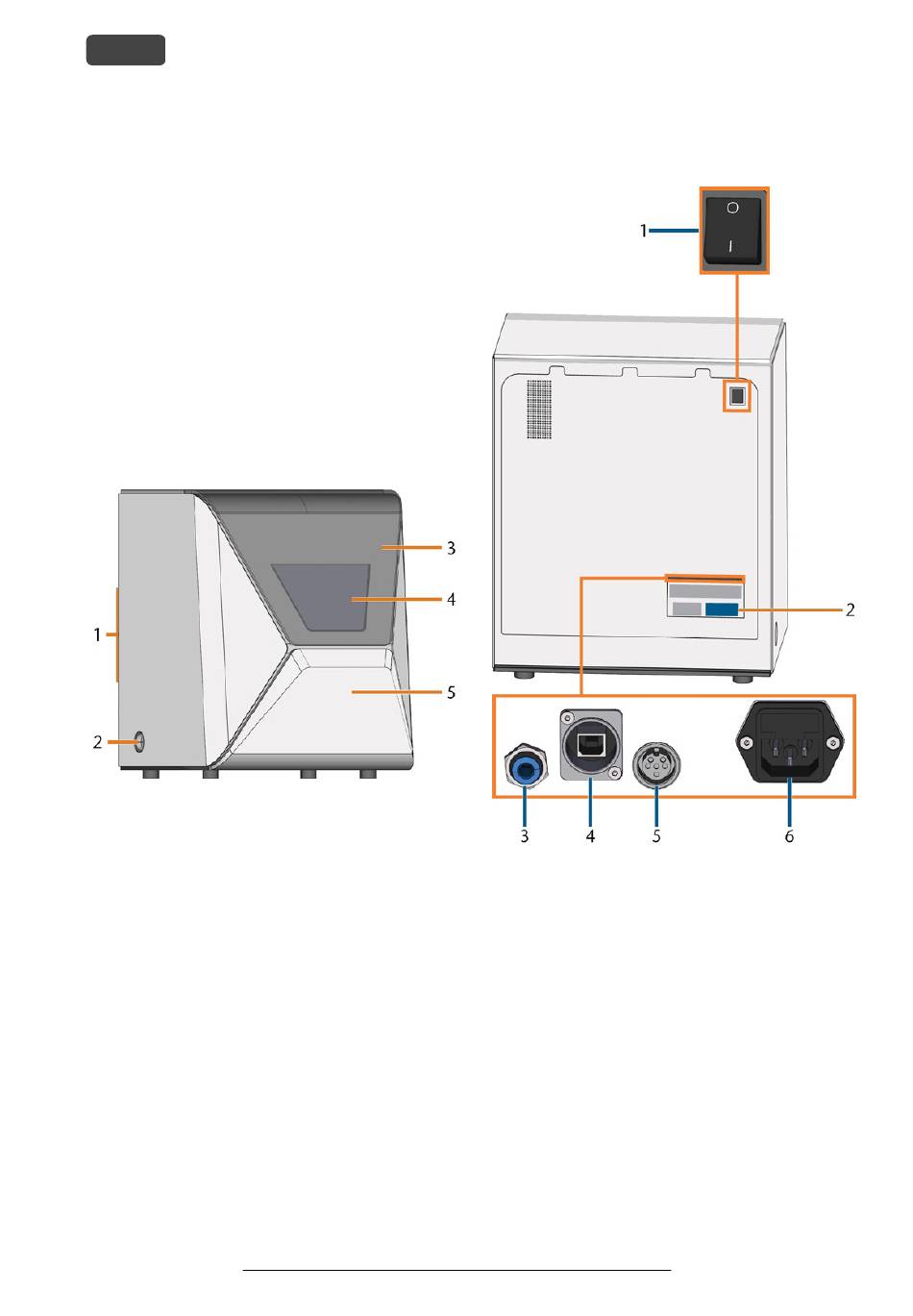

Front side of the machine
F . 1 – F
IG RONT SIDE OF THE MACHINE
1.
Connection panel & main power switch on the rear
side
2.
Suction opening for the air extraction system
3.
Working chamber door
4.
View window to the working chamber
5.
Multi-purpose compartment
Rear side of the machine
F
IG
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Machine overview
. 2 – R
EAR SIDE OF THE MACHINE
1.
Main power switch
2.
Identification plate
3.
Pneumatic connection
4.
Network port (Ethernet RJ-45)
5.
Suction unit data port
6.
Power connection including glass fuse T6,3A L250V
