VHF R5 Mode D'emploi D'origine page 20

EN 20
Overview compressed air regulator
The machine is connected to the external air supply
via a compressed air regulator. You can use this regu-
lator to monitor and regulate the pressure of the
incoming air.
The compressed air regulator is pre-installed in the
multi-purpose compartment. It is located to the right
of the cooling liquid tank.
The regulator has the following connections:
1/8" internal thread, fitted with male com-
n
pressed air connector to connect the external
compressed air supply
6 mm push-in fitting to connect the machine.
n
You need to remove the tank before you can access
the compressed air regulator (
cooling liquid and cleaning the tank – on page 33 ).

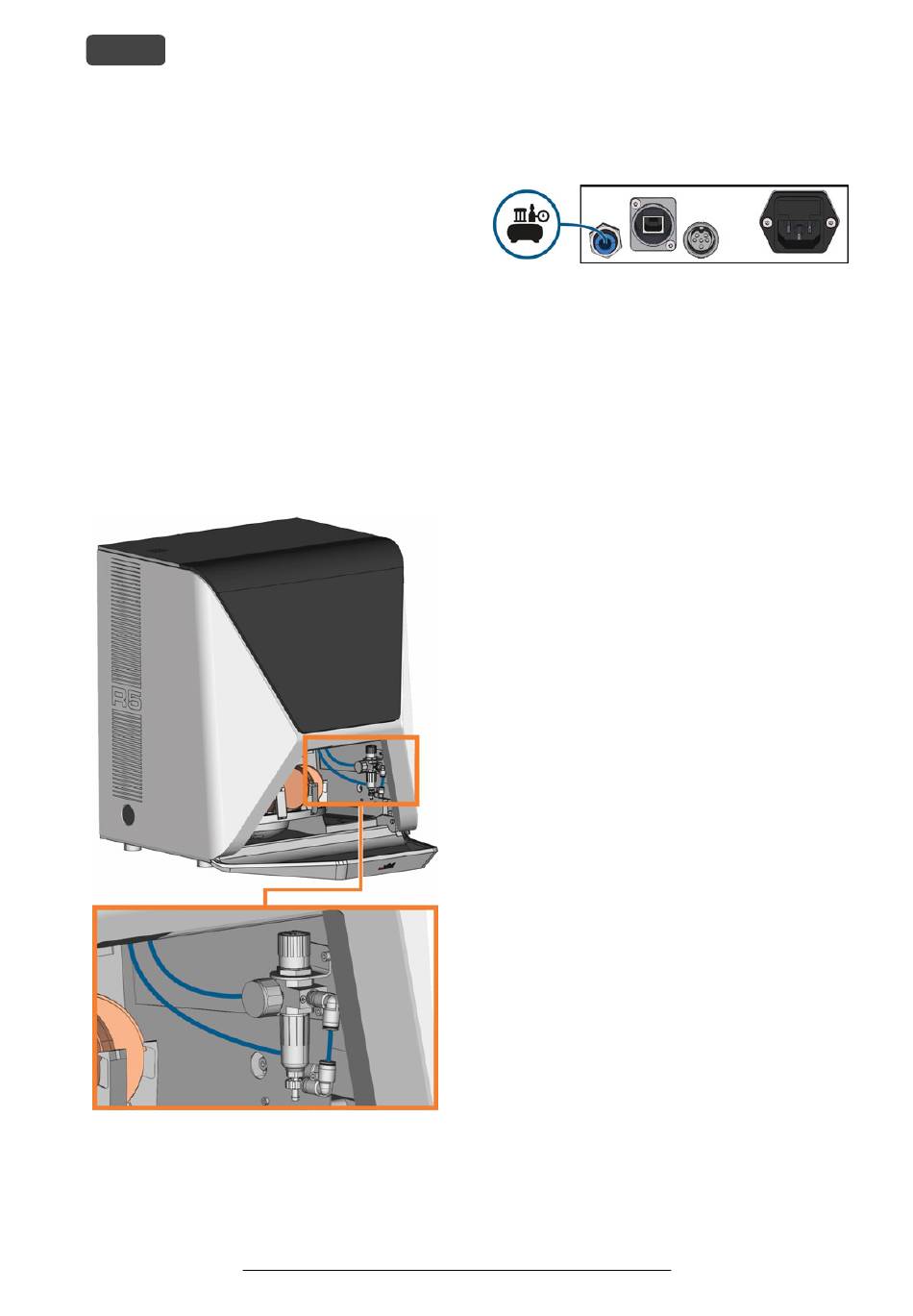

F . 10 – T
IG HE LOCATION OF THE COMPRESSED AIR REGULATOR
Exchanging the

Original Operating Instructions: R5
Version: 5/10/2019
R5 – Installing the machine
Installing the pneumatic hose
F . 11 – I
IG NSTALLING THE PNEUMATIC HOSE
1.
Close the external compressed air supply valve.
2.
Connect the provided pneumatic hose to your
external compressed air supply system.
3.
Connect the other end of the hose to the pneu-
matic connection at the connection panel of the
machine.
4.
Thoroughly verify that all external pneumatic
hoses are properly seated in their corresponding
connections and that the hoses and connectors
are undamaged.
5.
If all hoses and connectors are properly installed
and undamaged, open the external compressed
air supply valve.
