R5 – Operation: Executing jobs
Releasing a stuck tool magazine
In case a tool magazine got stuck on the holder, use
the screw on the backside of the tool magazine:
1.
Use the screw as follows:
a.
Pick up a flat blunt tool (e. g. a slot screw
driver)
b.
Use the tool to remove the protective cap
of the screw and put it aside within reach.
c.
Using the provided allen key, turn the
screw to the right.
The tool magazine moves backwards and is
released.

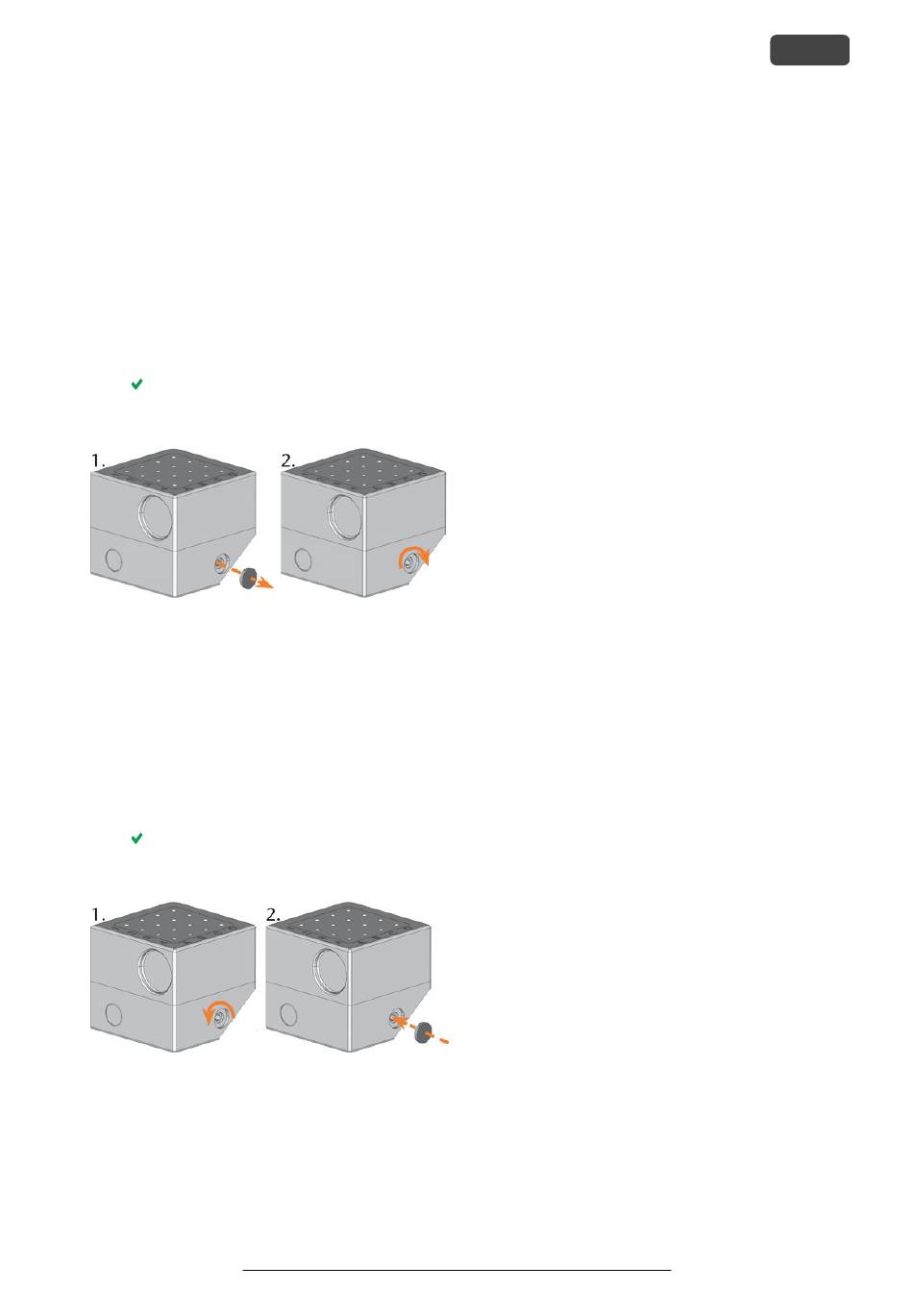

F . 62 – R
IG EMOVING THE PROTECTIVE CAP
SCREW
2.
Remove the tool magazine from the working
chamber.
3.
To reset the screw, do the following:
a.
Using the provided allen key, turn the
screw to the left into its original position.
b.
Cover the screw opening with the pro-
tective cap.
The screw is reset and the tool magazine is
ready to be mounted again.
F . 63 – R (
IG ESETTING THE SCREW LEFT
PROTECTIVE CAP
( )
LEFT AND USING THE
)
AND PLACING THE
