R5 – Operation: Preparing jobs
Using an optional abutment holder
With an optional abutment holder, your machine can
process prefabricated abutments with prefabricated
connection geometries.
Abutment holders for common abutment
systems can be obtained from customer
service.
You can find more information about abutment
holders and abutment blanks at the following internet
address:
dentalportal.info/abutments
Operating the blank changer
You can mount up to 10 blanks to the magazine slots
of the blank changer. The machine automatically loads
blanks into the working chamber when they are
required for the next job. This allows you to process
up to 10 jobs in succession without having to start
each job manually.
CAUTION
Crushing hazard caused by the moving
blank magazine and blank gripper
If you reach into the multi-purpose compartment
while the blank magazine or blank gripper is moving,
you may suffer from bruises.
Before
moving the blank magazine via
DentalCNC, remove your hands from the multi-pur-
pose compartment.
While the machine is operating, always expect the
blank magazine to suddenly start moving.
When you are working in the multi-purpose com-
partment while the machine is operating, always
keep your hands at the change position and
never
reach into the multi-purpose com-
partment.
If you manually move the blank magazine, ensure
that you do not pinch your fingers.

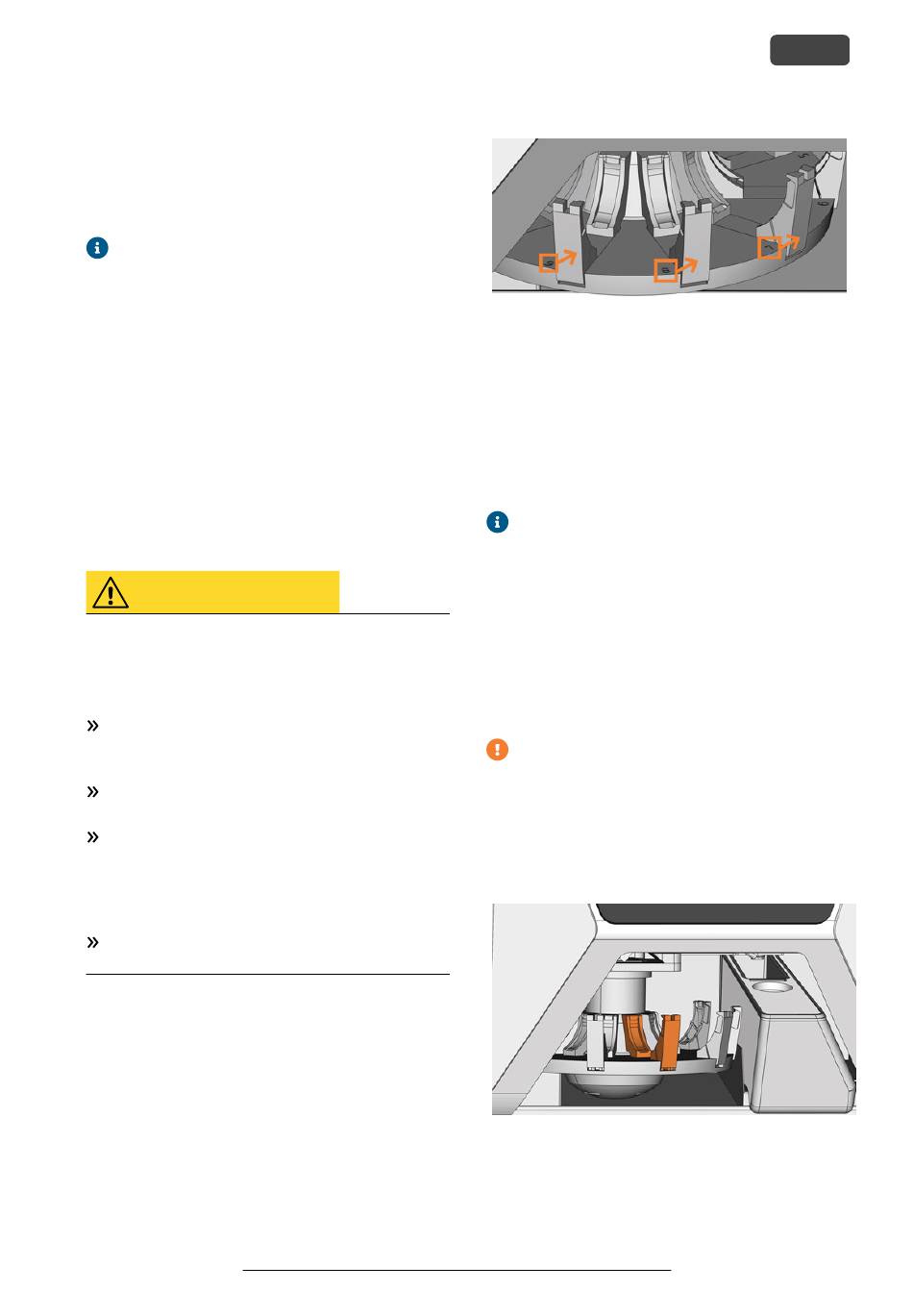

To the left of each blank magazine slot is a laser
engraved number labeling the corresponding slot.
F
IG
ARROWS INDICATE THE SLOTS THEY CORRESPOND TO
Change position of the blank magazine
When you mount blanks to a blank magazine slot, you
must use the change position. Otherwise, the blanks
in your machine will not correspond to the blank posi-
tions assigned in DentalCNC.
The change position is shown in the following figure:
F
IG
Original Operating Instructions: R5
Version: 5/10/2019
. 48 – T (
HE BLANK MAGAZINE SLOT NUMBERS MARKED ORANGE
The blank types in the physical slots must cor-
n
respond to the blank types which are assigned
to the virtual slots in DentalCNC.
To move the blank magazine or to manually load
n
blanks into the working chamber, use the
ing
view in DentalCNC.
How to manually operate the blank changer
and how to assign jobs to blank magazine slots
is described in the documentation for
DentalCNC.
Never mount blanks to a different position,
even if the position is easily accessible. The
machine may load the wrong blanks, which
can result in unusable machining results and
broken tools.
. 49 – T (
HE CHANGE POSITION COLORED ORANGE
EN 39
,
)
