Cooling lubricant
When processing titanium blanks:
Add the cooling lubricant Tec Liquid Pro to the
cooling liquid. The mixing ratio is indicated on the
bottle label.
Tec Liquid Pro is available from customer
service.
Emptying the strainer basket
You can empty the strainer basket into a collecting
container as follows:
1.
Lift the cover off the tank.
2.
Use the recessed surfaces at the sides of the
strainer basket to pull it upwards.

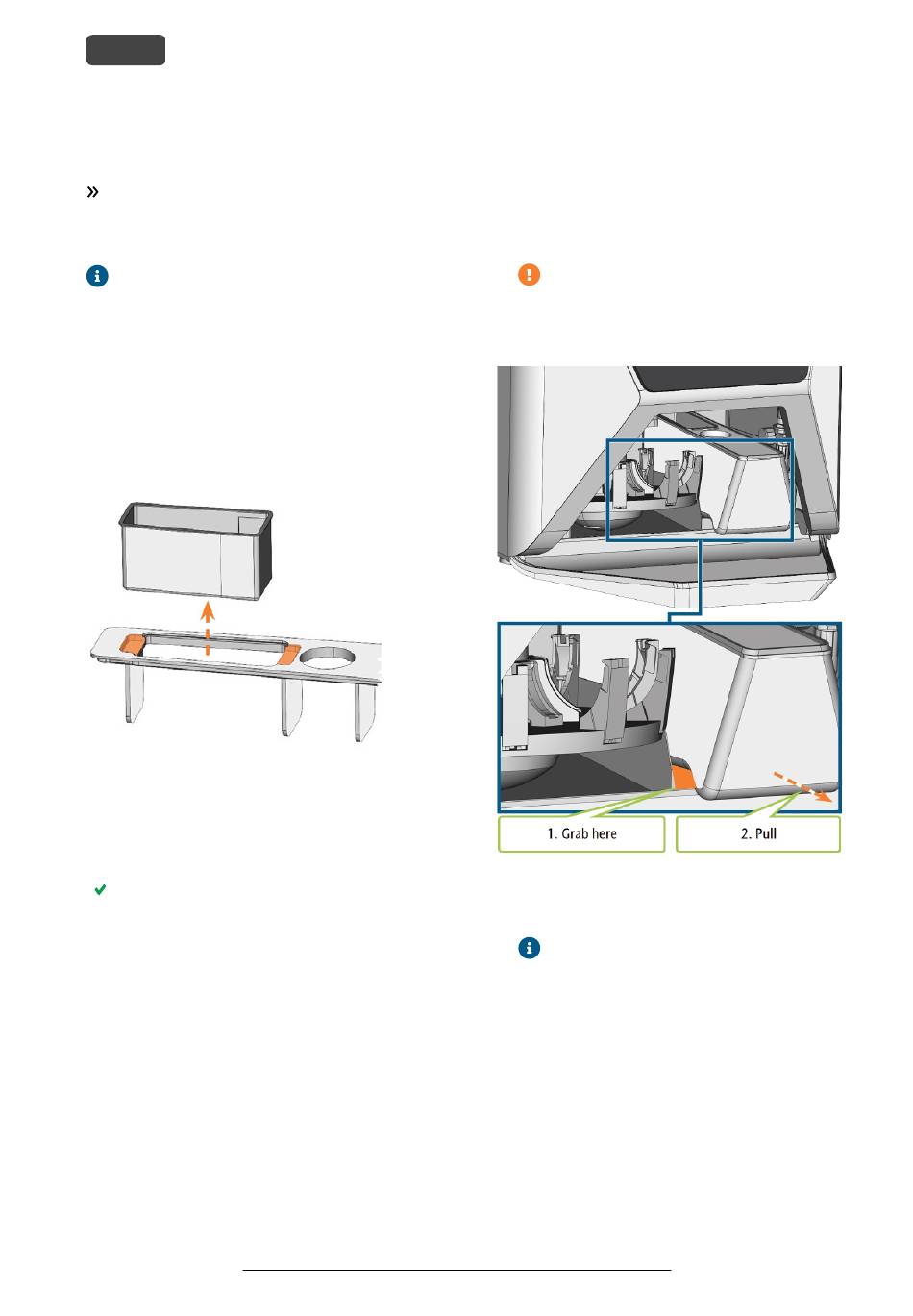

F . 34 – R
IG EMOVING THE STRAINER BASKET
)
COLORED ORANGE
3.
Tap out the strainer basket into the collecting con-
tainer. You can use water or compressed air to fur-
ther clean the strainer basket.
The strainer basket is completely void of machin-
ing residues.
Exchanging or filling in the cooling liquid
You can fill in or exchange the cooling liquid as
follows:
1.
To exchange the liquid and clean the cooling
liquid tank, have the following items readily avail-
able:
Collecting container that can hold approx.
n
10 l
Cleaning brush
n
Water for cleaning the cooling liquid tank
n
2.
Ensure that sufficient cooling liquid is available.
(
RECESSED SURFACES
Original Operating Instructions: R5
Version: 5/10/2019
R5 – Operation: Preparing jobs
3.
Close the working chamber door.
4.
Open the multi-purpose compartment.
5.
Pull the cooling liquid tank out of the com-
partment in the direction indicated by the arrow
( Fig. 35 – see below ).

When you tilt the cooling liquid tank, the
cover will not prevent the cooling liquid
from leaking.
F . 35 – R
IG EMOVING THE COOLING LIQUID TANK FROM THE
-
MULTI PURPOSE COMPARTMENT
Information on the disposal of cooling
liquid and machining residues:
– on page 66
6.
Lift the cover off the tank.
7.
If there is cooling liquid in the tank:
a.
Pour the cooling liquid into the collecting
container.
b.
Use the recessed surfaces at the sides of the
strainer basket to pull it upwards.
Disposal

