R5 – Installing the machine
Connecting the suction hose with the
optional hose connection
If you cannot connect the suction hose of the suction
unit directly to the machine, install the hose connec-
tion as follows:
1.
Obtain the hose connection from customer ser-
vice.
2.
Turn the thread of the hose connection counter-
clockwise until the connection is completely
open.
If the thread gets detached from the hose connec-
tion, place it onto the connection again and turn
it clockwise once so that it is screwed to the
connection again.
3.
Insert the suction hose of the suction device com-
pletely into the hose connection on the side of
the thread.

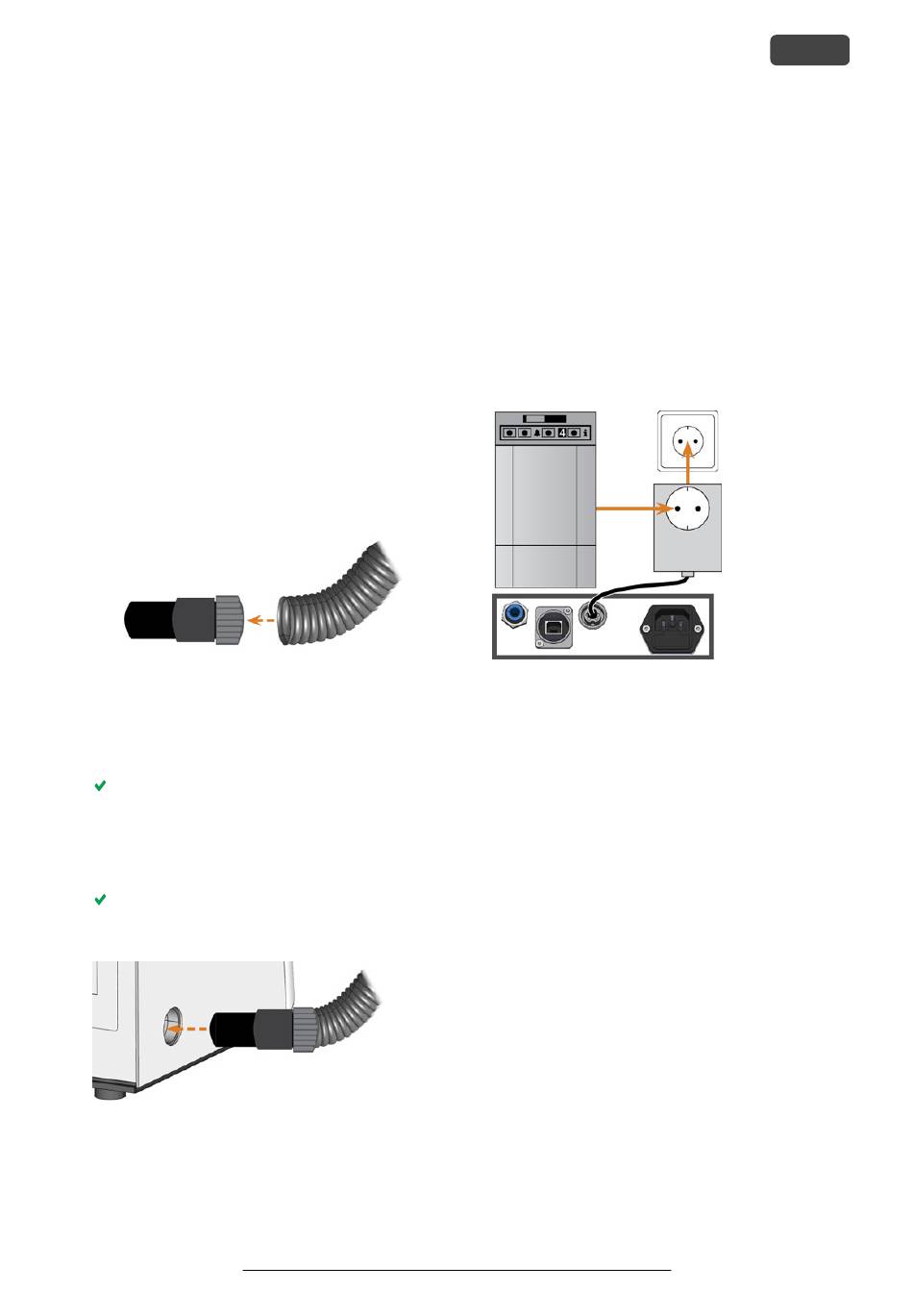

F . 15 – I
IG NSERTING THE SUCTION HOSE INTO THE HOSE
CONNECTION
4.
Turn the thread of the hose connection clockwise
as far as you can.
The suction hose is firmly attached to the hose
connection.
5.
Insert the hose connection into the opening for
the air extraction system of the machine. Ensure it
is firmly connected.
The installation of the suction hose with the
optional hose connection is complete.
F . 16 – I
IG NSERTING THE HOSE CONNECTION INTO THE OPENING FOR THE
AIR EXTRACTION SYSTEM
Installing the switching unit
If you want the machine to automatically switch the
suction unit on and off, but a data cable is not avail-
able, you can use the optional switching unit. The
switching unit is not available worldwide.
1.
2.
3.
F
IG
AND THE MACHINE
Original Operating Instructions: R5
Version: 5/10/2019
Connect the power cable of the suction device to
the switching unit.
Connect the control cable of the switching unit to
the suction device data port at the connection
panel of the machine.
Plug the switching unit into a power socket.
. 17 – C
ONNECTING THE SWITCHING UNIT TO THE SUCTION DEVICE
