50 AVENTICS | RCM | R402002349-BDL-001-AC
Installation
6.1

Installing cylinders with end cover mounting

1. Place the cylinder on a firm, flat surface.
2. Fit a mounting at either end of the cylinder, using the screws
supplied.
3. Attach each end cover to the surface with suitable screws or
bolts.
4. Tighten the screws gradually to avoid strain. See the Table 3 of
tightening torques.

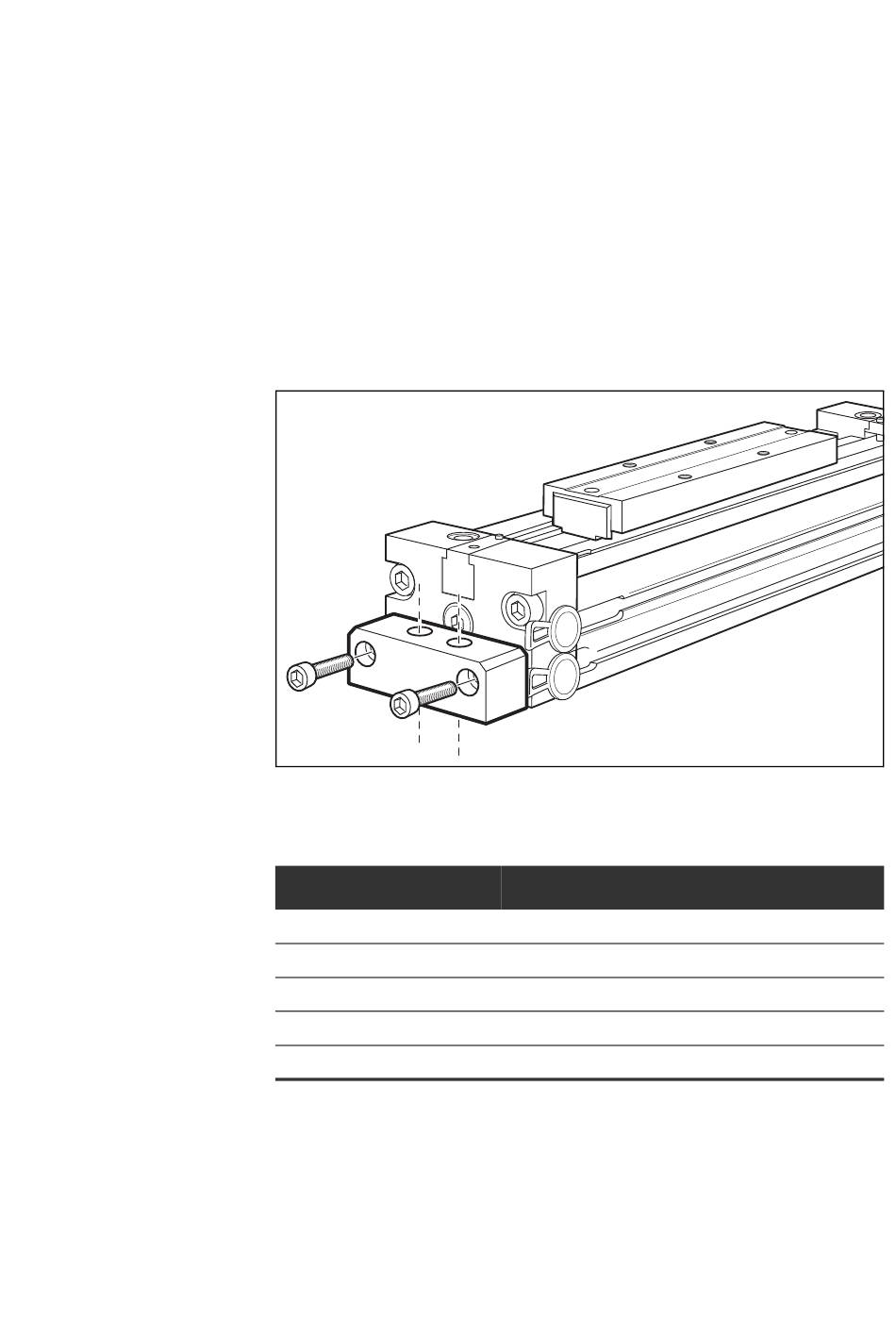

Fig. 2: Fitting the end cover mountings
Table 3:
Screw diameter
M4
M5
M6
M8
M10
Tightening torque (class 8.8)
3 Nm Nm
6 Nm
10 Nm
24 Nm
47 Nm
00120551
