Different foot mounting variants are available, depending on piston
size. The variant for 16 mm piston size is not intended for axial
loads (upper illustration) and must therefore be installed in
combination with end cover mountings. The variants for piston size
25-50 mm and 63-80 mm are designed for axial loads (lower
illustration).
00120542
Note: Foot mountings must always be used when installing
cylinders with ball rail guide RMC-HD and RMC-HE, since the
loading of these is normally significantly higher.
5.2.3

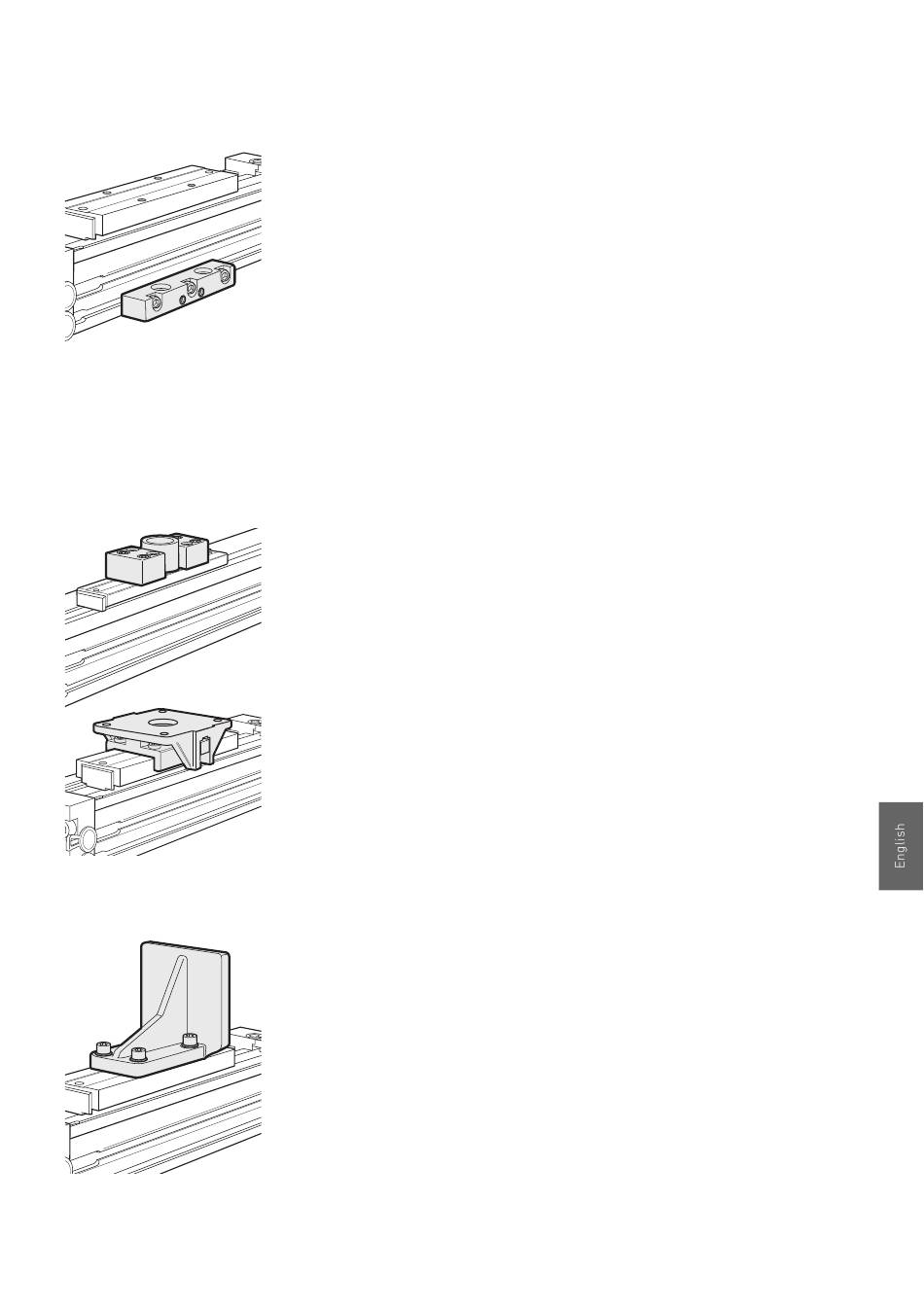

To be fitted to the cylinder shuttle for attachment of a vertical
articulated shaft. The mounting is available in two variants, one for
piston sizes 16 and 25 mm, (upper illustration) and one for piston
sizes 32-80 mm (lower illustration). The variant for piston size
32-80 mm is available in three sizes. See the product catalogue.
00120544
00120545
5.2.4
Mounts on the cylinder shuttle. Pushes loads that do not need to be
attached to the shuttle.
00120543
