44 AVENTICS | RCM | R402002349-BDL-001-AC

Device description

5 Device description
2 3
1
12

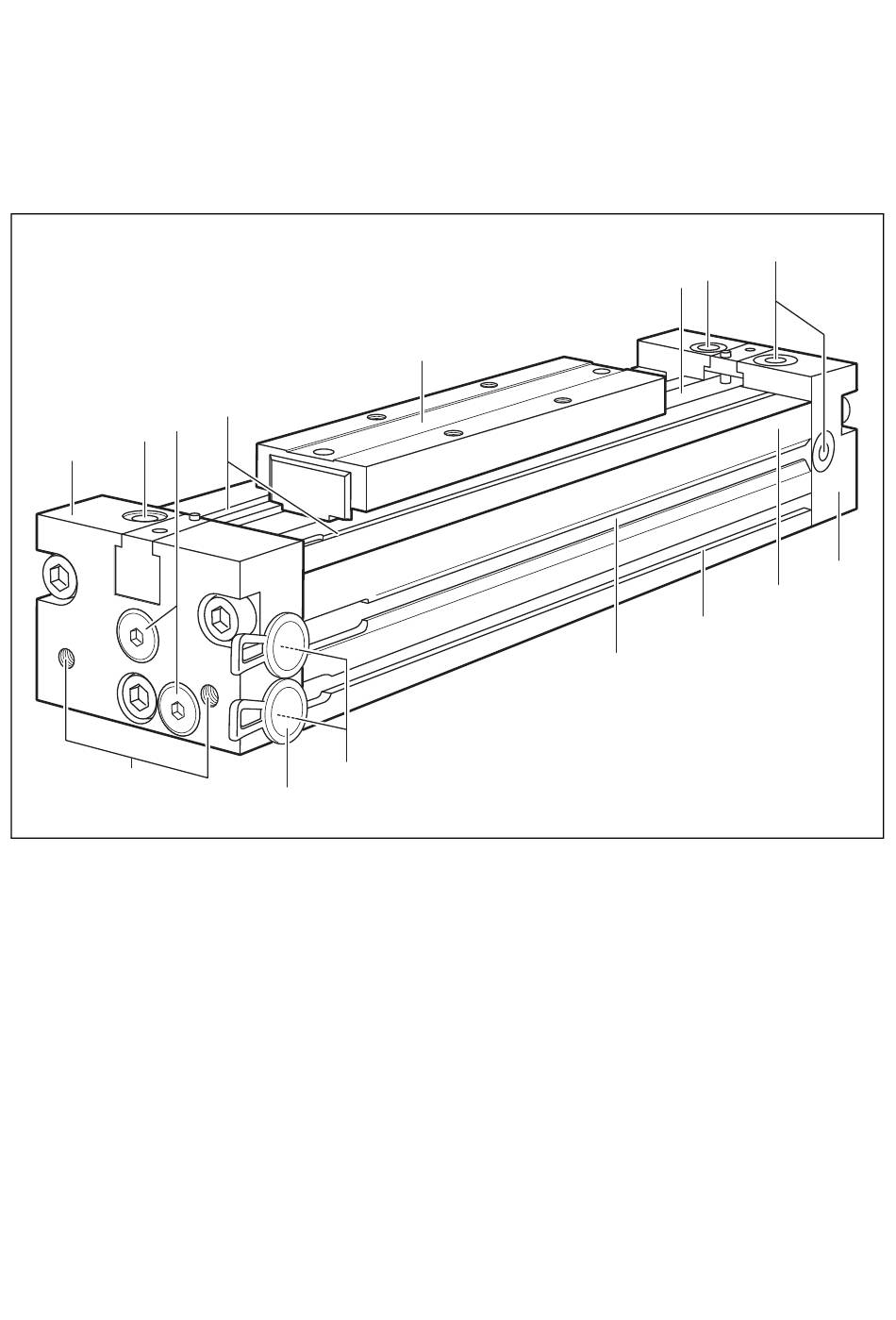

Fig. 1: Designations, standard components
1 End cover, left or right
2 Cushioning screw
(one in each end cover)
3 Blanking plug for alternative compressed
air connection
4 Extra sensor slot
(on cylinders with piston size 32-63 mm)
5 Shuttle, as per configuration
4
10
11
5
6 Sealing strip
7 Cylinder body, as per configuration
8 Slot for foot mountings
9 Sensor slot
10 Compressed air ports, standard
11 Safety plug (two), for temporary sealing
12 Holes to fix end cover mountings or for
direct installation in a frame
3
6 2
7
8
9
1
00123764
