62 AVENTICS | RCM | R402002349-BDL-001-AC
Commissioning
00123767
Note:
7.1

Connecting the compressed air

1. Remove the protective plugs (1) from the connection ports.
2. Make sure that the compressed air is shut off, then connect the
compressed air lines. The illustration below shows the
functions of the ports.
3. Make sure that all unused ports are properly plugged.
1
3
4

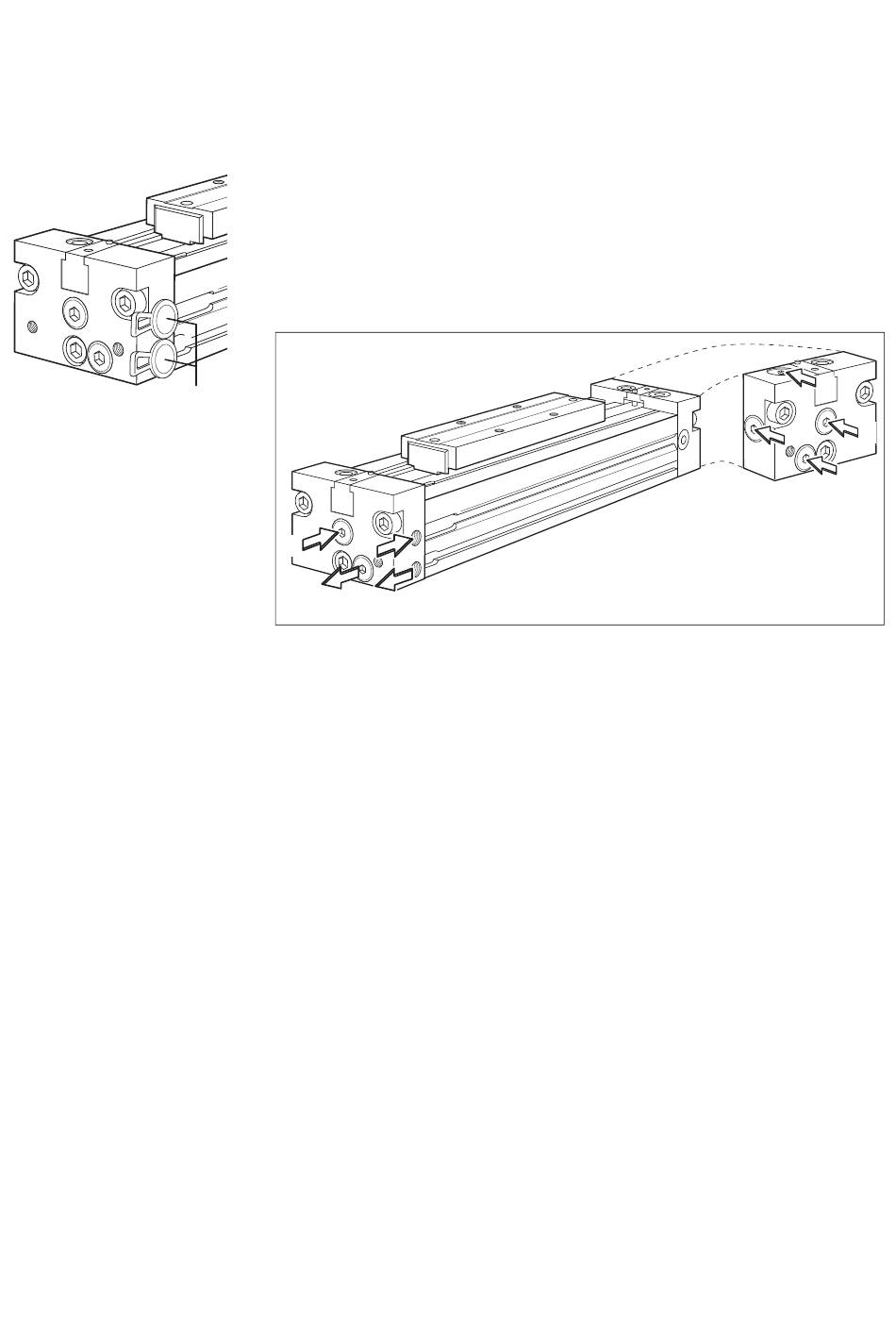

Fig. 12: Connection ports for compressed air
1 Main port; pushes the shuttle to the right
2 Main port; pushes the shuttle to the left
3 Alternative port; pushes the shuttle to the right
4 Alternative port; pushes the shuttle to the left
Where high cylinder speeds are needed, ports can be connected in
parallel.
To prevent uncontrolled cylinder runaway on starting, the
pressure must be increased slowly until the cylinder is in the
right position.
1
2
4
4
4
4
00123766
