Device description
00120546
00120547
00120548
00120549

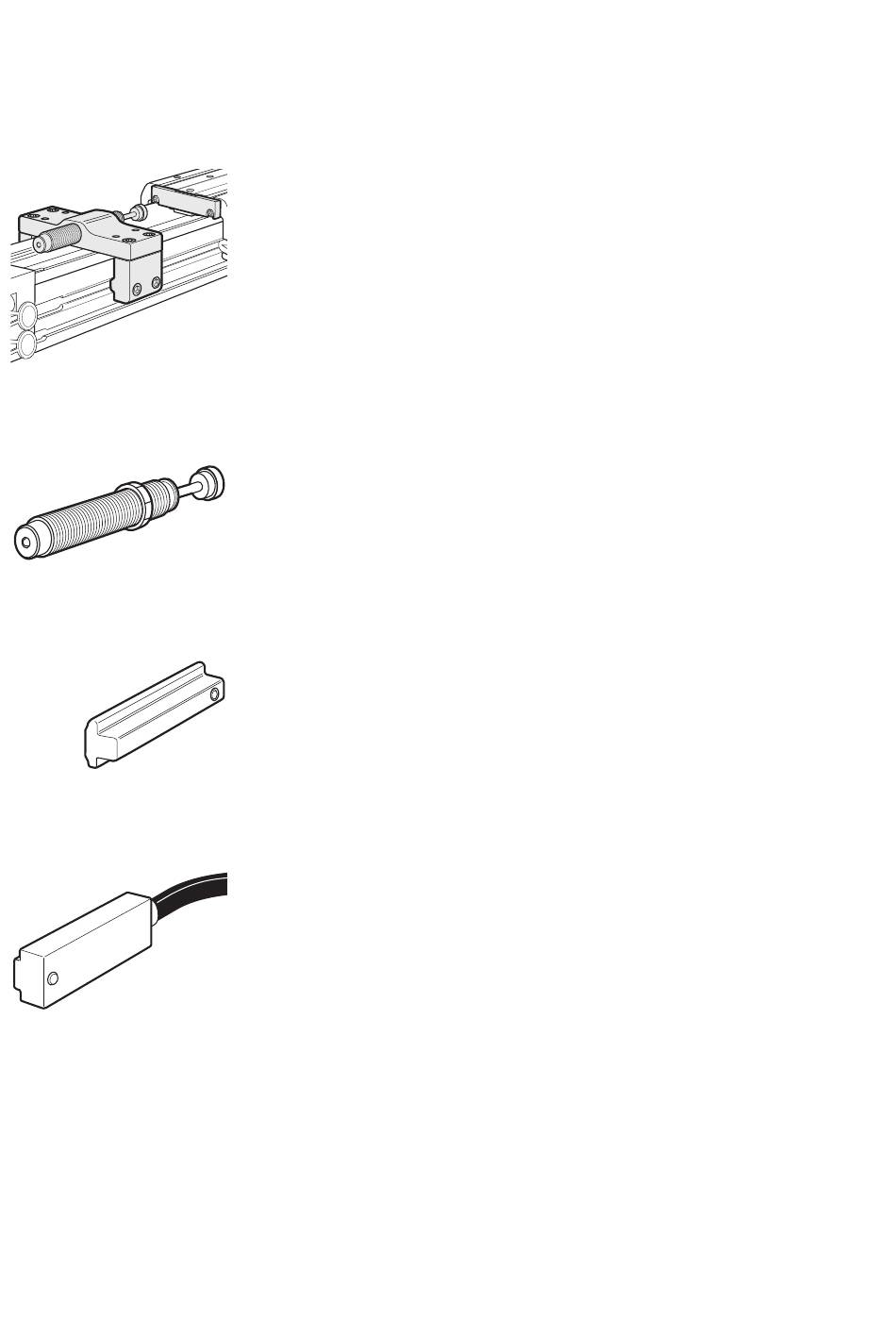

5.2.5 Adjustable stop
Can be used on cylinders with slide bearing guide (RMC-SB) to limit
and adapt the stroke. Must always be used together with
mechanical shock absorber, to be ordered separately.
5.2.6

Shock absorber

Used together with an adjustable stop to slow the shuttle down
gently.
5.2.7 Cable holder
Fits into to the sensor slot, to guide the sensor cables along the
side of the cylinder.
5.2.8 Sensors
Magnetic sensors are used to sense the position of the shuttle on
the cylinder. They are available with different lengths of cable and
with different types of connector. See the product catalogue for a
description of the various types.
5.2.9 Set of square nuts
A set of square nuts is always delivered with cylinder RMC-SB. The
set consists of 10 pcs nuts suitable for the two slots on the top of
the shuttle. The set of nuts can also be ordered separately as a
spare part. See the product catalogue on the Internet.
