46 AVENTICS | RCM | R402002349-BDL-001-AC
Device description
00120537
00120541
5.1.6

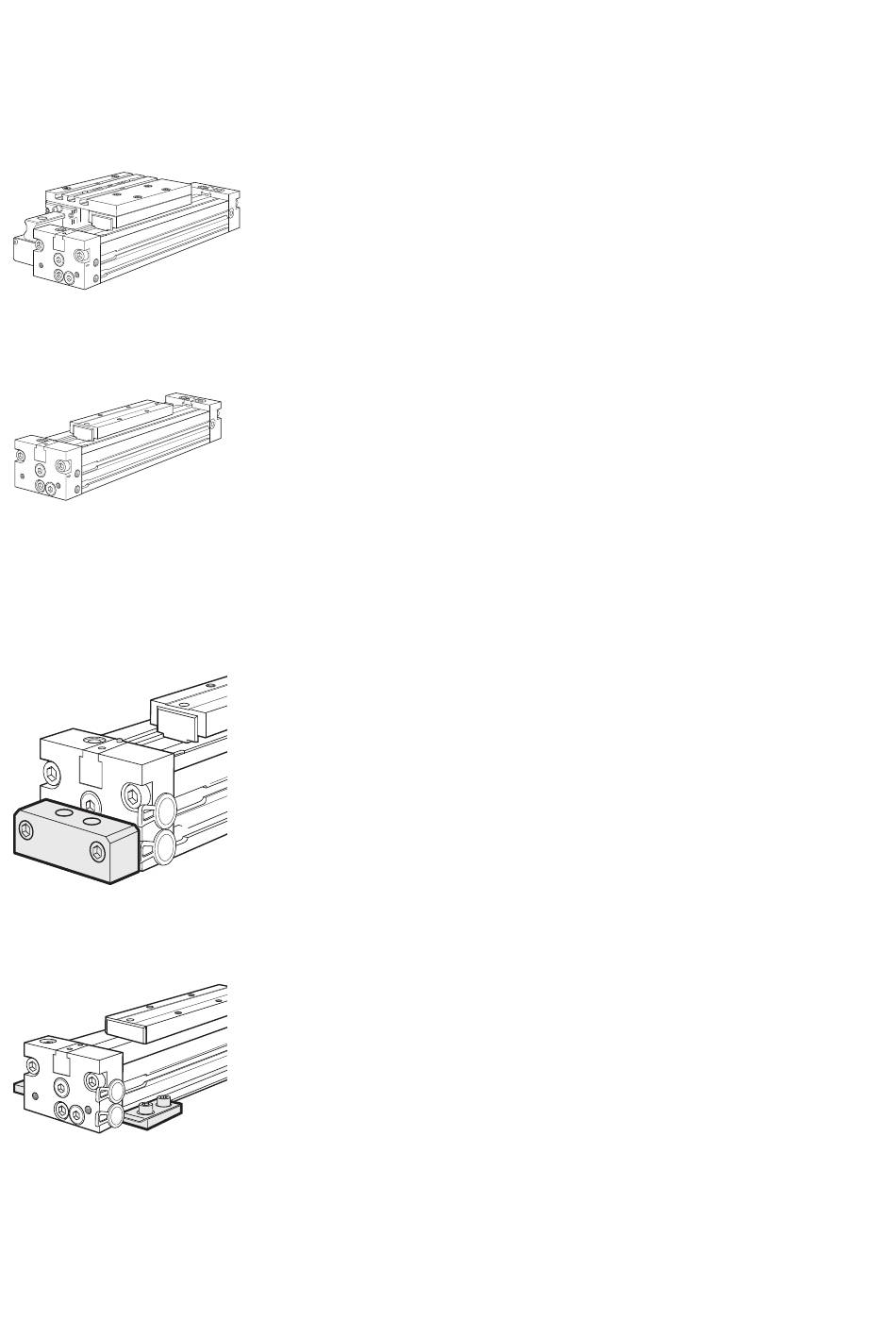

Similar to RMC-HD but the upper mounting surface has an "Easy-
2-Combine" interface, meaning that other AVENTICS cylinders can
be mounted directly with high precision. Available with piston sizes
16, 25 and 32 mm.
00122495
5.1.7
Used only to replace a series 170 cylinder when height dimensions
and zero-stroke length must agree. Not to be used for new design.
Available with piston size 16-80 mm.
5.2

Accessories

5.2.1
Used to install all cylinders. However, cylinders with ball rail
guiding RMC-HD and RMC-HE must also be installed with foot
mountings. End cover mountings are supplied in pairs with screws
for fitting to the end covers of the cylinders.
5.2.2
Can also be used for axial mounting of cylinders. To be distributed
over the length of the cylinder. We recommend fitting one pair for
every 1 m of stroke. Automatically included when a complete
cylinder with foot mountings is ordered. Supplied in pairs with
screws and nuts for attachment to the cylinder.
00123771
RMC-HE Easy-2-Combine
RMC-AV According to series 170
End cover mountings
Foot mountings
