50 AVENTICS | RCM | R499050098–BDL–001–AD
Assembly
1
RCM
A
0
B
p

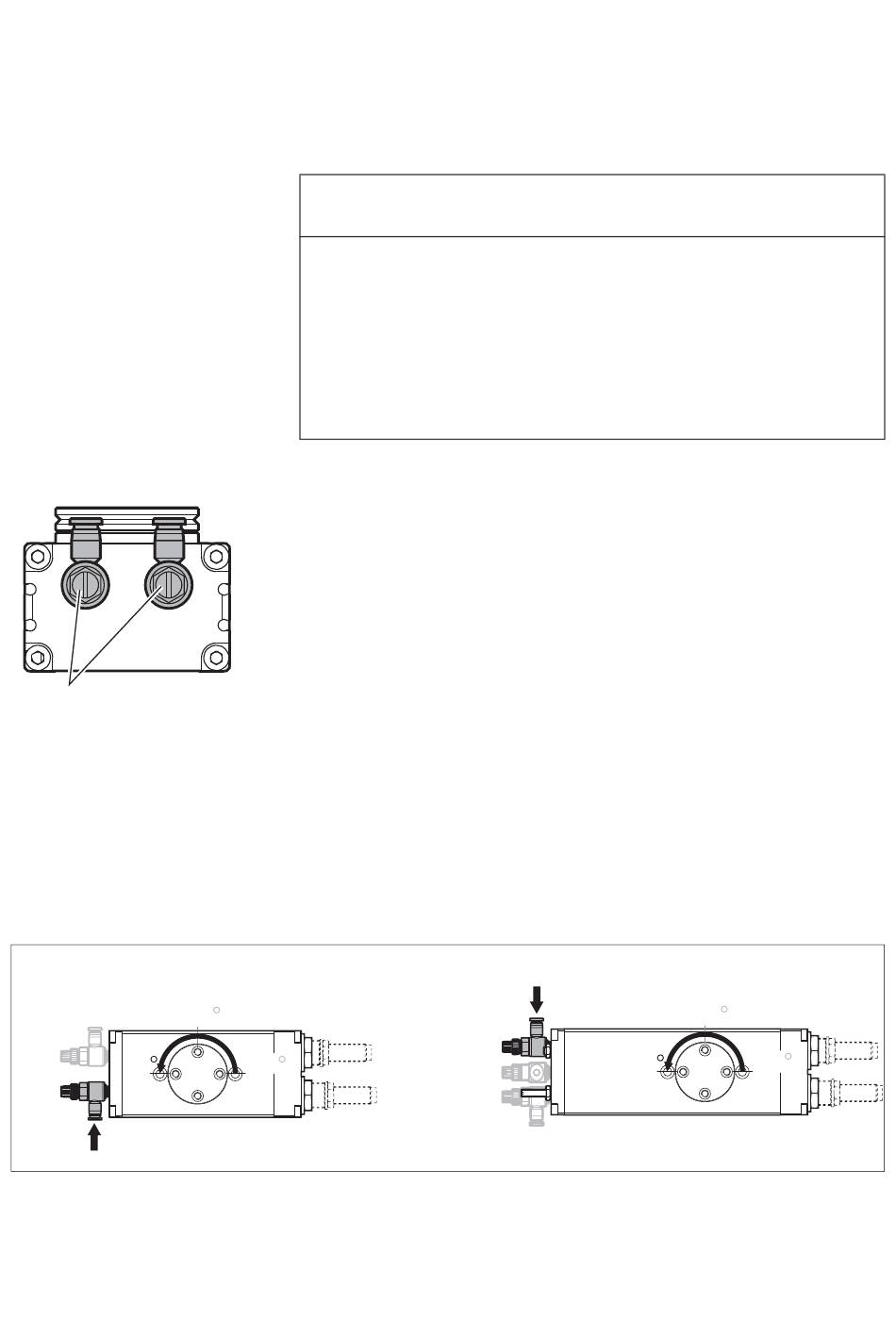

Fig. 10: Compressed air connection B to move to end position 0°
5.2
Danger of confusion of the compressed air connections
The compressed air connections A and B are not uniformly
arranged in the RCM and RCM-...-IP. Malfunctions will occur if
these connections are confused.
Observe the following notes to correctly connect the
O
compressed air.
5.2.1
Use exhaust throttled check-choke valves (1) to set the rotating
speed.
1. Install the check-choke valves directly in the compressed air
connections.
2. Connect hoses to the check-choke valves.
3. First, turn off all of the upstream check-choke valves until
they are completely closed.
4. Then open them again by turning them by one turn.
5.2.2
1. Exhaust connections A and C (C only in RCM-...-IP).
2. Apply compressed air to connection B.
90
180

Compressed air connections

CAUTION

Installing check-choke valves

Moving to end position 0° (counterclockwise)
p
B
C
A
RCM-...-IP
90
0
180
