special cable recess (6) at the bottom (or inwards) into the
sensor slot.
6. Finally tighten the pin (5) in the cable holder so that it locks the
cable in the slot.
6.3.5
6

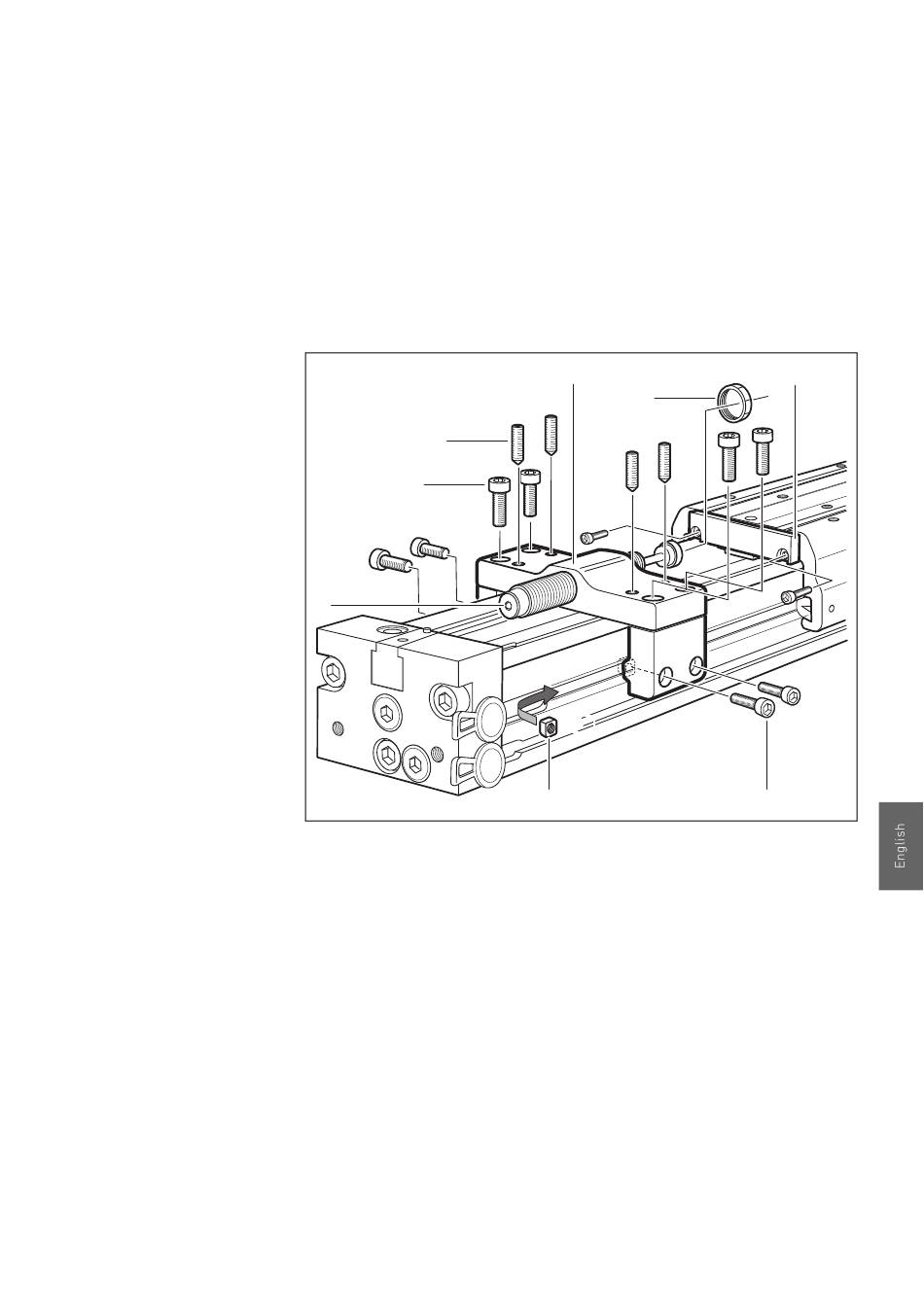

Fig. 11: Fitting the adjustable stop and shock absorber
Note: Fit any sensors before fitting the adjustable stop.
1. Fit the metal bar (1) to the end of the shuttle.
2. Assemble the three parts of the stop (2) with the screws
supplied (3), but very loosely so that the stop can be threaded
over the cylinder.
3. Measure up and position the stop in the correct place on the
cylinder body.
4. Squeeze together the side pieces of the stop against the
cylinder body and tighten the screws (3) that hold the stop
together. Tightening torque 6 Nm.
5. Fix the stop by sliding the supplied nuts (4) into the sensor slot
and tightening the corresponding screws (5) to 6 Nm.
AVENTICS | RCM | R402002349-BDL-001-AC
Fitting the adjustable stop and shock absorber
8
3
2+2
4
2
7
57
Installation
1
00120556
5
