54 AVENTICS | RCM | R402002349-BDL-001-AC
Installation
6.3

Fitting accessories

All accessories can either be ordered when the cylinder is being
configured, or separately. They are always supplied unfitted.
6.3.1 Fitting the shuttle angle bracket
Fit the bracket to the shuttle with the screws supplied (M6) and
washers. Tightening torque 10 Nm.

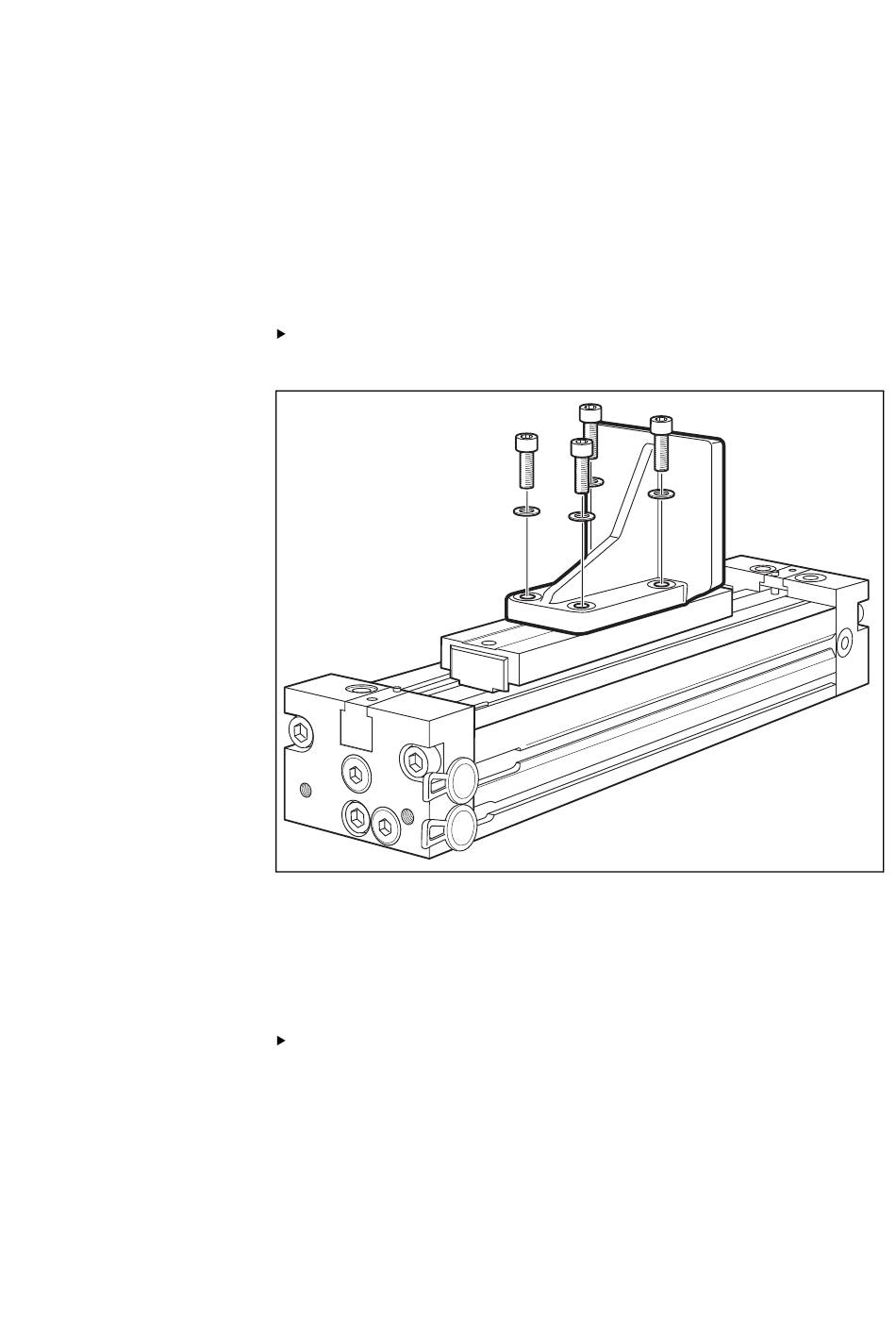

Fig. 7: Fitting the shuttle angle bracket
6.3.2 Fitting the adjustable articulated mounting
16-25 mm
Fit the accessory to the shuttle with the screws supplied (M4)
and washers. Tightening torque 3 Nm.
00120553
