8.4 Description of operating elements

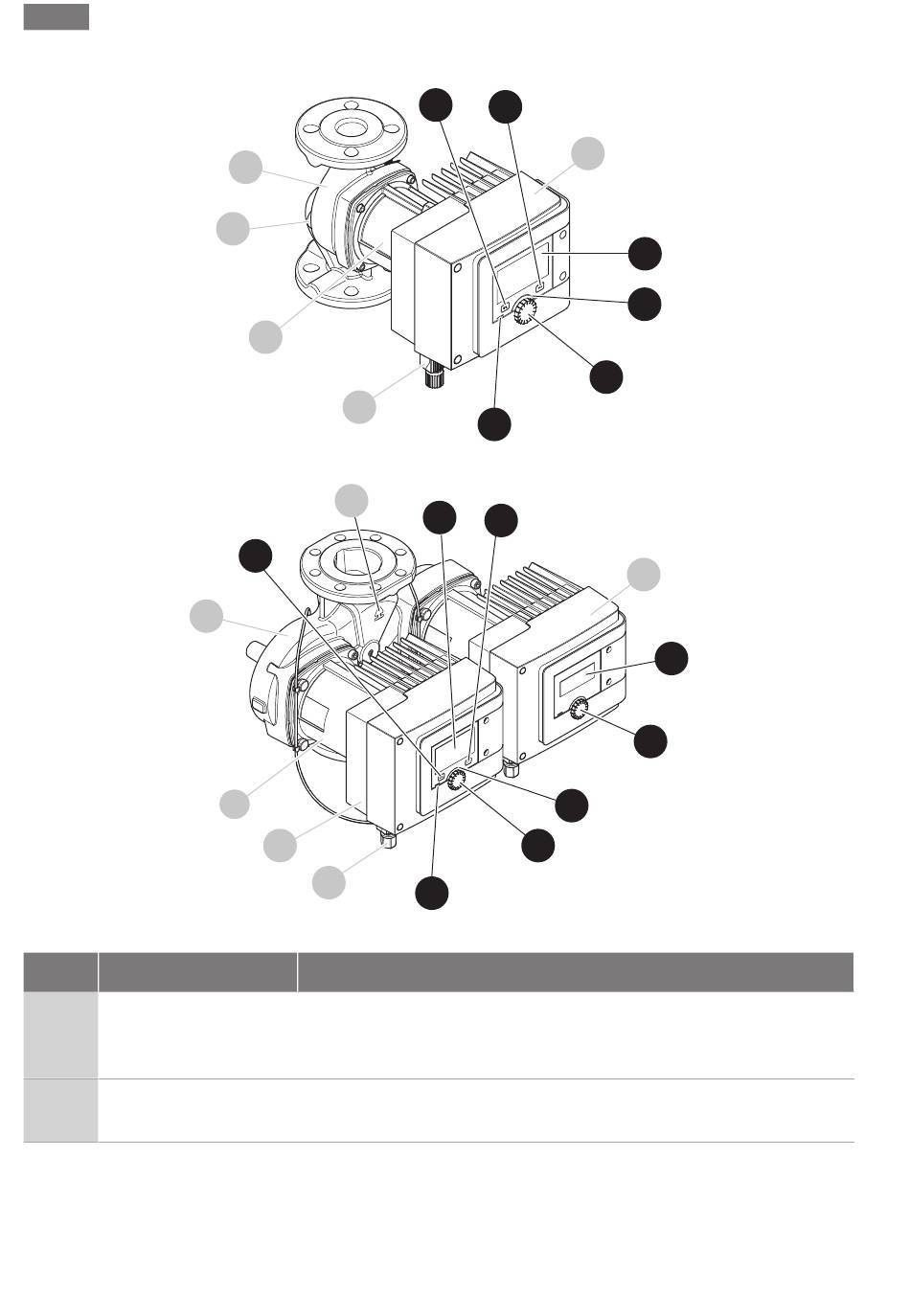

Fig. 17: Operating elements (single pump)
Fig. 18: Operating elements (twin-head pump)
Item Name
3.1 Graphic display
3.2 Green LED indicator
48
1
1.1
2
4
1.1
3.5
1
2
3
4
Explanation
Provides information about settings and pump status.
Self-explanatory user interface for adjusting the pump. The display
screen cannot be rotated.
LED lights up: Pump is supplied with voltage and ready for operation.
There are no warnings or errors.
