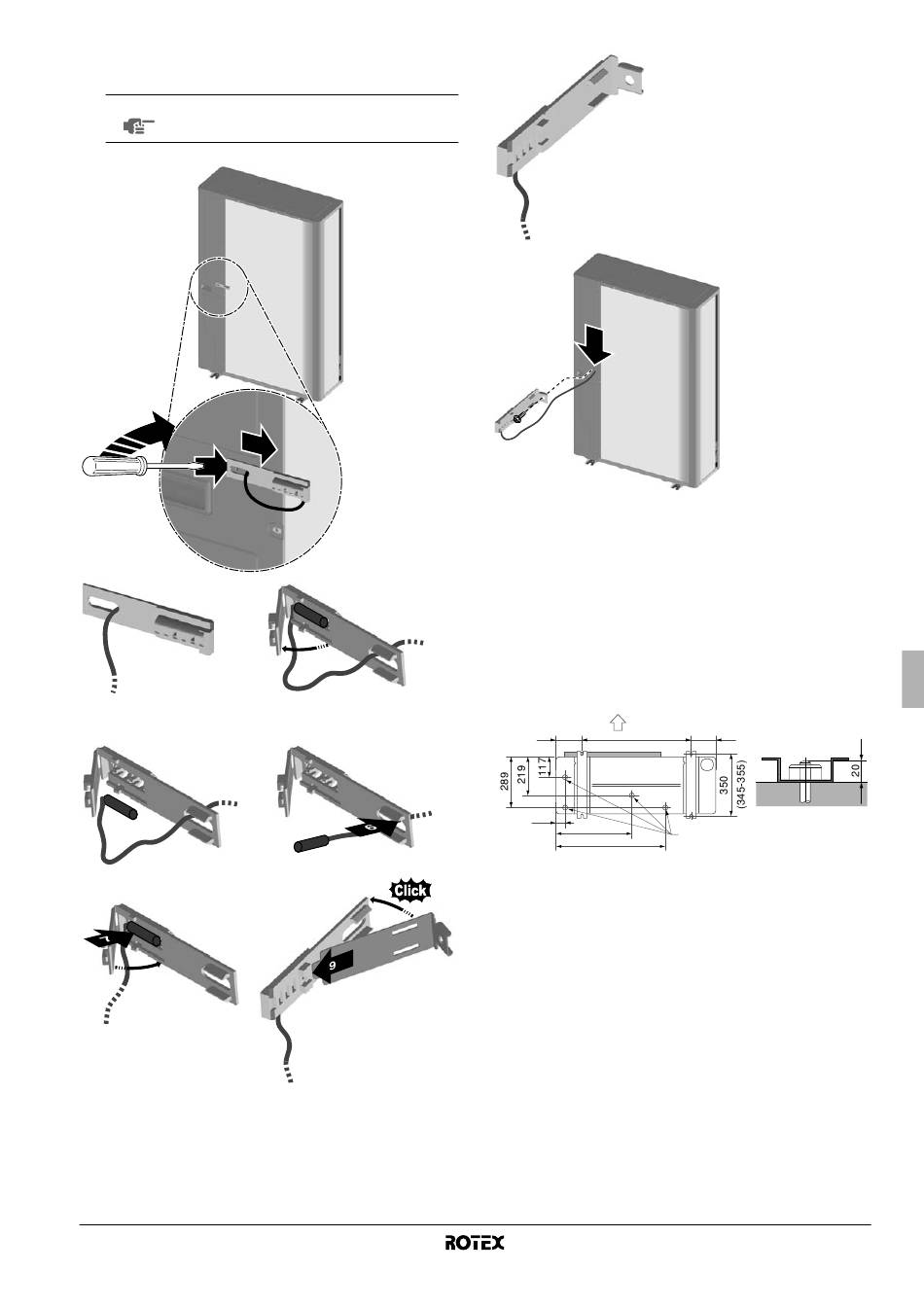

Follow the procedure as described below for modifying the
position of the air thermistor (R1T). The thermistor fixture is
delivered in the accessory bag.
NOTE Spare thermistor fixing plate is delivered in the
accessory bag.
2
1
5
8
RRRQ011~016AAV1+Y1
Outdoor unit for air to water heat pump
4PW55782-1B
3
4
10
11

4.2. Precautions on installation

■
Check the strength and level of the installation ground so that
the unit will not cause any operating vibration or noise after
installation.
■
In accordance with the foundation drawing in the figure, fix the
unit securely by means of the foundation bolts. (Prepare 4 sets
of M12 foundation bolts, nuts and washers each which are
available on the market.)
■
It is best to screw in the foundation bolts until their length are
20 mm from the foundation surface.
A
140 620
B
47
423
614
A Discharge side
B Bottom view (mm)
C Drain hole
140
C
Installation manual
