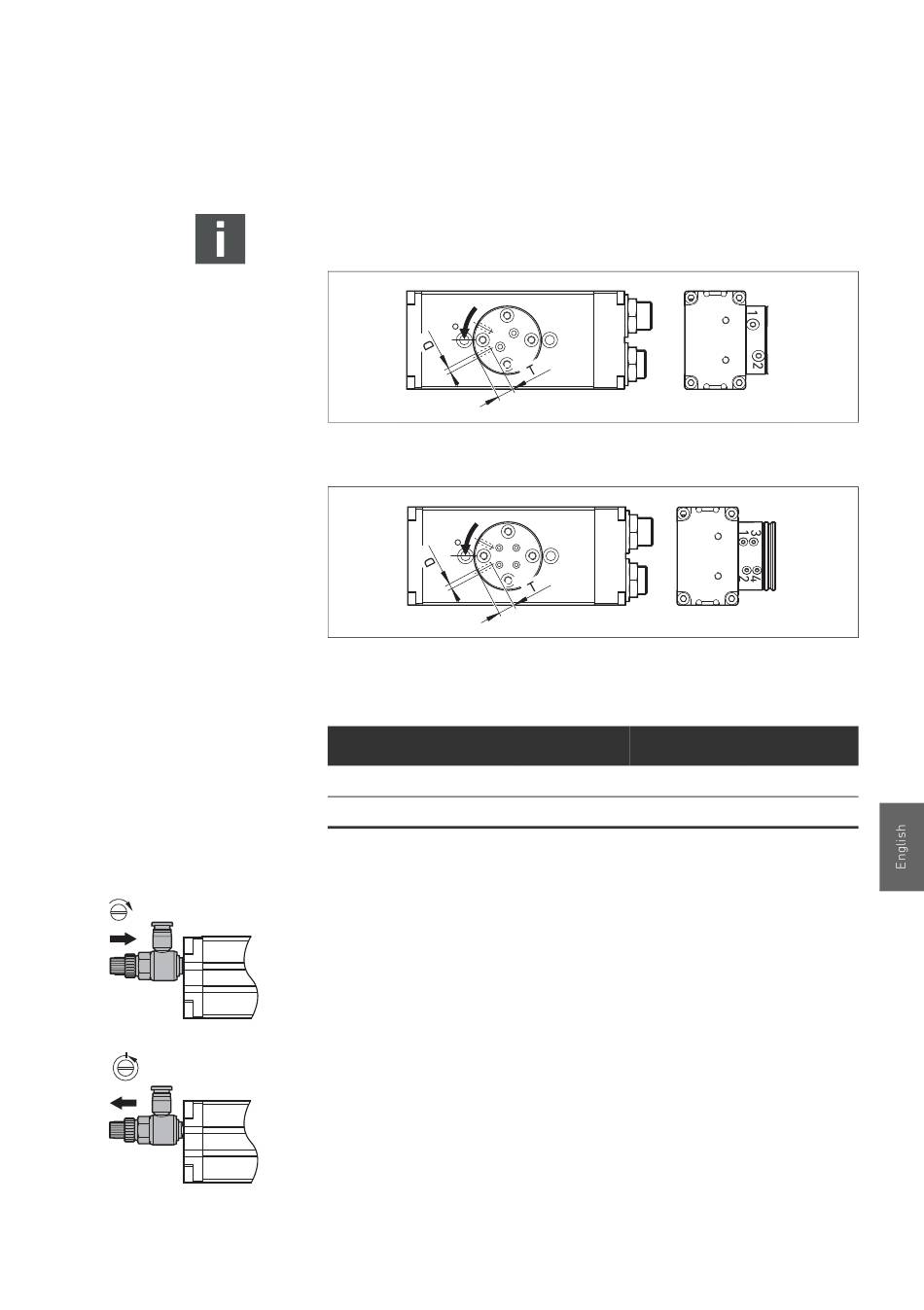

Connecting the air ducts (AP)

Maximum permissible pressure: 8 bar.
0
2
Fig. 18: 2x air ducts (at end position 0°)
1
0
4
Fig. 19: 4x air ducts (at end position 0°)
Table 9: Air duct connection thread
RCM-12
D M3
T [mm] 4
6.4

Ventilating

1. First, turn off all of the upstream check-choke valves until
they are completely closed.
2. Then open them again by one turn.
Make sure that the operating conditions are within the
O
permissible ranges (see the chapter 11 "Technical data" on
page 66).
Belüften Sie eine der beiden Drehmodul-
O
Druckluftanschlüsse durch langsame Belüftung.
The rotary flange will move to the end position.
1
2
3
RCM-16 RCM-20
M3
4
59
Commissioning
