Do not install the unit in places with high humidity (e.g.
bathroom).
■
Do not install the unit in places often used as work place.
In case of construction works (e.g. grinding works) where a lot of
dust is created, the unit must be covered.
■
Take care that in the event of a water leak, water can not cause
any damage to the installation space and surroundings.
■
Do not place any objects or equipment on top of the unit.
■
Install the power wire at least 1 meter away from televisions or
radios to prevent image interference or noise.
(Depending on the radio waves, a distance of 1 meter may not
be sufficient to eliminate the noise.)
■
Do not install the unit in places such as the following:
■ Where there is mist of mineral oil, oil spray or vapour.
Plastic parts may deteriorate, and cause them to fall out or
water to leak.
■ Where corrosive gas, such as sulphurous acid gas, is
produced.
Corrosion of copper pipes or soldered parts may cause the
refrigerant to leak.
■ Where there is machinery which emits electromagnetic
waves.
Electromagnetic waves may disturb the control system, and
cause malfunction of the equipment.
■ Where the air contains high levels of salt.
■ Where voltage fluctuates a lot, such as that in factories.
■ In vehicles or vessels.
■ Where acidic or alkaline vapour is present.
INFORMATION
If the installation is equipped with a domestic hot water
tank (optional), please refer to the domestic hot water tank
installation manual.

6.2. Dimensions and service space

Unit of measurement: mm
Dimensions of the unit, see figure 3.
1 Flexible drain hose
2 Water outlet connection
3 Water inlet connection
4 Refrigerant liquid connection
5 Refrigerant gas connection
FBSP Female British Standard Pipe
MBSP Male British Standard Pipe
Required service space, see figure 2.
RKHBH/X016BB
Indoor unit for air to water heat pump system
4PW62576-1 – 10.2010

6.3. Inspecting, handling and unpacking the unit

■
The indoor unit is packed in a cardboard box, fixed by straps on
a wooden pallet.
■
At delivery, the unit must be checked and any damage must be
reported immediately to the carrier claims agent.
■
Check if all indoor unit accessories (see "4. Accessories" on
page 9) are enclosed.
■
Bring the unit as close as possible to its final installation position
in its original package in order to prevent damage during
transport.
■

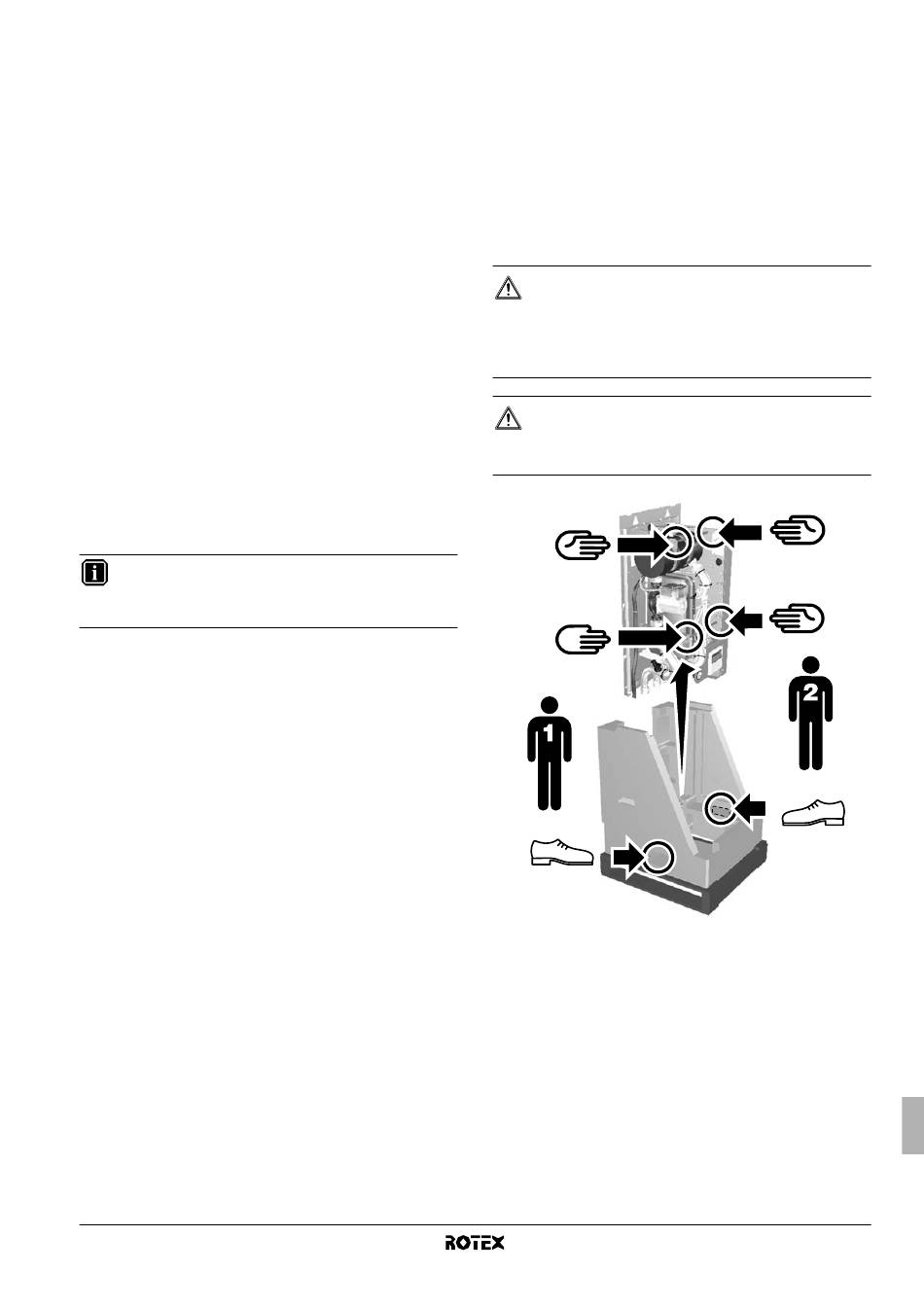

The indoor unit weighs approximately 48 kg and should be lifted
by two persons using the two lifting bars provided.
CAUTION
■
Do not grasp the switch box or piping to lift the unit!
Two lifting bars are provided to lift the unit.
■
Safely dispose
materials, such as nails and other metal or wooden
parts, may cause stabs or other injuries.
WARNING
Tear apart and throw away plastic packaging bags so that
children will not play with them. Children playing with
plastic bags face danger of death by suffocation.
of packing materials. Packing
