5.
O
VERVIEW OF THE INDOOR UNIT

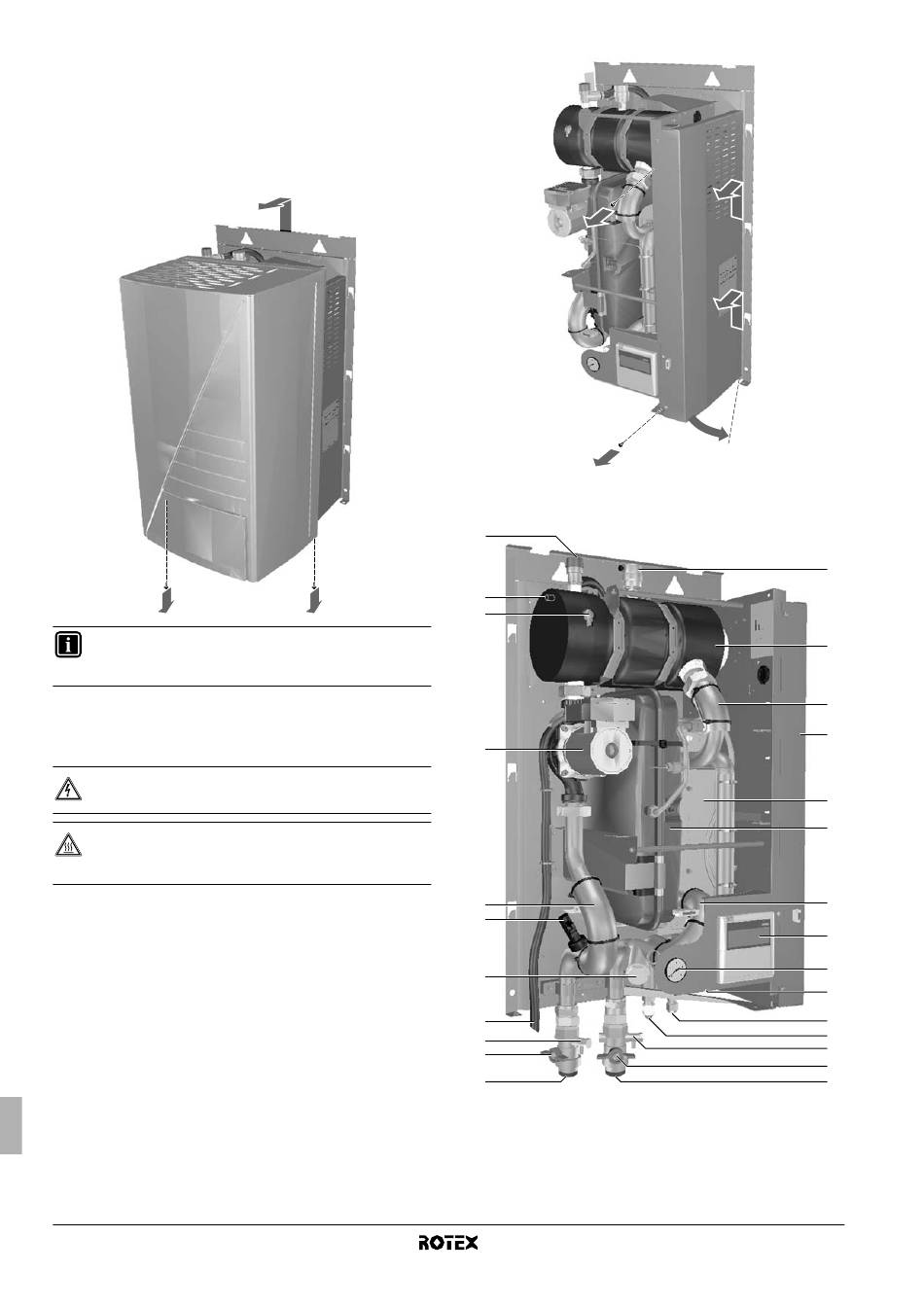

5.1. Opening the indoor unit

The front flap on the indoor unit cover gives access to the
manometer and user interface.
The indoor unit cover can be removed by removing the 2 bottom
screws and unhitching the cover.
INFORMATION
Make sure to fix the cover with the screws when installing
the cover (screws are delivered as accessory).
To gain access to the switch box components – e.g. to connect
the field wiring – the switch box service panel can be removed.
Thereto, loosen the front screws and unhitch the switch box
service panel.
DANGER: ELECTRICAL SHOCK
See "2. General safety precautions" on page 2.
DANGER: DO NOT TOUCH PIPING AND INTERNAL
PARTS
See "2. General safety precautions" on page 2.
Installation manual
10
1
1
1

5.2. Main components

20
19
18
17
3
16
14
21
13
10
12
Indoor unit for air to water heat pump system
3
3
3
3
2
1
2
3
4
5
6
3
7
15
3
8
9
13
10
11
RKHBH/X016BB
4PW62576-1 – 10.2010
