4. O
VERVIEW OF UNIT

4.1. Opening the unit

DANGER: ELECTRICAL SHOCK
See "2. General safety precautions" on page 2.
DANGER: DO NOT TOUCH PIPING AND INTERNAL
PARTS
See "2. General safety precautions" on page 2.

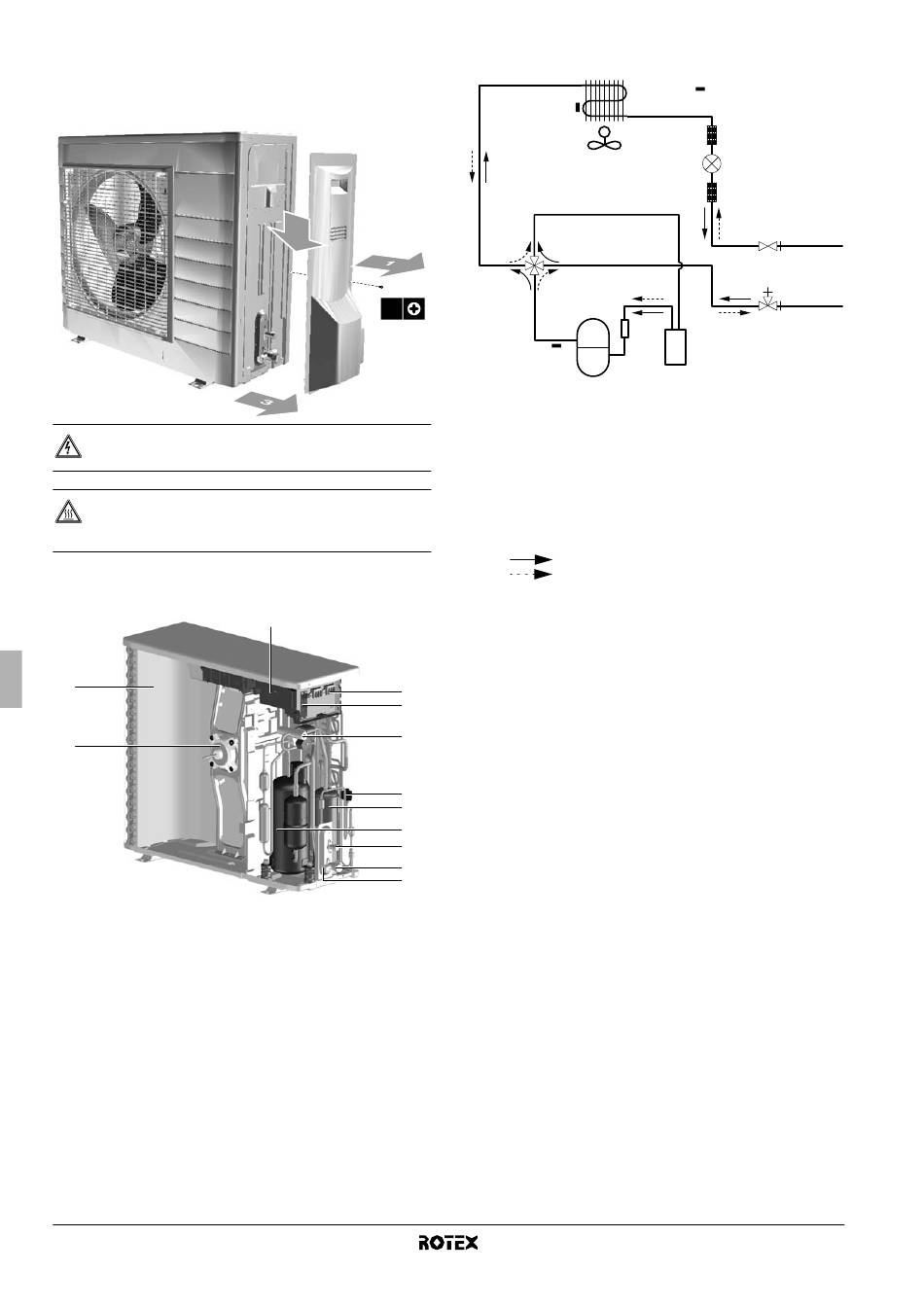

4.2. Main components

1
2
1 Heat exchanger
2 Fan motor
3 Switch box with main pcb (inverter and control pcb)
4 Terminal communication and power supply
5 Service pcb
6 4-way valve
7 Electronic expansion valve (main)
8 Accumulator
9 Compressor
10 Liquid stop valve
11 Gas stop valve
12 Service port
Installation manual
5
2
1x
3
4
5
6
7
8
9
10
11
12

4.3. Functional diagram

2
3
M
4
12
11 10
1 Thermistor (air)
2 Heat exchanger
3 Thermistor (heat exchanger)
4 Fan motor
5 Filter
6 Electronic expansion valve
7 Liquid stop valve
8 Gas stop valve with service port
9 Accumulator
10 Compressor
11 Thermistor (discharge)
12 4-way valve (ON=heating)
Cooling
Heating
1
5
6
5
7
8
9
RRLQ006~008BBV3
Outdoor unit for air to water heat pump
4PW68222-1 – 02.2011
