3.3. Installation

■
For installation of the indoor unit, refer to the indoor unit
installation manual.
■
Never operate the unit without the thermistors (R3T, R4T) or
pressure sensors (S1NPH, S1PH), burning of the compressor
may result.
■
Be sure to confirm the model name and the serial no. of the
outer (front) plates when attaching/detaching the plates to avoid
mistakes.
■
When closing the service panels, take care that the tightening
torque does not exceed 4.1 N•m.
3.4. Model identification
RRLQ units include special equipment (insulation, bottom plate
heater,...) to ensure good operation in areas where low ambient
temperature can occur together with high humidity conditions. These
models contain countermeasures (insulation, bottom plate heater,...)
to prevent freeze up.
A RRLQ_CA outdoor unit can be connected to a RKHBH/
X016* indoor unit (bottom plate heater at outdoor unit is
controlled by the outdoor pcb).

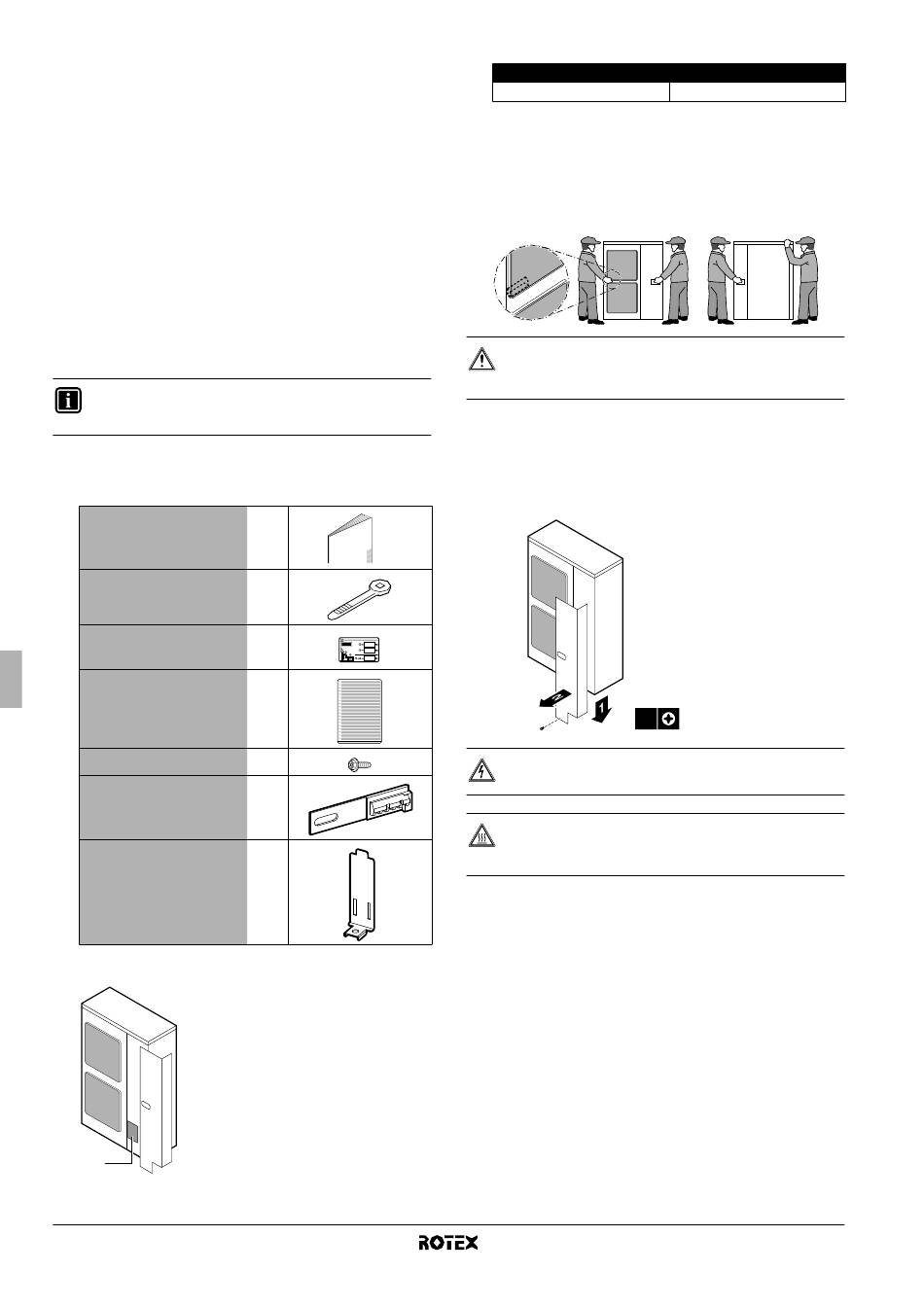

3.5. Accessories

■
Check if the following accessories are included with the unit
Installation manual
Cable tie
Fluorinated greenhouse gases
label
Multilingual fluorinated
greenhouse gases label
Screw (M4x12)
Thermistor fixing plate
(spare)
Thermistor fixture
See the figure below for the location of the accessories.
1
1
Installation manual
4
1
2
1
1
1
1
1
Accessories
■
Possible options
Snow cover
RK016SNC
(a) This demand pcb option is only applicable for the "setting of demand
running" function. See installation manual of KRP58M51.

3.6. Handling

As shown in the figure below, slowly move the unit by grabbing the
left and right grips. Position your hands on the corner instead of
grabbing the air inlet to avoid deforming the casing.
CAUTION
To avoid injury, do not touch the air inlet or aluminium fins
of the unit.
4. O
VERVIEW OF UNIT

4.1. Opening the unit

1x
DANGER: ELECTRICAL SHOCK
See "2. Safety considerations" on page 2.
DANGER: DO NOT TOUCH PIPING AND INTERNAL
PARTS
See "2. Safety considerations" on page 2.
Demand pcb
(a)
KRP58M51
RRLQ011~016CAV3+W1
Outdoor unit for air to water heat pump
4PW57794-1 – 10.2010
