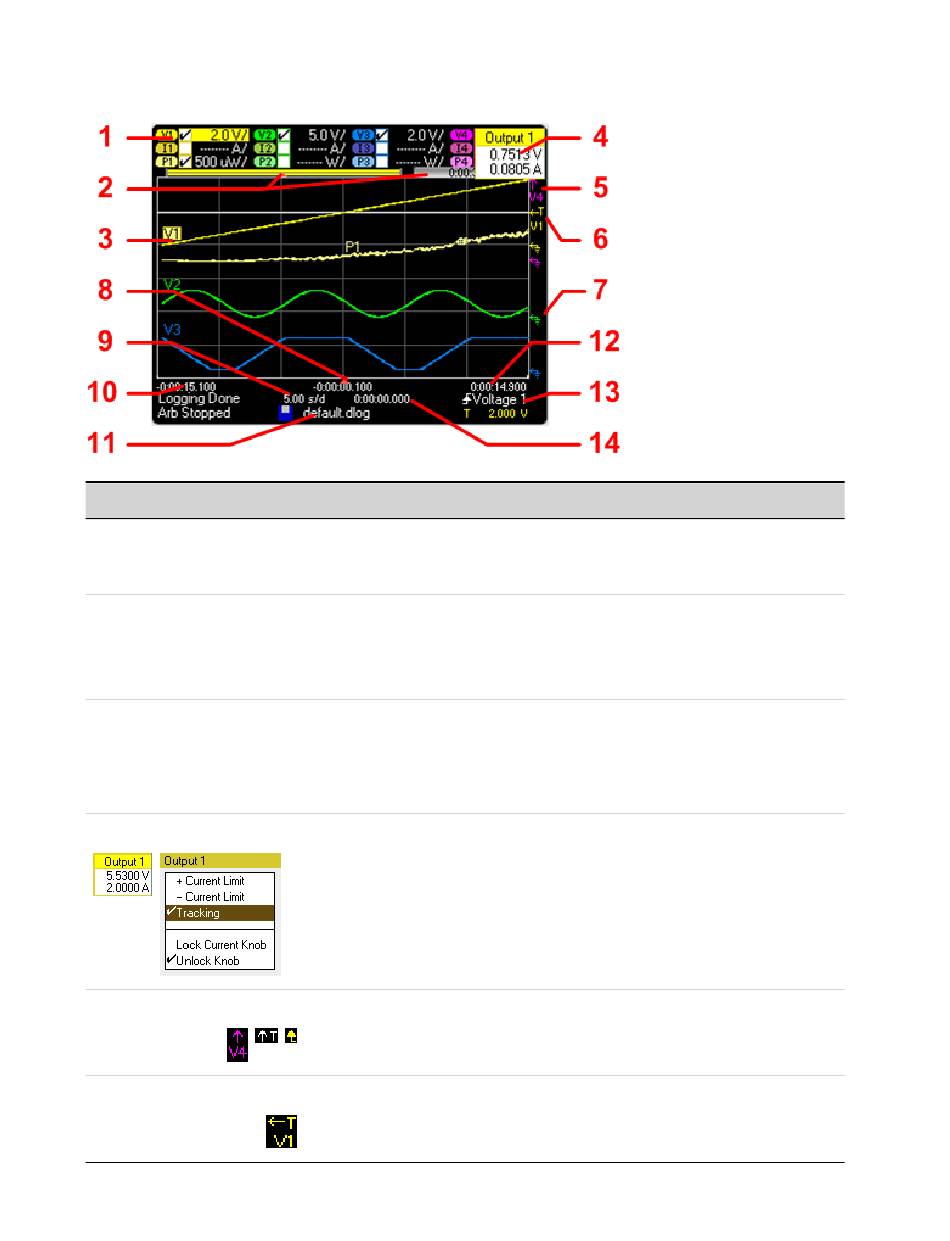

Standard View
Symbol/Field
1 Trace Controls
2 Data Bar
Time Elapsed
3 Data Traces
4 Output Pop-ups
5 Out of View Arrows
7 Trigger Level
Keysight N6705C User's Guide
Description
Identifies the volt/div. or curr/div. setting. √ indicates the trace is on.
Dashes (----) indicate the trace is off.
Select the trace and press Enter to turn it on or off.
The data bar represents all of the logged data. The yellow part indicates the portion of the data that
is visible on the display. The black part represents the data that is not visible.
Indicates the time elapsed during the data log and the total duration. The values match when data
logging finishes.
Voltage trace labels appear on the left side of the grid (V1 V2, V3, V4).
Current trace labels appear on the right side of the grid (I1, I2, I3, I4).
Power trace labels appear on the center of the grid (P1, P2, P3, P4).
If a portion of a trace is red, it means that portion of the trace is out of range.
Push the Trigger Level knob to auto-scale the data traces.
Turning the voltage and current knobs displays a pop-up dialog showing the present output
settings.
Pushing the voltage and current knobs displays a pop-up dialog allowing the following actions:
• Lock/Unlock the voltage or current knobs.
• On Models N678xA, select a limit parameter to control or select limit tracking.
Indicate that the trace, V4 in the figure, is out of view.
Use the Vertical Volt/Div knob or the Vertical Offset knob to bring the trace into view.
Push the Trigger Level knob to autoscale the data traces.
Shows the location of the voltage or current trigger level and output. In this example, the voltage
trigger level of output 1 is shown. The trigger source and amplitude are shown at the bottom right
of the display.
4 Using the Measurement Functions
155
