As this unit is equipped with an inverter, installing a phase
advancing capacitor not only will deteriorate power factor
improvement effect, but also may cause capacitor abnormal
heating accident due to high-frequency waves. Therefore, never
install a phase advancing capacitor.
CAUTION
Be sure to install the required fuses or circuit breakers.

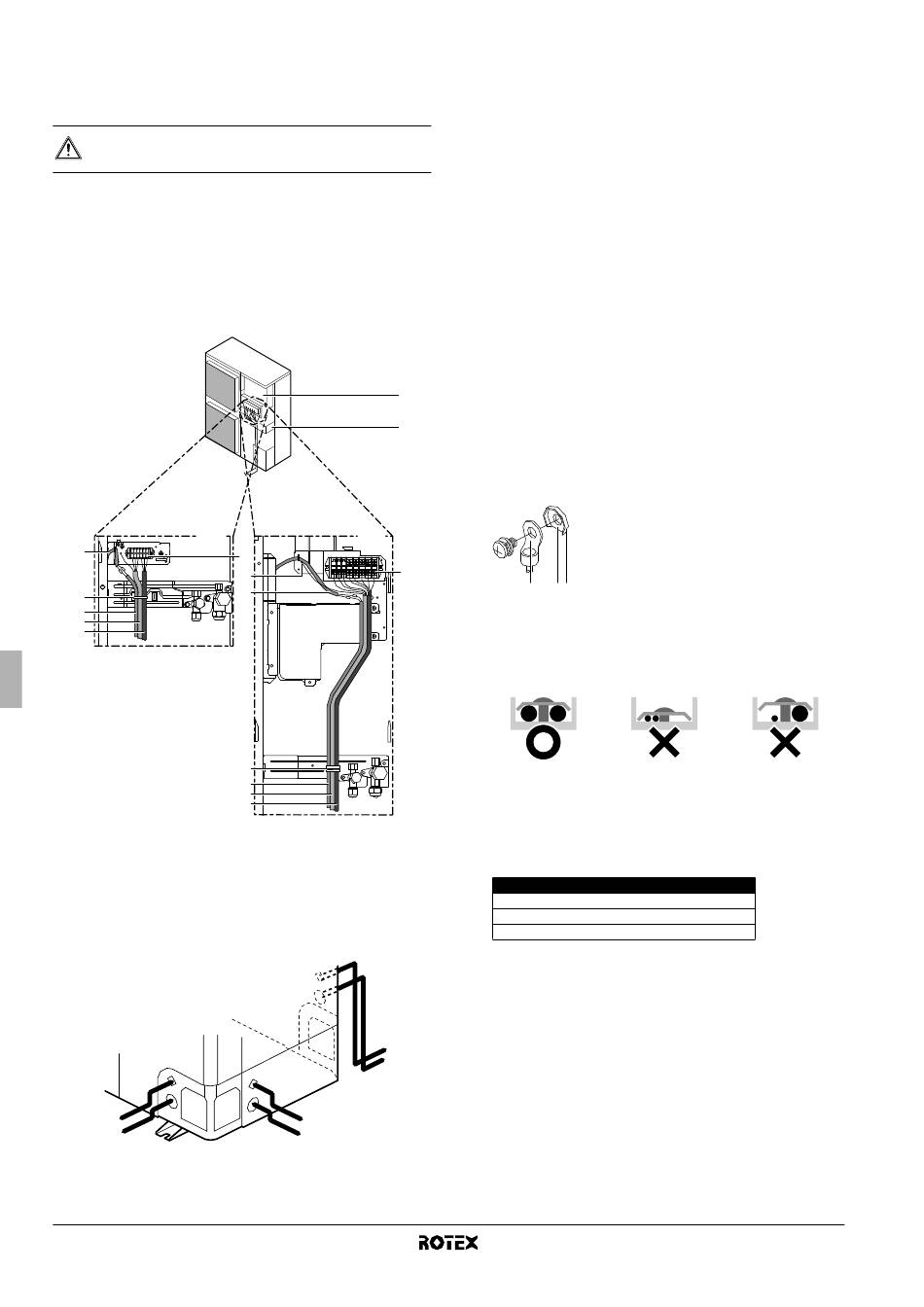

14.2. Connecting power supply and interunit wiring

Secure the earth wire to the stop valve attachment plate so that
it does not slide.
Secure the earth wire to the stop valve attachment plate one
more time along with the electric wiring and the inter-unit wiring.
Lay the electrical wiring so that the front cover does not rise up
when doing wiring work and attach the front cover securely.
V3
7
4
8
5
6
1
Switch box
2
Stop valve attachment plate
3
Earth
4
Cable tie
5
Wiring between units
6
Power supply and earth wiring
2
1
1
Power supply, earth wiring, and if applicable: bottom plate heater
wire
2
Wiring between unit
Installation manual
16
1
2
W1
3
3
3
7
4
8
5
6
2
1
2
1
When cables are routed from the unit, a protection sleeve for the
conduits (PG-insertions) can be inserted at the knockout hole.
(See figure 3)
1
Wire
2
Bush
3
Nut
4
Frame
5
Hose
A
Inside
B
Outside
When you do not use a wire conduit, be sure to protect the wires
with vinyl tubes to prevent the edge of the knockout hole from
cutting the wires.
Follow the electric wiring diagram for electrical wiring works
(delivered with the unit, located at the inside of the front plate).
Form the wires and fix the cover firmly so that the cover may be
fit in properly.
14.3. Precautions on wiring of power supply and
inter-unit wiring
Use a round crimp-style terminal for connection to the power
supply terminal board. In case it cannot be used due to
unavoidable reasons, be sure to observe the following
instruction.
1
Round pressure terminal
2
Cut out section
3
Cup washer
1
2 3
-
Do not connect wires of different gauge to the same power
supply terminal. (Looseness in the connection may cause
overheating.)
-
When connecting wires of the same gauge, connect them
according to the below figure.
Use the correct screwdriver to tighten the terminal screws.
Small screwdrivers can damage the screw head and prevent
appropriate tightening.
Over-tightening the terminal screws can damage the screws.
See the table below for tightening torques for the terminal
screws.
Tightening torque (N•m)
M4 (X1M)
M5 (X1M)
M5 (EARTH)
Refer to the installation manual attached to the indoor unit for
wiring of indoor unit, etc.
Attach an earth leakage circuit breaker and fuse to the power
supply line. (See figure 6)
1
Earth leakage circuit breaker
2
Fuse
3
Remote controller
In wiring, make certain that prescribed wires are used, carry out
complete connections, and fix the wires so that outside forces
are not applied to the terminals.
1.2~1.8
2.0~3.0
3.0~4.0
RRLQ011~016CAV3+W1
Outdoor unit for air to water heat pump
4PW57794-1 – 10.2010
