76

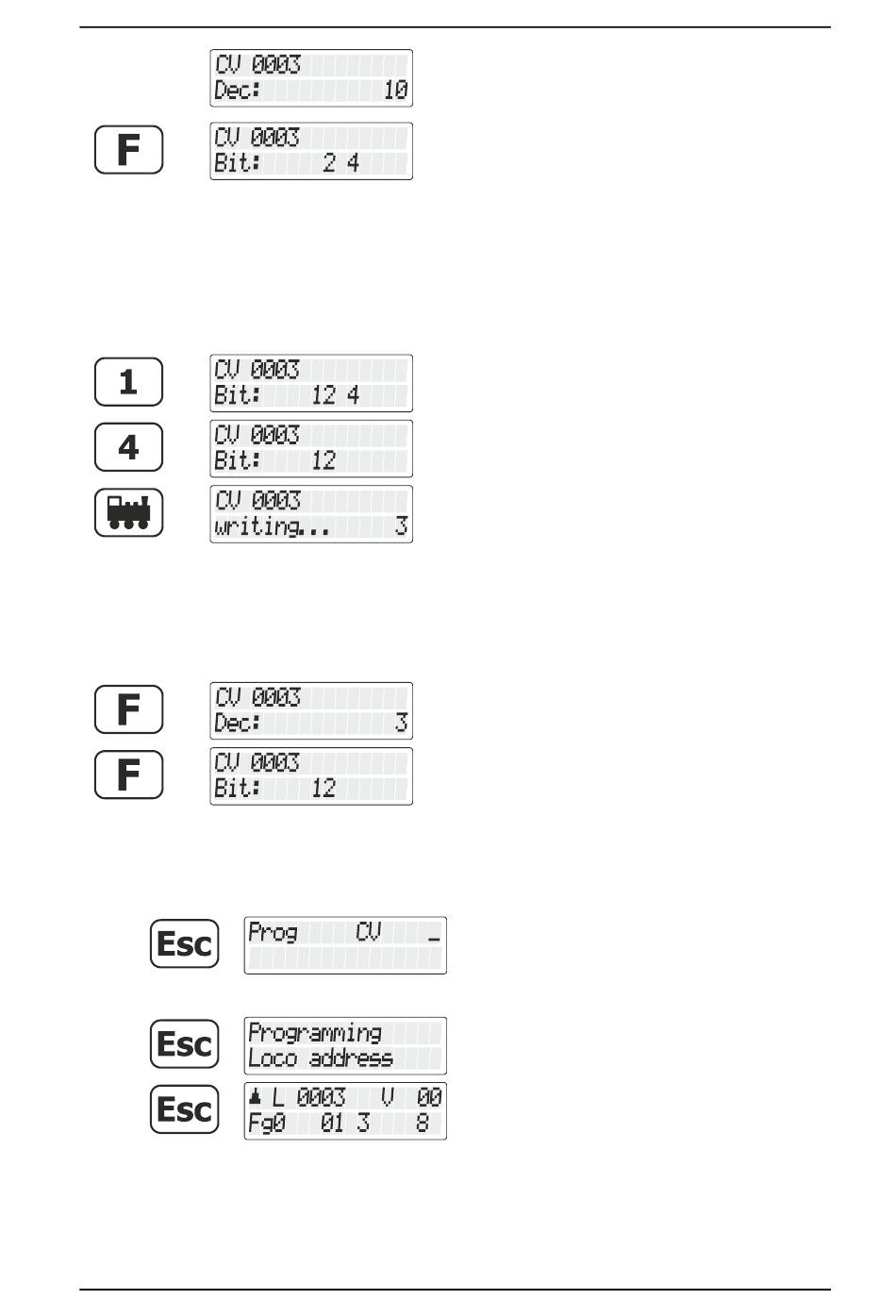

If you want to make changes, press the corresponding number keys.
In the following example, bit 1 is to be set additionally while bit 2 is to
be deleted:
You can change between the bitwise and the decimal display of the
value at any time:
Now, you have the following options:
a)
or
b)
After the result is displayed, change to the
bitwise (binary) display of the decimal
numeric value.
The bottom line of the display indicates which
bits are set. For decimal value 10 these are
bits 2 and 4 (counting starts at 1).
Press key '1' to set the corresponding bit 1.
Press key '4' to delete the corresponding bit
4.
Press
the
'locomotive'
programming.
Decimal display
Bitwise display
Select another CV
return to "Controlling locomotive".
Operating manual LH101
key
to
start
