First steps
In this section, you will learn:
to connect your LH101 to the LZ100/LZV100 command station
-
to operate your first train
-
The sections further below explain all the functions of the LH101 in
detail.

3.1 Connection and initial operation

The LH101 may be connected to the following components of the
Digital plus by Lenz
LZ100 or LZV100 command station from version 3.6 onwards.
As is the case with all XpressNET devices, the LH101 can be
disconnected and reconnected during operation. Use this advantage
of the XpressNet: Mount several LA152 adapter (art. no. 80152) on
your layout. This will enable you to use the LH101 right at the centre
of action.

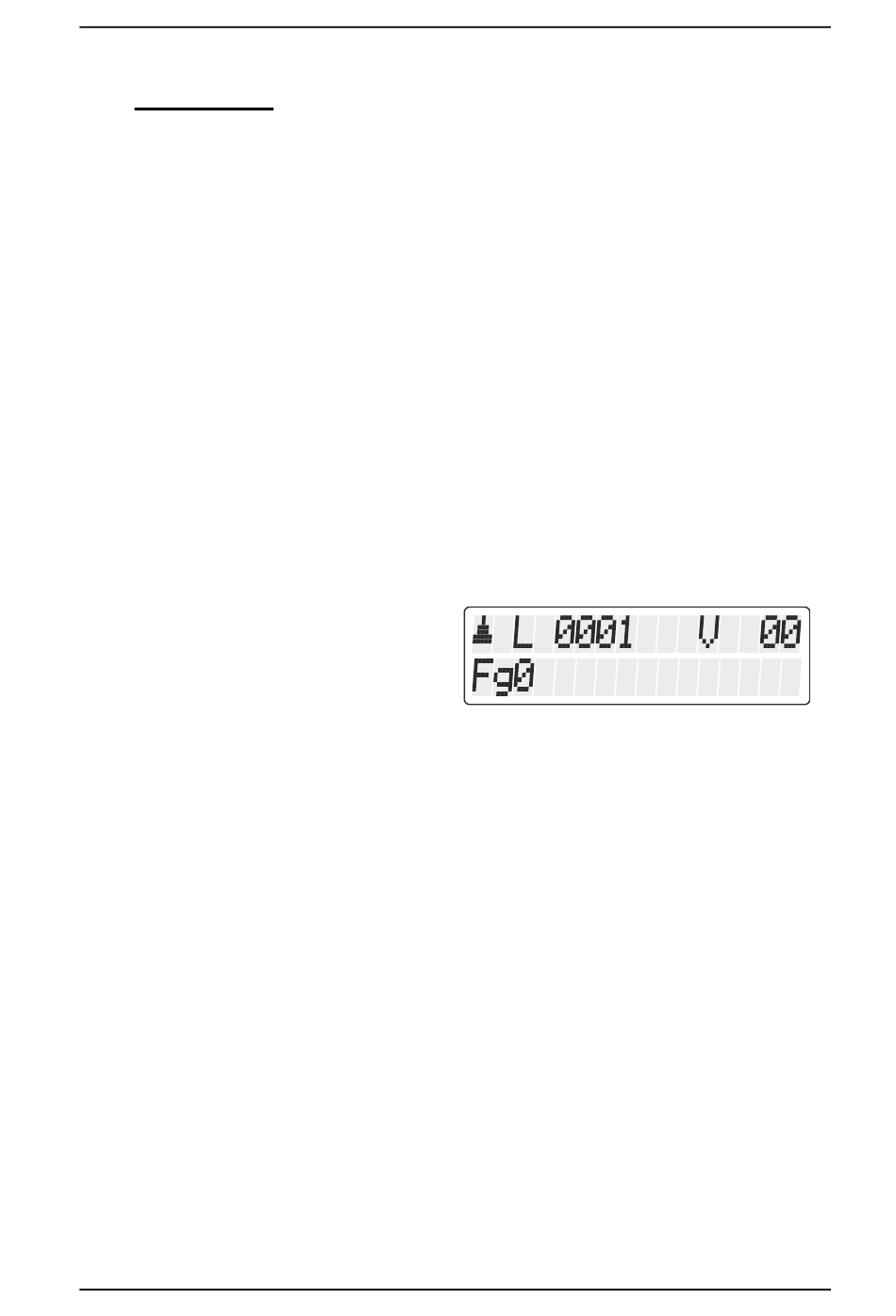

After connection, the manual
control will display the locomotive
address controlled last. During
initial operation, address 1 will be
displayed.
3.1.1

Connection to the LZ100/LZV100 command station

Plug the 5-pin DIN connector
into the 5-pin DIN socket at the back of your LZ100/LZV100
-
or, if you have already installed an XpressNET (XBUS) wiring on
your layout,
into a LA152 adapter.
-
3.1.2

Setting the XpressNET address

All input devices connected to the XpressNet (XBUS) must have their
own unique device address for the information exchange with the
command station to function correctly. You must therefore make sure
that all connected devices have different device addresses.
Depending on the command station used, up to 31 devices may be
connected to the XpressNet. Ex-factory, each LH101 manual
®
system:
