Scope Of This Manual; Model Identification; Typical Application Examples; Application 1 - Rotex RKHBRD011AAV1 Manuel D'installation

Room thermostat (option)
An optional room thermostat RKRTR or RKRTW can be connected to
the indoor unit.
Refer to the room thermostat installation manual for further details.
If this option is installed it is not possible to use the remote
controller thermostat function.
Digital I/O PCB (option)
An optional EKRP1HBA digital I/O PCB can be connected to the
indoor unit and be used to remotely monitor your system. This
address card offers 3 voltage free outputs.
Refer to the operation manual of the indoor unit and to the digital I/O
PCB installation manual for more information.
Refer to the wiring diagram or connection diagram for connecting this
PCB to the unit.
Demand PCB (option)
An optional RKRP1AHTA demand PCB can be connected to the
indoor unit. This PCB is needed when the Rotex room thermostat
RKRTR or RKRTW is installed or when multiple set point control is
used, and provides the communication with the indoor unit.
Refer to the demand PCB installation manual for further details.
Refer to the wiring diagram or connection diagram for connecting this
PCB to the unit.

Scope of this manual

This installation manual describes the procedures for handling,
installing and connecting all RKHBRD indoor unit models.
NOTE Installation of the RRRQ heat pump outdoor is
described in the outdoor unit installation manual.
Operation of the indoor unit is described in the indoor
unit operation manual.
Model identification
Indoor unit
RK HBR D 016 AA
Indication of heating capacity (kW)
Refrigerant type R134a
Hydro box - high temperature heating only
Rotex kit
(a) For exact values, refer to "Unit specifications" on page 34.
Installation manual
2
V1
V1 = 1N~, 220-240 V, 50 Hz
Y1 = 3N~, 380-415 V, 50 Hz
Series
(a)

Typical application examples

The application examples given below are for illustration purposes
only.

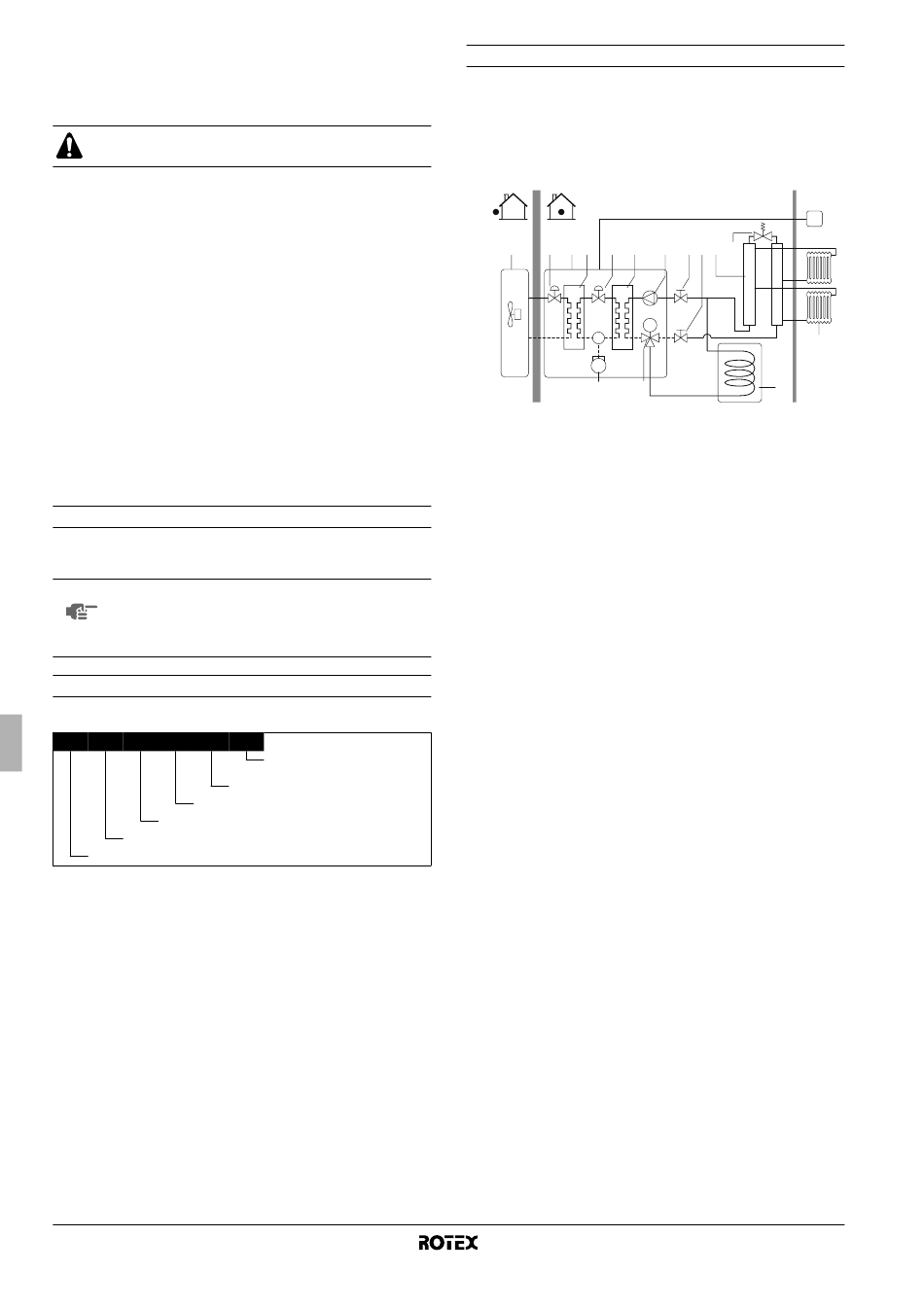

Application 1

Space heating and domestic hot water heating with a single remote
controller installed in the living room.
1 12 2 3 12 4
5 8
1 Outdoor unit
2 Indoor unit
3 Refrigerant heat exchanger
4 Water heat exchanger
5 Compressor
6 Pump
7 Shut-off valve
8 Motorized 3-way valve
(optional)
9 Domestic hot water tank
(optional)
The remote controller gives immediate feedback to the indoor unit
and by doing so it matches in a smart way the unit performance to
the demanded space heating requirements. In this way there is no
frequent start/stop of the unit or there are no too big temperature
fluctuations in the to be heated rooms. This remote controller has
also a smart logic functionality which controls the combined space
heating and domestic hot water demand (e.g. if room temperature
drops more than 3°C during domestic hot water operation, the unit
will automatically switch back to space heating). There is no remote
controller near the unit. During service maintenance an additional
remote controller can be connected by a service person.
Indoor unit for air to water heat pump system
A B
C1
6 7 7 10 13
M
11
9
10 Collector (field supply)
11 Radiator (field supply)
12 Electronic expansion
valve
13 By-pass valve (field
supply)
C1 Remote controller
A Installation place
B Living room
RKHBRD011~016AAV1+Y1
4PW55786-1
