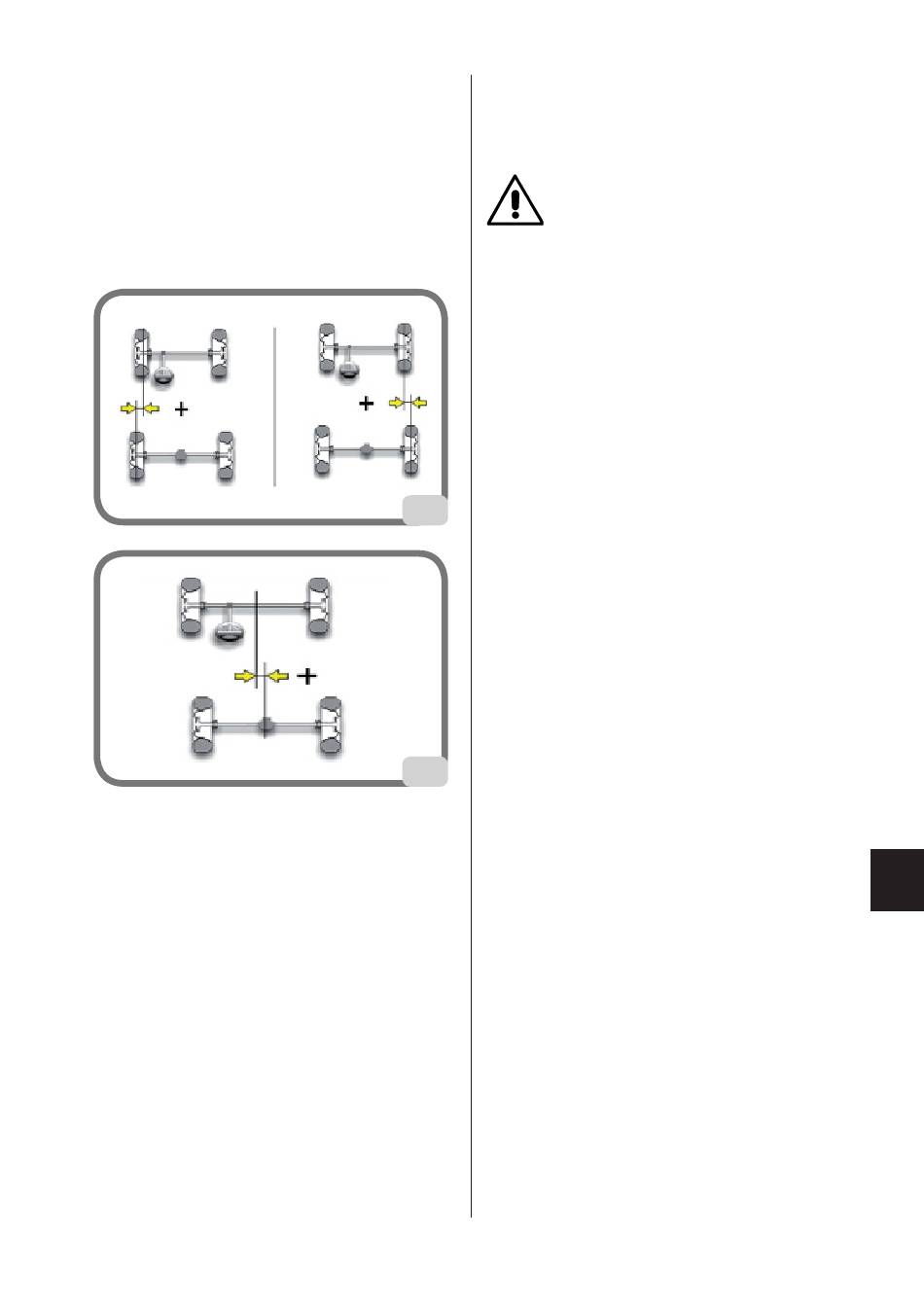

The units of measurement of side offset are
the degree or the millimetre, only if the wheel
base is known.
12) Axle offset.
Angle formed by the line bisecting the track differ-
ence angle and the vehicle's thrust axis (Fig. 21).
The units of measurement of axle offset are the
degree or the millimetre, only if the wheel base
is known.
Operator's manual R.E.M.O. COMPACT
MAIN WORKING
ELEMENTS OF THE
WARNING
Get to know your machine. The best way to
prevent accidents and obtain top performance
from the machine is to ensure that all operators
know how the machine works.
Learn the function and location of all commands.
Carefully check that all the commands on the
machine are working properly.
To avoid accidents and injury, the machine must
be installed properly, correctly operated and
regularly serviced.
- Monitor: shows the working screens with
20
the diagrams of the angles measured; the
operating commands are in the bottom part.
- Keypad: used to select the commands avail-
able and enter alphanumerical data.
- The ENTER key recalls the command se-
lected by the arrow keys.
The ESC key returns the programme to the
previous step.
- Personal Computer: contains and executes
the vehicle wheel alignment program. Also
contains the wheel aligner control electron-
ics.
21
- Sim Card: this card enables the aligner to
work.
- Power supply plug.
- Electrical cabinet.
MACHINE

Central unit
