System Operation

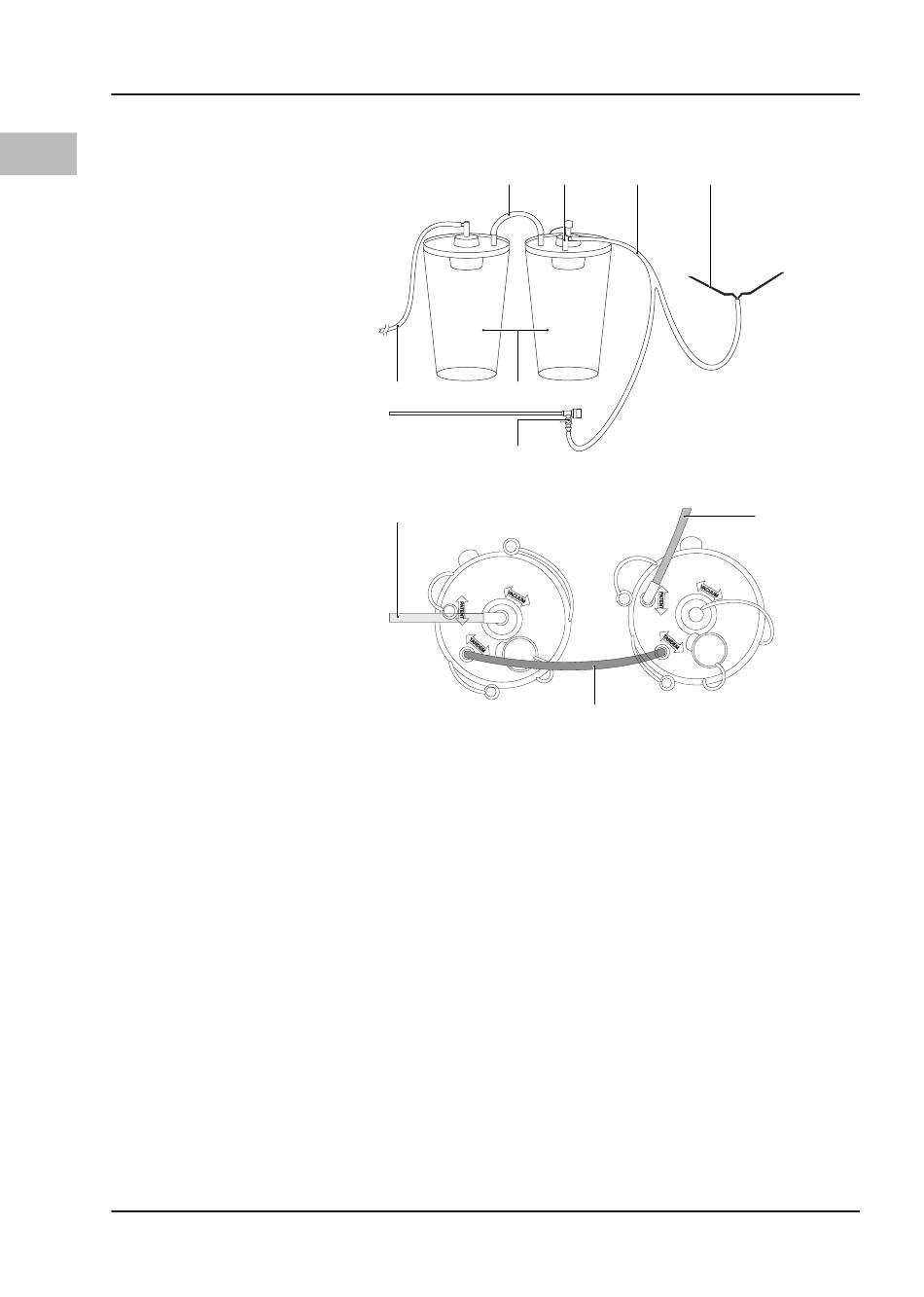

Fig. 5–9 Outflow tube set
en
(1)
To low vacuum port (white)
(2) Container
(3) Connecting tube
(4) Patient port
(5) Outflow tube set
(6) Drape
(7) Removable outflow channel or
hysteroscope outflow sheath
Luer lock
34 / 412
(3)
(1) (2)
(7)
(1)
Using low vacuum configuration of Fig. Outflow tube set [} 34], connect outflow
tube set (Y-tube) to patient port (4) of second container. Yellow flexible connector
attaches to drape (6). Yellow Luer lock of outflow tube set connects to Luer lock
(7) of removable outflow channel or hysteroscope outflow sheath.
(4) (5) (6)
(3)
(5)
