System Operation

Please make sure that the function test according to Chapter Function Test [} 42]
has been performed prior to each device use.
5.1

Front of Irrigation Pump Unit

(1) (2) (3) (4)
(17)
(16)
(15)
(13) (11)
(14) (12) (10)
Please familiarize yourself with the layout of the individual elements on the front
of the irrigation pump unit.
5.2

Rear of Irrigation Pump Unit

(1) (2) (3) (4) (5)
(12)
(11)
(10) (9) (8)
Please familiarize yourself with the layout of the individual elements at the rear of
the irrigation pump unit.
(5) (6)
(9)
(8)
(12)

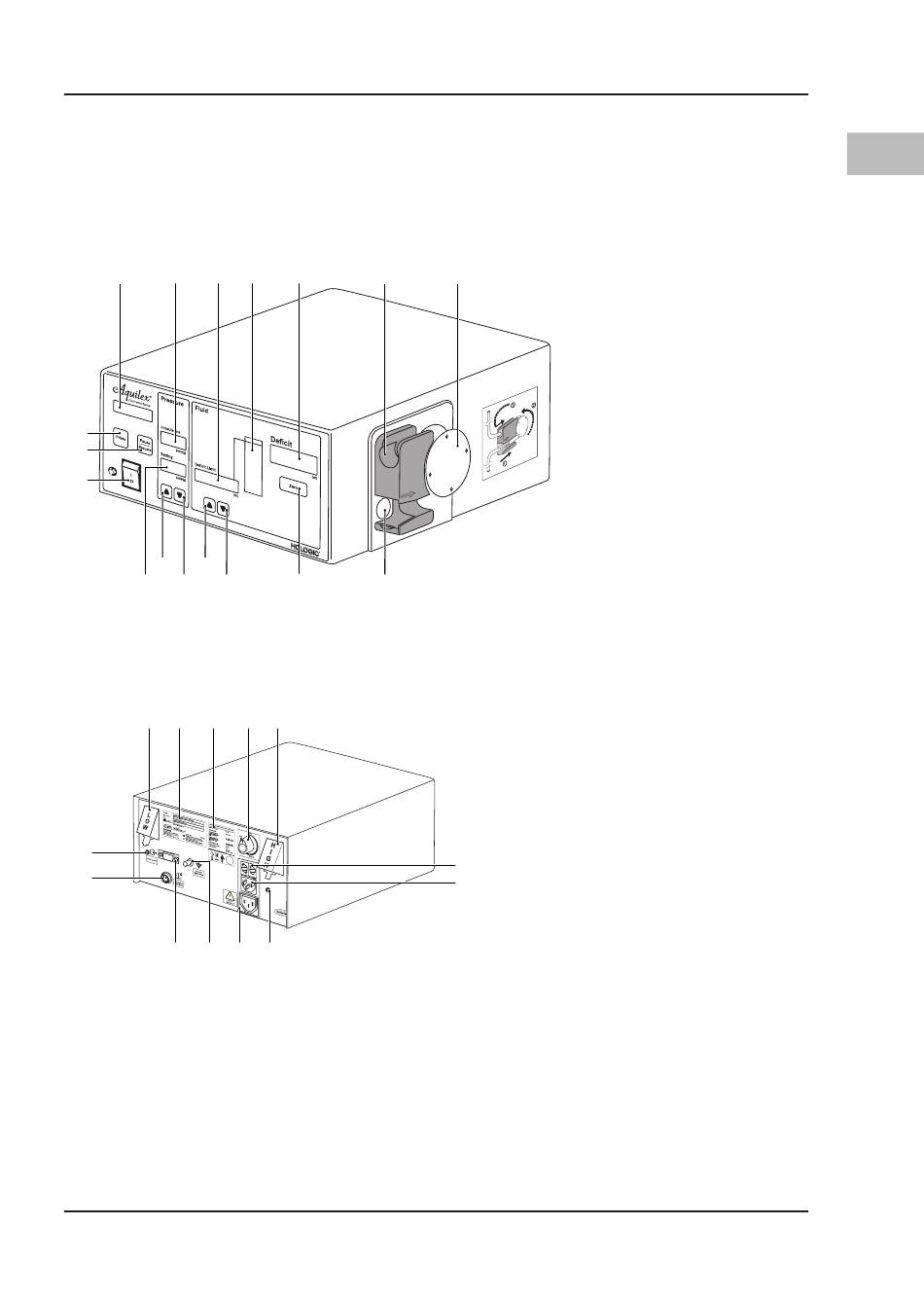

Fig. 5–1 Front of irrigation pump unit
(1)
Pump display
(7)
(2) Intrauterine pressure display
(3) Fluid deficit limit display
(4) Deficit meter
(5) Deficit display
(6) Inflow tube holder
(7) Roller wheel
(8) Pressure sensor
(9) Reset deficit button (Zero)
(10) Decrease deficit limit
(11) Increase deficit limit
(12) Decrease intrauterine pressure
setting
(13) Increase intrauterine pressure
setting
(14) Intrauterine pressure setting
display
(15) ON/OFF switch
(16) Pause/Resume button
(17) Prime button
Fig. 5–2 Rear of irrigation pump unit
(1)
Connection for low vacuum
(white)
(2) Product label
(3) Performance data of the device
(4) Adjustment controller for high
vacuum
(5) Connection for high vacuum
(green)
(6) Fuse holder(s)
(6)
(7) (7)
Power cord connection
(8) MyoSure® control unit power
connection
(9) Potential equalization connec-
tion
(10) Service interface
(11) Connection for scale
(12) Suction opening
