Inserting the Inflow Tube Set

(1)
(3)
(4)
(5)
(10)
(See Figure 5-9, Tube set elements) The inflow tube set consists of three tube sec-
tions, a Y-connector (4) and two bag spikes (2). The three tube sections are: roll-
er wheel section (6), inflow section (5), and hysteroscope section (8).The bag
spikes (2) are used to connect the tube sections to the bags.
The Luer lock connector (9) connects the hysteroscope tube with the hystero-
scope.
(2)
(6)
(8)
(9)
1. Inflow tube set - To be carried out by non-sterile nurse:
Open outer packaging of the inflow tube set.
A sterile nurse then removes the inner tube set package and opens it.
2. To be carried out by sterile nurse:
Keep the blue Luer lock connector (9) in the sterile area and hand the tube
end with the bag spikes (1) to the non-sterile nurse.
(2)
(6)
(7)
(8)
(9)
(1)
3
2
1
(3)
(5)
(7)
System Operation

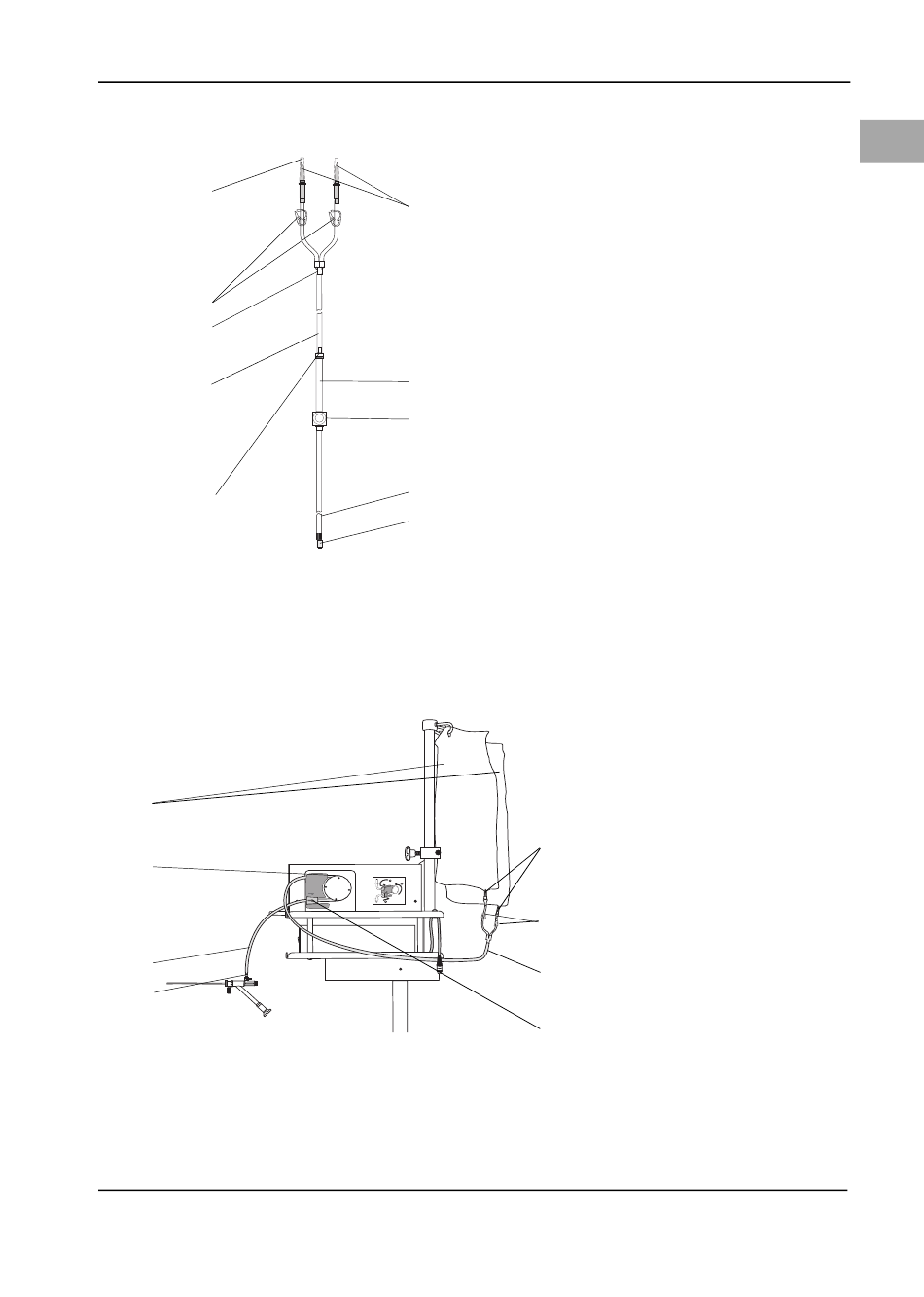

Figure 5-9 Tube set elements
Protective caps
(1)
(2) Bag spikes
(3) Tubing clamps
(4) Y-connector
(5) Inflow section
(6) Roller wheel section
(7) Pressure chamber with membrane
and RFID transponder
(8) Hysteroscope section
(9) Luer lock connector (blue)
(10) Roller wheel connector
Figure 5-10 Inserting the tube set
Bag spikes
(1)
(2)
Fluid bags
Bag clamps
(3)
Inflow tube
(5)
Roller wheel tube
(6)
Pressure chamber with mem-
(7)
brane and RFID transponder
Hysteroscope tube
(8)
Luer lock connector (blue)
(9)
Open outer packaging
Connect to hysteroscope
EN
21
