System Operation
en

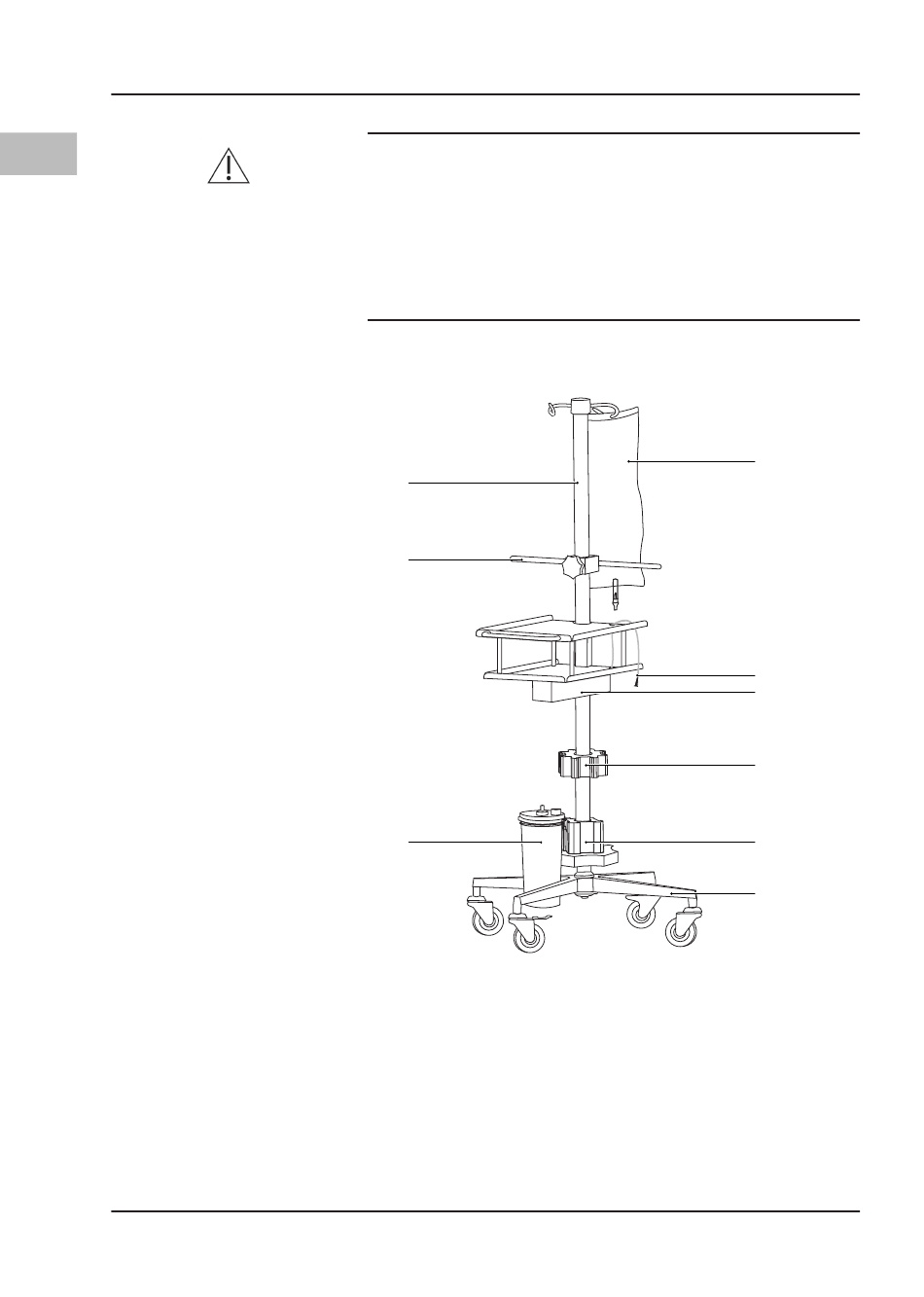

Fig. 5–3 Fluid monitoring unit (cart
with scale)
(1)
Fluid bag
(2) Container scale cable/connector
(3) Container scale
(4) Pole with bag hooks
(5) Bag deflector
(6) Container
(7)
Holder
(Serres, Medela, Baxter, Baxter
flex)
(8) Holder for lower container (Ab-
bott,
DeRoyal®)
(9) Roller wheel base
26 / 412
WARNING!
Additional equipment
Additional equipment connected to medical electrical devices must be demon-
strated to be compliant with their respective IEC or ISO standards (IEC 60601-1,
IEC 60950 or IEC 62368 for data processing equipment). Furthermore, all configura-
tions must comply with the normative requirements for medical systems (see sec-
tion 16 of the last valid edition of IEC 60601-1). Anyone who connects additional
devices to medical electrical equipment is a system configurator and as such is re-
sponsible for the system's compliance with the normative requirements for sys-
tems. Please contact the technical service if you have additional questions.
5.3
for upper container
Bemis®, Medi-Vac®,
The cart/scale consists of a weighing scale for the containers, a pole with hooks for
irrigation fluid bags, and a roller wheel base.
1.
2.
3.
4.

Cart/Scale

(4)
(5)
(6)
Remove the cart/scale from the cardboard shipping box.
Remove the pump and the power cords from the first cardboard box.
Loosen the handwheel (4) (Fig. Scale and pump connection [} 27]) and ex-
tend the pole to stop position. Extend the bag deflector to stop position. The
screw (5) (Fig. Scale and pump connection [} 27]) must be inserted into the
provided opening. Secure the bag scale with the handwheel.
Depending on the type of container used, attach the container rings (included
in the second box) to the upper (7) or lower (8) container holders (Fig. Fluid
monitoring unit (cart with scale) [} 26]).
(1)
(2)
(3)
(7)
(8)
(9)
