6.2

Flow Rate Test

The test setup is depicted in Fig. Flow rate test [} 43].
1.
Switch system on (see Chapter Turning On the Aquilex® System [} 31]).
2.
Insert tube set into pump and close clamps on the bags.
3.
Hang the fluid bags onto the fluid bag hooks.
4.
Insert spikes into the fluid bags and open clamps on the fluid bags.
5.
Insert hysteroscope tube into the measuring cup.
6.
Set intrauterine nominal pressure to 150 mmHg.
Press the Prime button
7.
8.
The roller wheel starts to rotate in order to remove the air from the tubes and
to carry out the automatic lumen calibration.
9.
When the automatic lumen calibration is completed, press Pause/Resume but-
ton.
10. Empty the measuring cup.
11. Place hysteroscope tube back into the measuring cup.
12. Press the Pause/Resume button.
13. Press Pause/Resume button after one minute. The measuring cup should con-
tain approximately 800 ml ± 80 ml of fluid.
Enter the results into the Test log [}  62] in Section Appendix [}  62]. The test is
successfully completed when the results are within the permissible tolerance limit.
Function Test

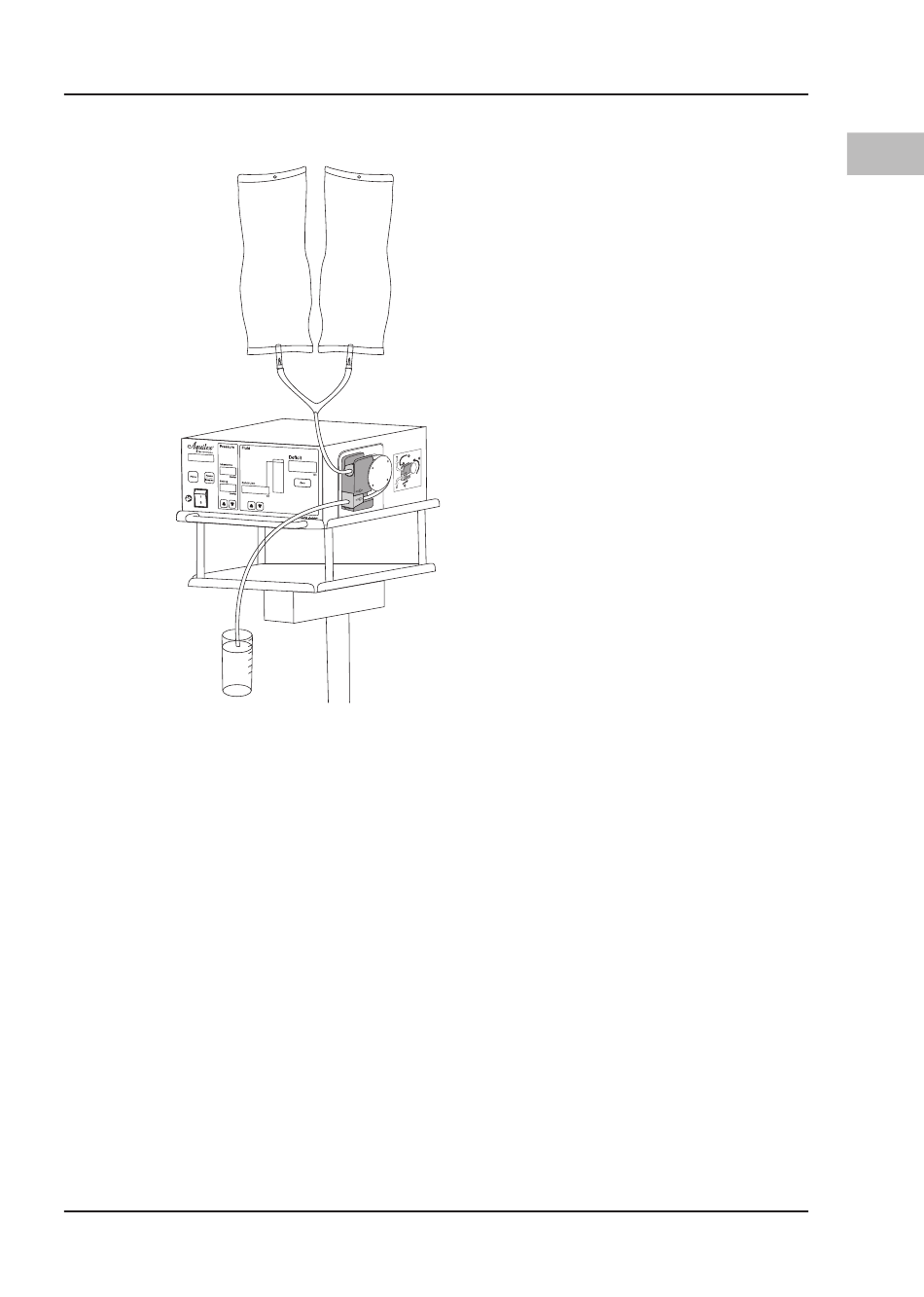

Fig. 6–1  Flow rate test
Testing the flow rate
en
43 / 412
