System Operation
en

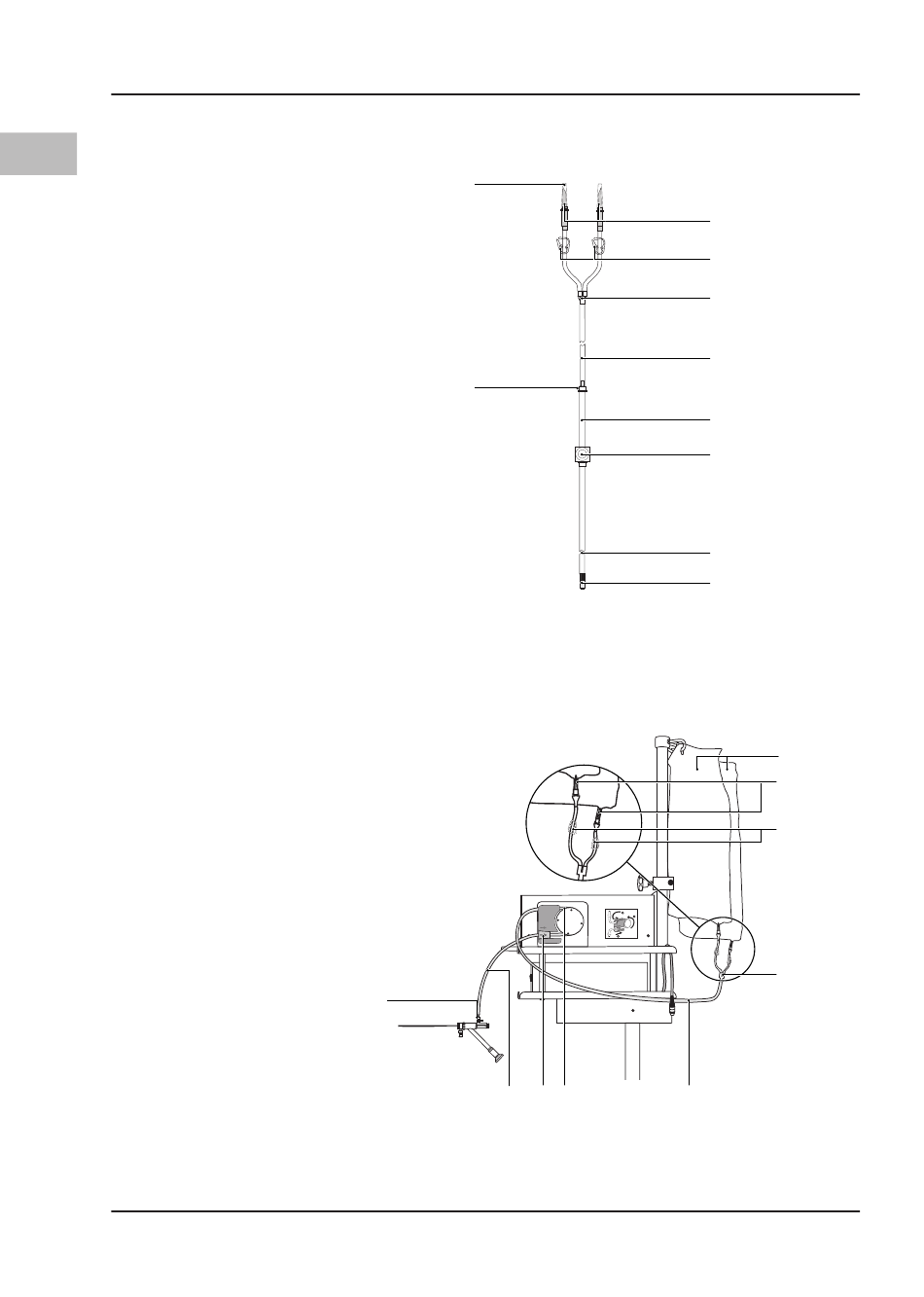

Fig. 5–11  Tube set elements
(1)
Protective caps
(2) Spikes
(3) Clamps
(4) Y-connector
(5) Inflow tube
(6) Roller wheel tube
(7)
Pressure chamber with mem-
brane and RFID transponder
(8) Hysteroscope tube
(9) Luer lock connector (blue)
(10) Roller wheel connector
Fig. 5–12  Inserting the tube set
(1)
Fluid bags
(2) Bag spikes
(3) Bag clamps
(4) Y-connector
(5) Inflow tube
(6) Roller wheel tube
(7)
Pressure chamber with mem-
brane and RFID transponder
(8) Hysteroscope tube
(9) Luer lock connector (blue)
Open outer packaging
36 / 412
5.9

Inserting the Inflow Tube Set

(1)
(10)
(See Fig. Tube set elements [}  36]) The inflow tube set consists of three tubes, a
Luer lock connector (blue) (9) and two spikes (2). The three tubes are: Roller wheel
tube (6), inflow tube (5), and hysteroscope tube (8). The spikes (2) are used to
connect the tubes to the fluid bags.
The Luer lock connector (9) connects the hysteroscope tube with the hysteroscope.
3
2
1
(9)
(8)
(7)
• To be carried out by non-sterile nurse:
– Ensure system is turned on.
– Open outer packaging of the inflow tube set.
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
3
2
1
(6)
(5)
(1)
(2)
(3)
(4)
