Operation
4.10

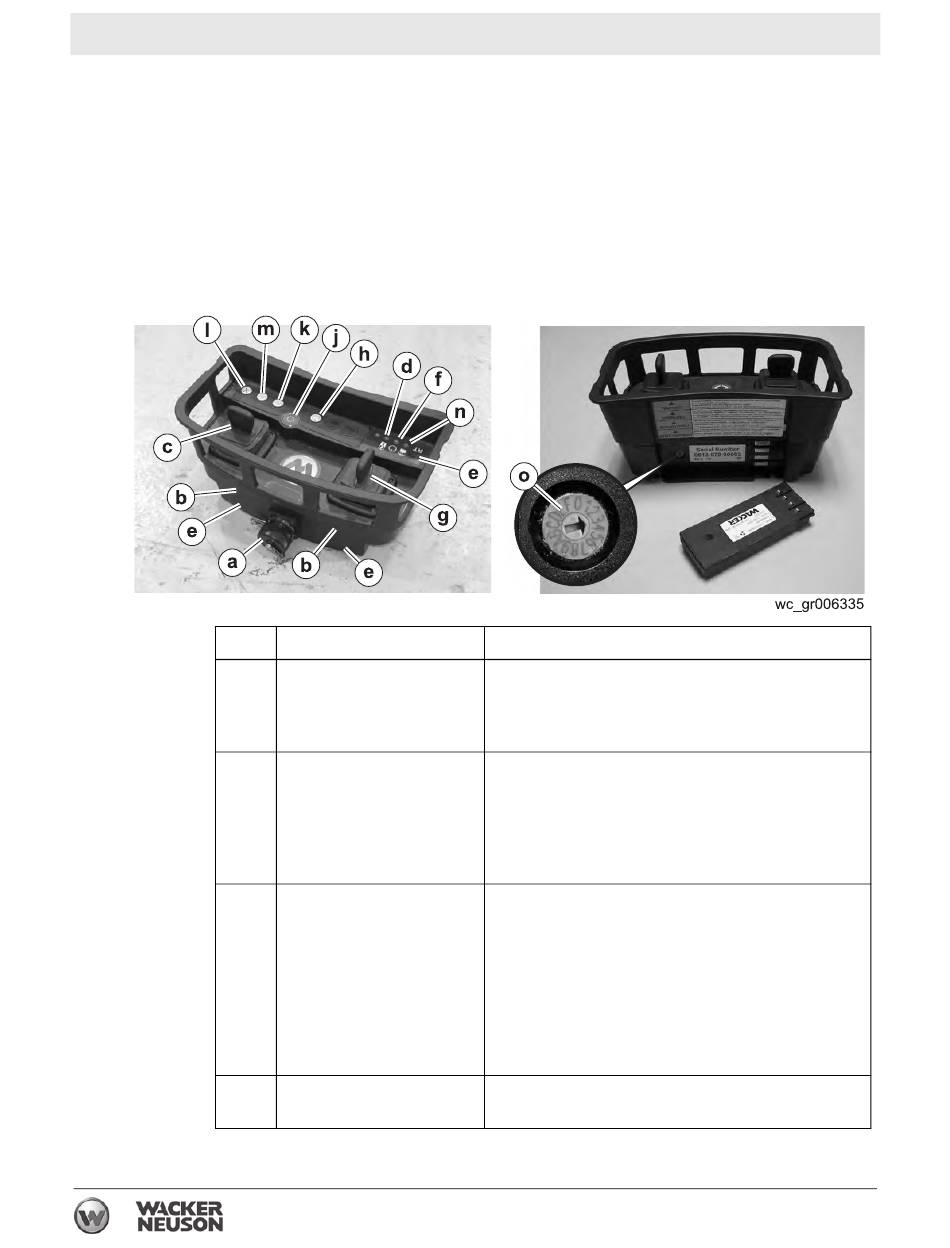

SmartControl™ SC-3 Transmitter
■ Wireless control
■ Line of sight operation
■ 16 control channels
■ Clear transmissions into direct sunlight, up to 130,000 LUX
■ Maximum range: 20m (65 ft.)
■ Transmitting time (full charge): 12 hours
■ Recharge time (full charge): 2-1/2 hours
■ Battery: Ni-MH (nickel metal hydride) battery pack
Ref
a
b
c
g
d
Component
Cable connector
Infra-red emitting diodes
Forward/reverse (travel)
joystick
Left/right (steering)
joystick
Battery charge indicator
Description
The cable connector provides a connection point
for the transmitter cord. When the transmitter cord
is connected, the transmitter battery recharges
while the engine is running.
The diodes—located on all sides of the
transmitter—are used to transmit the coded infra-
red signal to the receiving eyes on the machine.
Keep the transmitter clean to ensure maximum
signal strength.
The right joystick (c) controls forward/reverse
motion.
The left joystick (g) controls left/right motion.
Move the joysticks in the direction desired. The
roller will change to high speed whenever the
travel joystick is placed fully in the forward or fully
in the reverse position.
This LED illuminates green while the battery is
charging.
