Troubleshooting

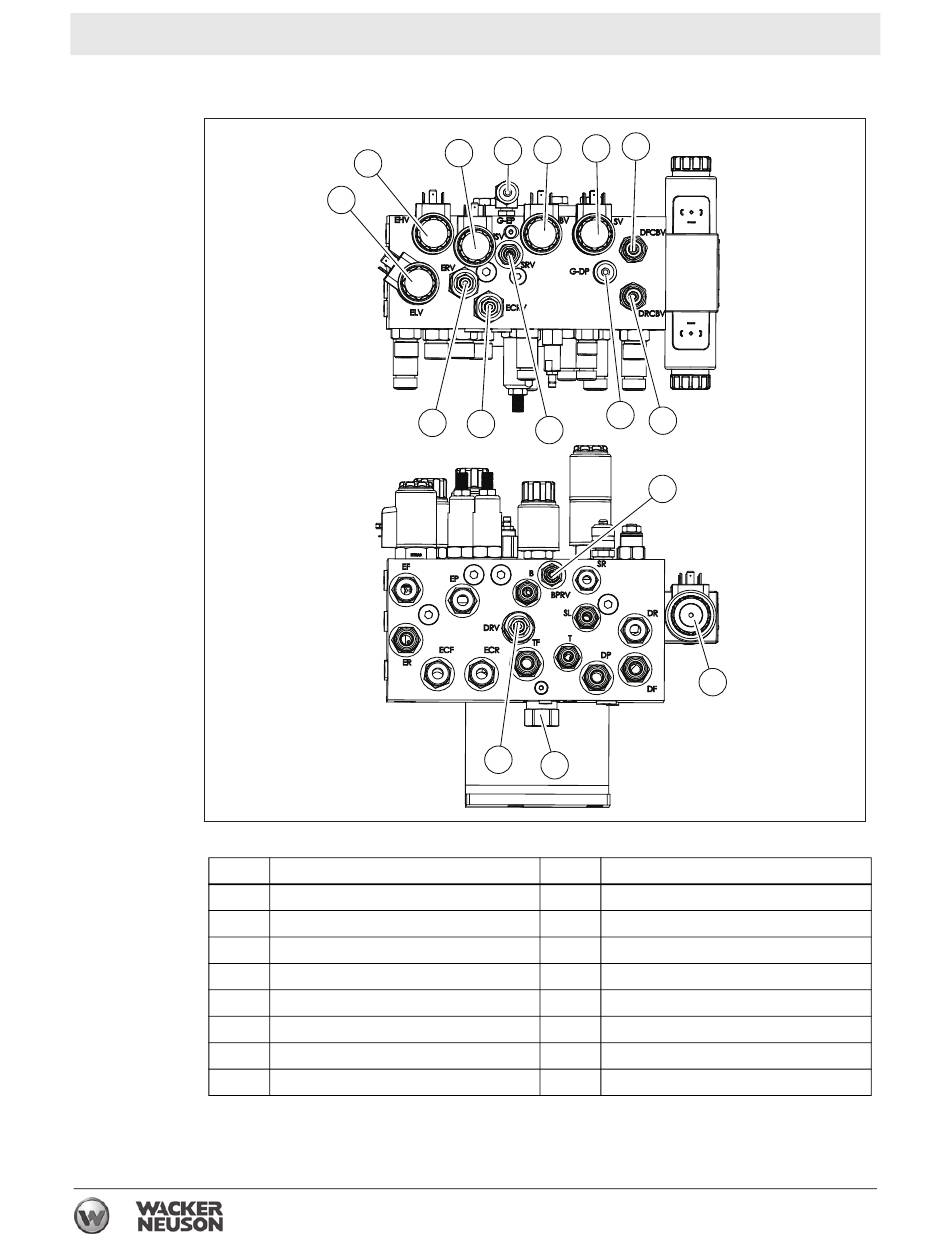

10.2 Hydraulic Manifold
Ref.
1
2
3
4
5
6
7
8
3
2
1
5
Description
Exciter low valve
Exciter high valve
High speed travel valve
Exciter central relief valve
Exciter relief valve
Drive relief valve
Brake valve
Brake pressure reducing valve
13
12
7
16
15
4
9
6
10
Ref. Description
9 Steering relief valve
10 Steering bypass valve
11 Drive valve
12 Steering valve
13 Drive front counterbalance valve
14 Drive rear counterbalance valve
15 Drive test port
16 Exciter test port
116
RT / RTx
14
8
11
