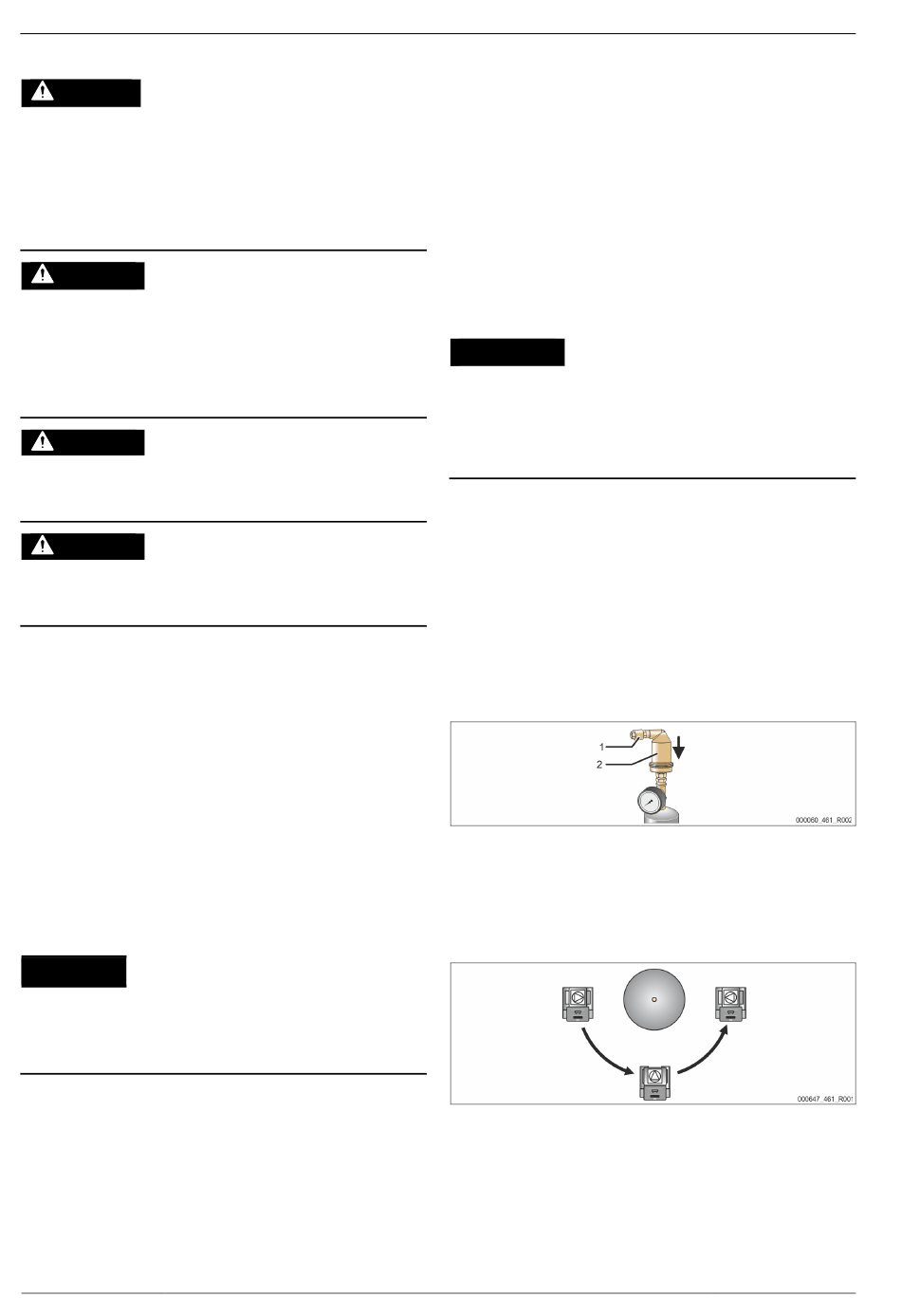

Installation
6
Installation
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the supply cable to the device is disconnected and secured
against being switched back on.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical locally
applicable electrical engineering regulations.
CAUTION
Risk of injury due to pressurised liquid
If installation, disassembly or maintenance work is not carried out correctly,
there is a risk of burns and other injuries at the connection points, if
pressurised hot water or hot steam suddenly escapes.
•
Ensure proper installation, disassembly or maintenance work.
•
Ensure that the system is de-pressurised and cooled down before
performing installation,disassemblyl or maintenance work at the
connection points.
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•
Wear protective gloves.
•
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to falls or bumps
Bruising from falls or bumps on system components during installation.
•
Wear personal protective equipment (helmet, protective clothing, gloves,
safety boots).
Note!
Confirm that installation and start-up have been carried out correctly
using the installation, start-up and maintenance certificate. This action is
a prerequisite for the making of warranty claims.
–
Have the Reflex Customer Service carry out commissioning and the
annual maintenance.
6.1.1
Incoming inspection
The device is carefully inspected and packed prior to shipping. Damages during
transport cannot be excluded.
Proceed as follows:
1.
Upon receipt of the goods, check the shipment for
•
completeness and
•
possible transport damage.
2.
Document any damage.
3.
ontact the forwarding agent to register your complaint.
6.2
Preparatory work
ATTENTION
Damage to property caused by earthquakes
No transverse and longitudinal acceleration forces were allowed for when
dimensioning the product.
•
If it is possible that loads of this type might occur, a special proof must be
provided and agreed.
Condition of the delivered device:
•
Check all screw connections of the device for tight seating. Tighten the
screws as necessary.
Preparing the device installation:
•
No access by unauthorised personnel.
•
Frost-free, well-ventilated room.
–
Room temperature 0 °C to 45 °C (32 °F to 113 °F).
•
Level, stable flooring.
–
Ensure sufficient bearing strength of the flooring before filling the tanks.
–
Ensure that the control unit and the tanks are installed on the same
level.
34 — English
•
Filling and dewatering option.
–
Provide a DN 15 filling connection according to DIN 1988 - 100 and En
1717.
–
Provide an optional cold water inlet.
–
Prepare a drain for the drain water.
•
Electric connection 230 V~, 50/60 Hz, 16 A with upstream ELCB: Tripping
current 0.03 A.
•
Use only approved transport and lifting equipment.
–
The load fastening points at the tanks must be used only as installation
resources.
Note!
Comply with the Reflex planning directive.
–
During planning, take into account that the working range of the
device must be between the "pa" supply pressure and the "pe" final
pressure in the working range of the pressure maintenance system.
6.3
Execution
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes or system
equipment.
•
Pipelines must be connected so there are no residual forces and torques
and must be routed so they are free from vibrations.
•
If necessary, provide support structures for the pipelines or equipment.
•
If you have any questions, please contact Reflex After Sales & Service.
For installation, proceed as follows:
•
Position the device.
•
Complete the primary tank and the optional secondary tanks.
•
Create the water-side connections of the control unit to the system.
•
Create the interfaces according to the terminal plan.
•
Install the water connections between optional secondary tanks to each other
and to the primary tank.
Notice!
For installation, note the operability of the valves and the inlet options of
the connecting lines.
6.3.1
Fitting the add-on components for the vacuum spray pipe
Fit the "DV" degassing valve with pre-assembled check valve on the "VT" vacuum
spray pipe.
For optimum reliability, we recommend braided sealing tape (PTFE) or pipe
sealing cord (polyamide ww. PTFE) as a seal.
Check all screw fittings of the device for proper seating.
6.3.2
Positioning
Specify the position of the control unit and primary tank:
•
Servimat:
The control unit can be installed on either side or in front of the primary tank.
The distance of the control unit to the primary tank results from the
connection set supplied.
Servimat M/L — 25.07.2025
