5.7

Tubing Overview

Three different tube sets are necessary to operate the system. The following ta-
ble lists each type of tube set and its application.
Part Number Description
AQL-110 Aquilex Fluid Control System Inflow Tube Set
AQL-111 Aquilex Fluid Control System Outflow Tube Set
AQL-112 Complete tube set (Inflow and Outflow) disposable, sterile
AQL-114 Aquilex Fluid Control System High and Low Vacuum Tube
Set: re-usable, non-sterile
5.8

Connecting the Outflow Tubing

CAUTION!
When using the Aquilex System with MyoSure® or other morcellation systems,
the combination of low set pressures and high vacuum pressures may result in a
significant loss of intrauterine distension pressure which has the potential to af-
fect the visibility of the surgical field. Conversely, when employing high disten-
sion pressures, the deactivation of the MyoSure® or other morcellator system
can lead to pressure spikes that can exceed 150 mmHg. These situations may oc-
cur for a short time as the system automatically adjusts the flow rate to return
to the set intrauterine pressure.
(3)
(1)
(2)
(7)
(1)
Using Low Vacuum configuration of Figure 5-4, connect outflow tubing (Y-tube)
to patient port (4) of second canister. Yellow flexible connector attaches to
drape (6). Yellow luer fitting connects to stopcock (7) of Removable Outflow
Table 5-1
(4)
(5)
(5)
(3)

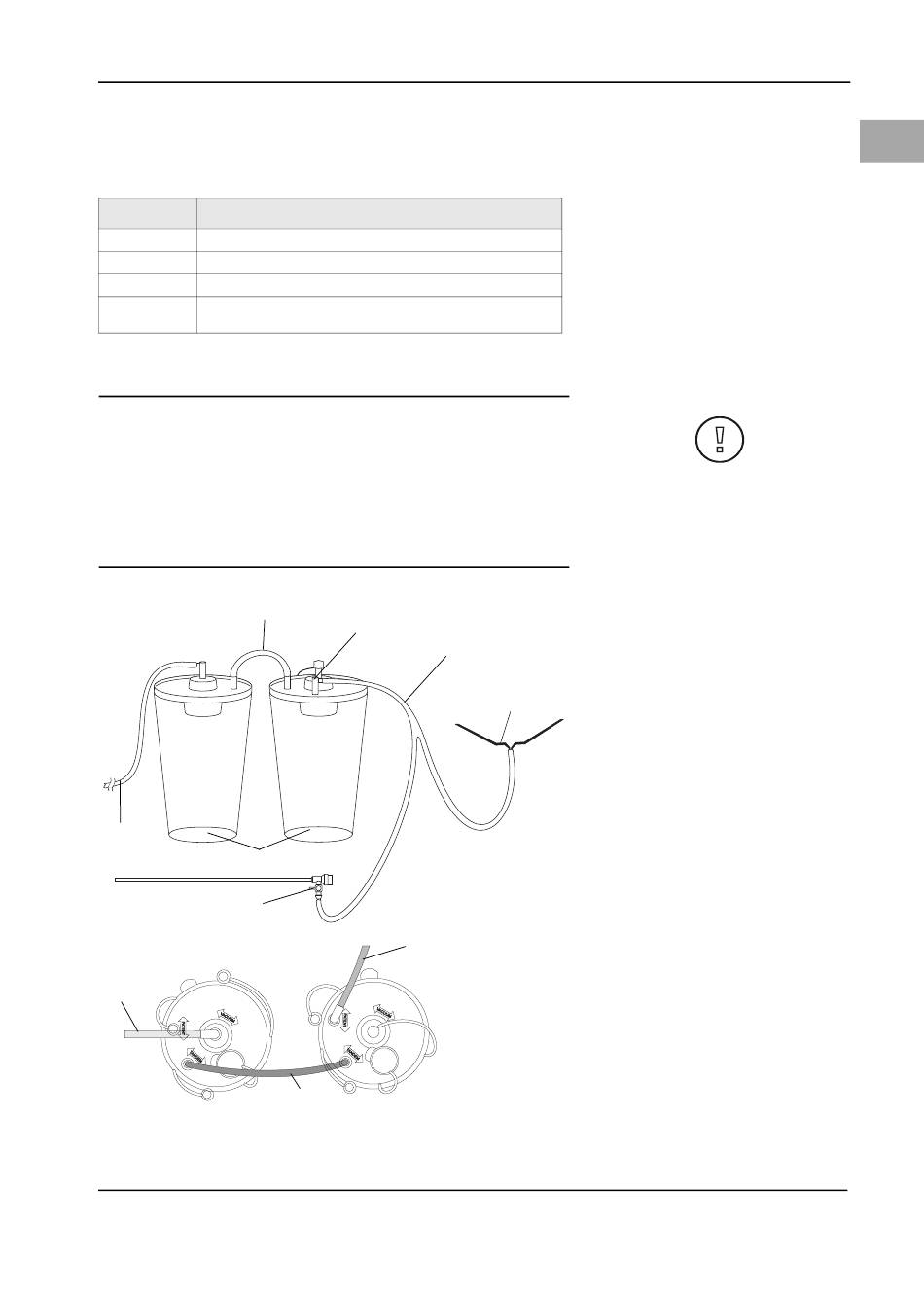

Figure 5-7 Outflow Tubing
To low vacuum port (white)
(1)
(2) Canisters
(3) Tandem tube
(6) (4) Patient port
(5) Outflow tube set
(6) Drape
(7) Removable Outflow Channel (Myo-
Sure®) or hysteroscope outflow
sheath stopcock
