System Operation
EN

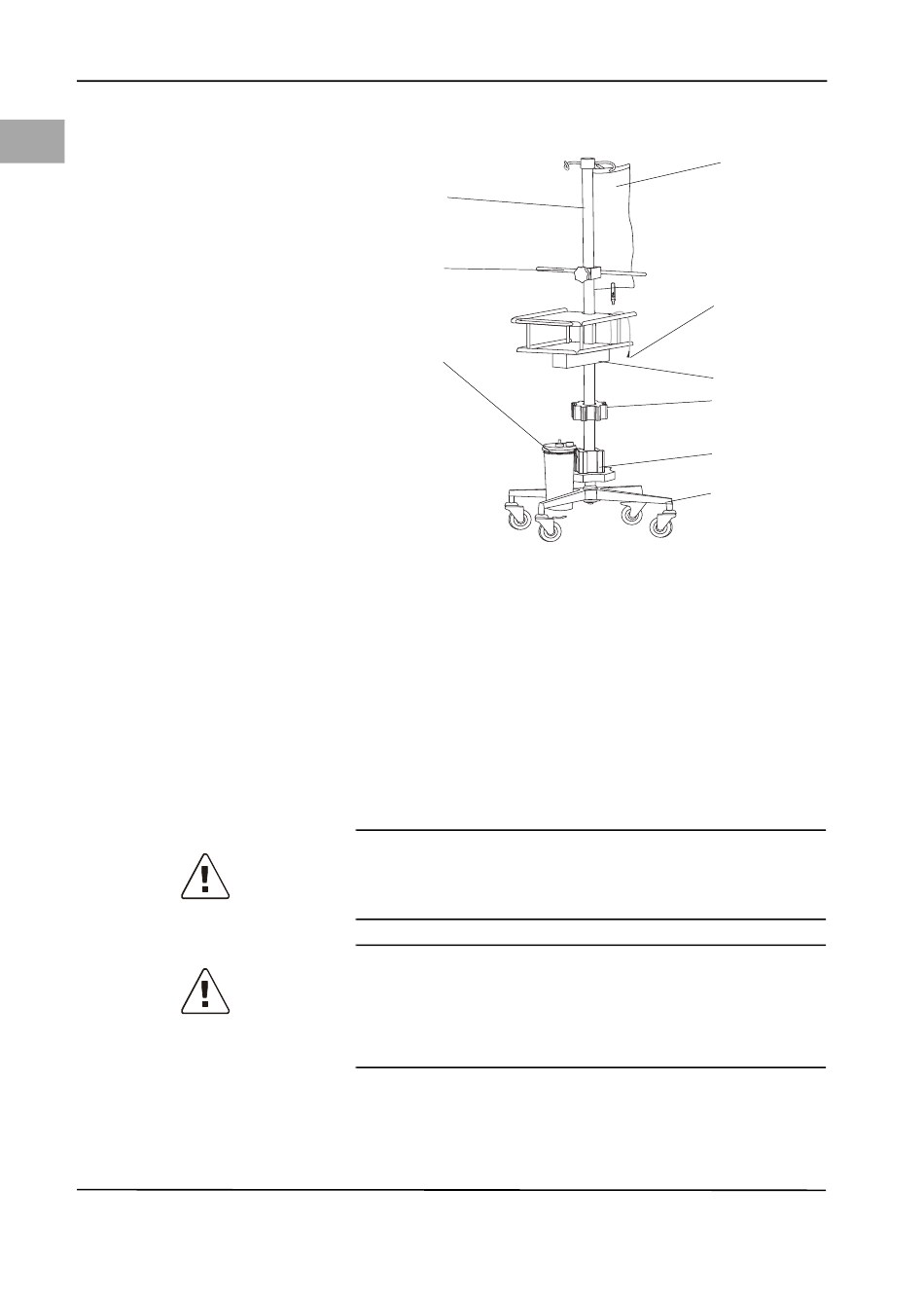

Figure 5-3 Cart/Scale
Fluid bag
(1)
Scale cable
(2)
Scale
(3)
Pole with bag hooks
(4)
Bag deflector
(5)
Canister
(6)
Upper canister holder (Serres,
(7)
Medela, Baxter, Baxter flex)
(8)
Lower canister holder (Abbott,
Bemis, Medi-Vac, DeRoyal)
Roller base
(9)
14
5.3
Cart/scale
(4)
(5)
(6)
The cart/scale consists of a weighing scale for the canisters, a pole with hooks for
irrigation fluid bags, and a roller base.
1. Remove the cart/scale from the cardboard shipper box.
2. Extend the pole to stop position.
3. Extend the bag deflector to stop position.
4. Remove the pump and the power cords from the first cardboard box.
5. Install canister rings (included in the second box) on upper (7) or lower (8)
canister holders, in accordance with type of canister.
6. Connect the wall power cord to the male outlet at the rear of the pump ((7)
Figure 5-2, Rear of Pump, page 13) and a grounded safety wall outlet.
7. Connect the scale to the pump by connecting the scale cable ((2) Figure 5-3,
Cart/Scale) to the scale connection ((11) Figure 5-2, Rear of Pump).
8. Use the enclosed MyoSure Control Unit power cord to connect the pump ((8)
Figure 5-2, Rear of Pump) with the MyoSure® Control Unit.
WARNING!
Scale error
Ensure that nothing weighs down the scale during system start-up. Doing so
may result in an inaccurate deficit value.
WARNING!
Fluid deficit
The fluid left in the patient must be monitored. The deficit is the total amount of
fluid left in the patient or unaccounted for otherwise. Take notice of the mea-
surement tolerance of the system (see Chapter 10, Technical Data). Estimating
the fluid volume remaining in the patient is the physician's responsibility.
(1)
(2)
(3)
(7)
(8)
(9)
